Horns Fail To Sound - Diagnostic Procedure

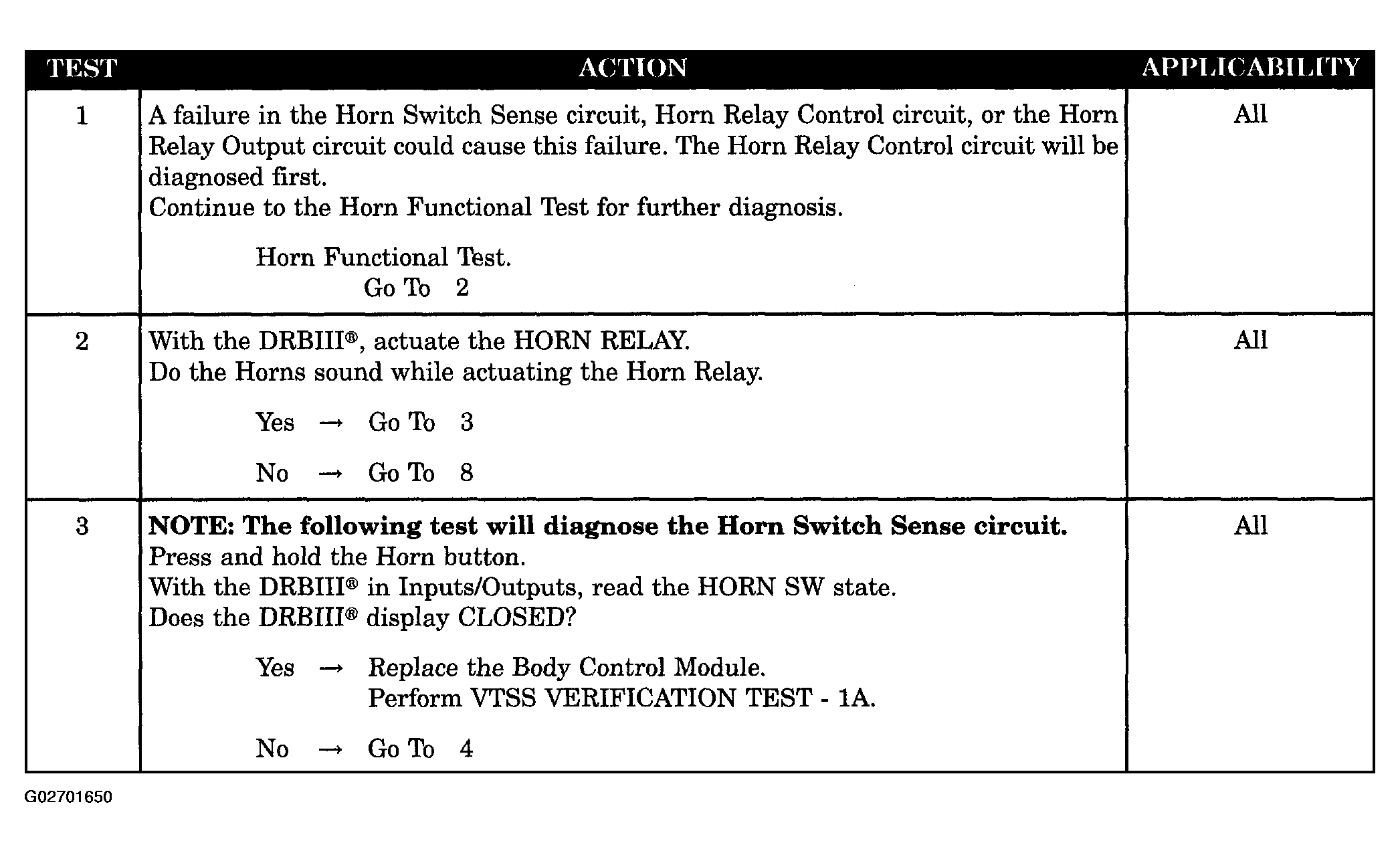

Fig 1: Horns Fail To Sound - Diagnostic Procedure (1 Of 4)
G02701650Courtesy of DAIMLERCHRYSLER CORP.

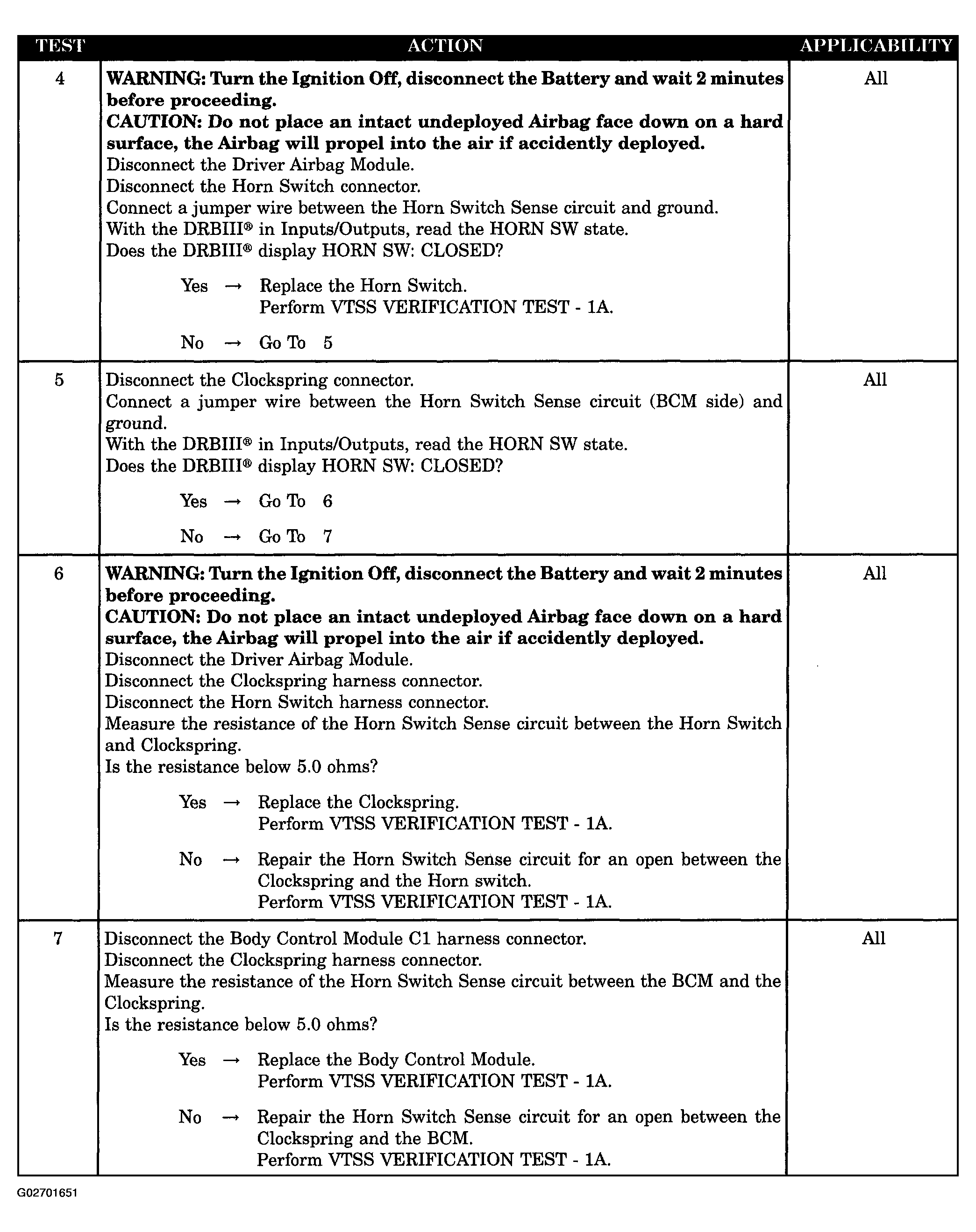

Fig 2: Horns Fail To Sound - Diagnostic Procedure (2 Of 4)
G02701651Courtesy of DAIMLERCHRYSLER CORP.

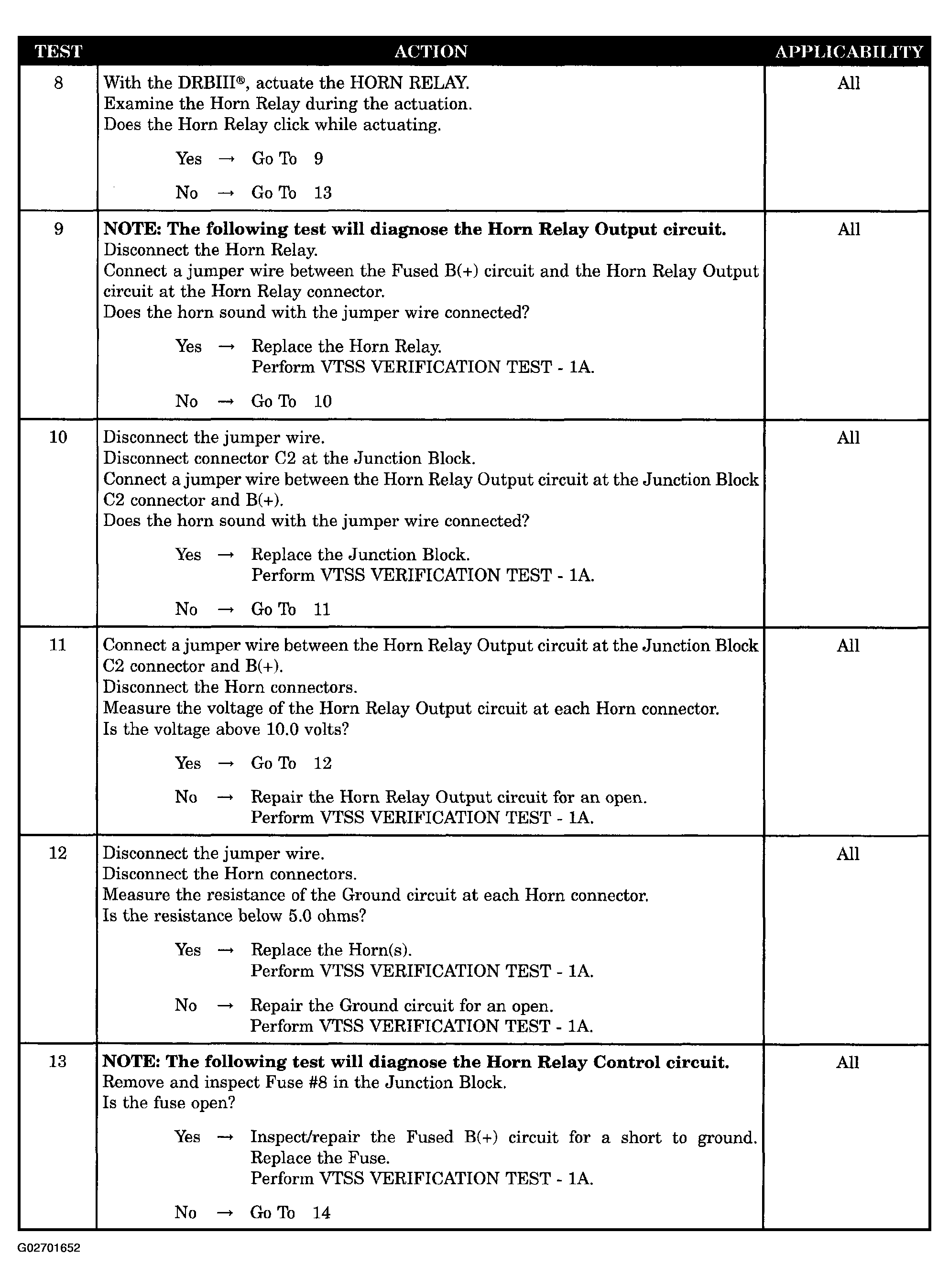

Fig 3: Horns Fail To Sound - Diagnostic Procedure (3 Of 4)
G02701652Courtesy of DAIMLERCHRYSLER CORP.

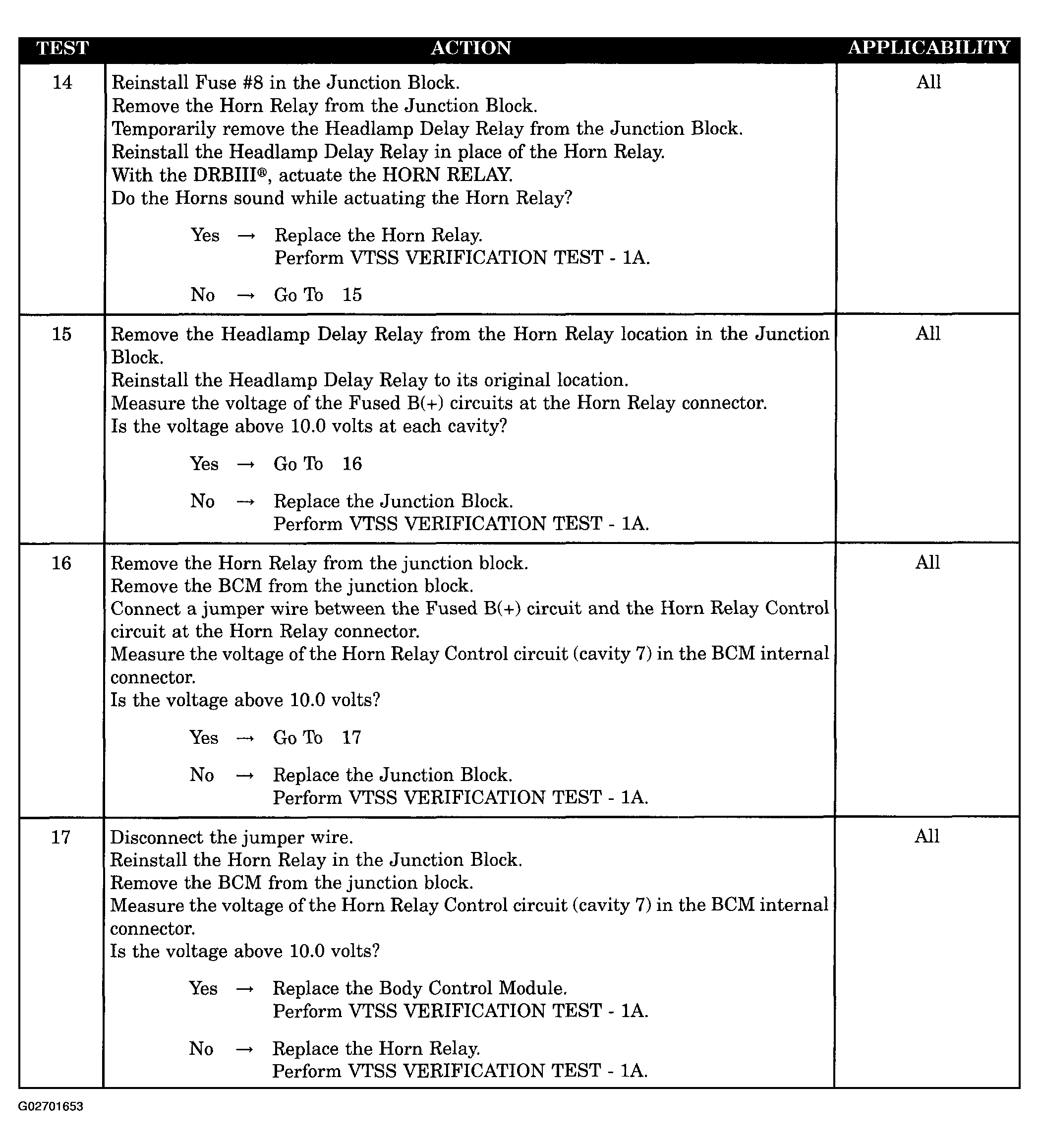

Fig 4: Horns Fail To Sound - Diagnostic Procedure (4 Of 4)
G02701653Courtesy of DAIMLERCHRYSLER CORP.
