Horns Fail To Sound With Alarm Tripped (If Enabled) - Diagnostic Procedure

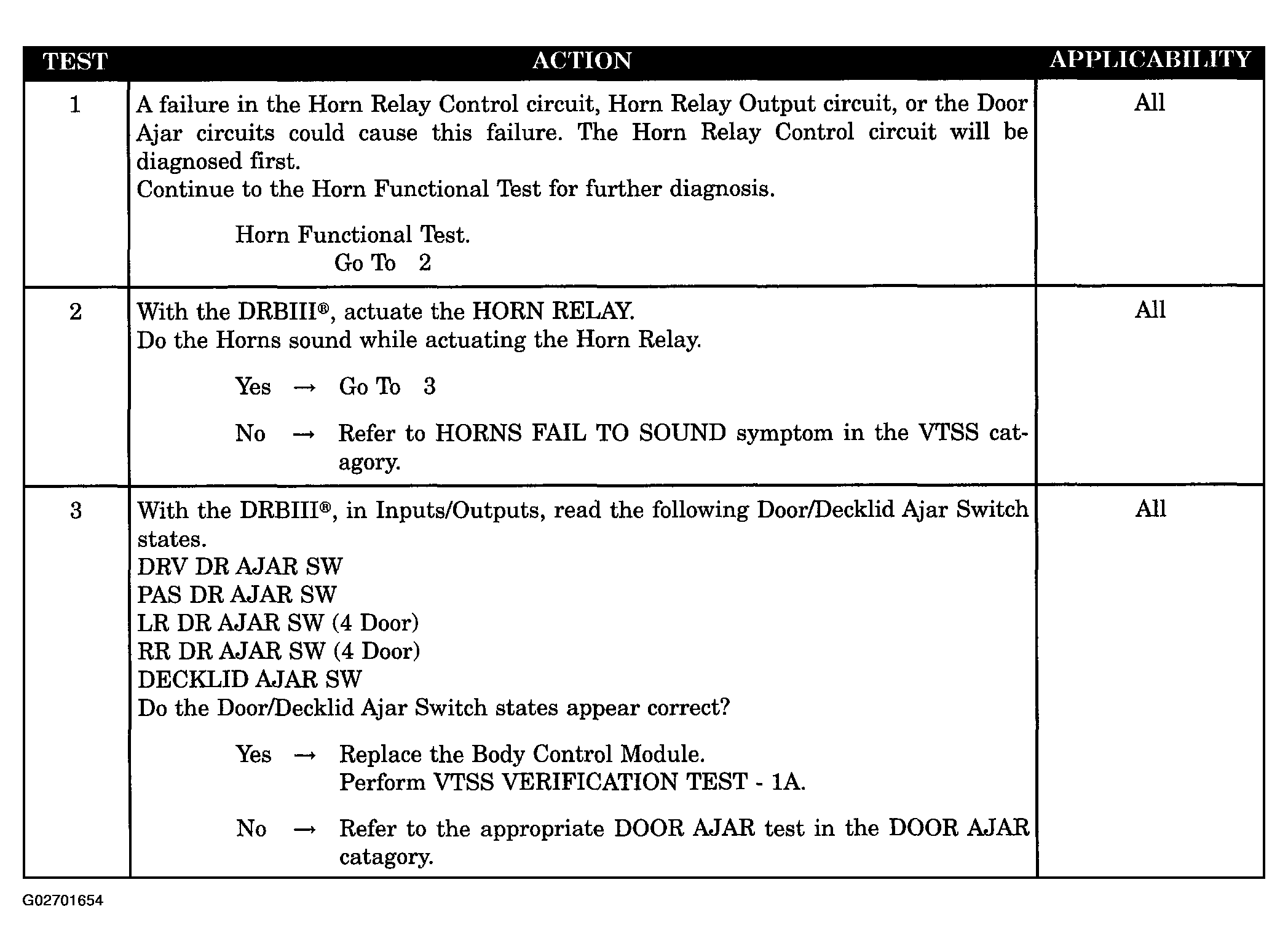

Fig 1: Horns Fail To Sound With Alarm Tripped (If Enabled) - Diagnostic Procedure

G02701654

Courtesy of DAIMLERCHRYSLER CORP.
