Headlamps Inoperative With Alarm Tripped (If Enabled) - Diagnostic Procedure

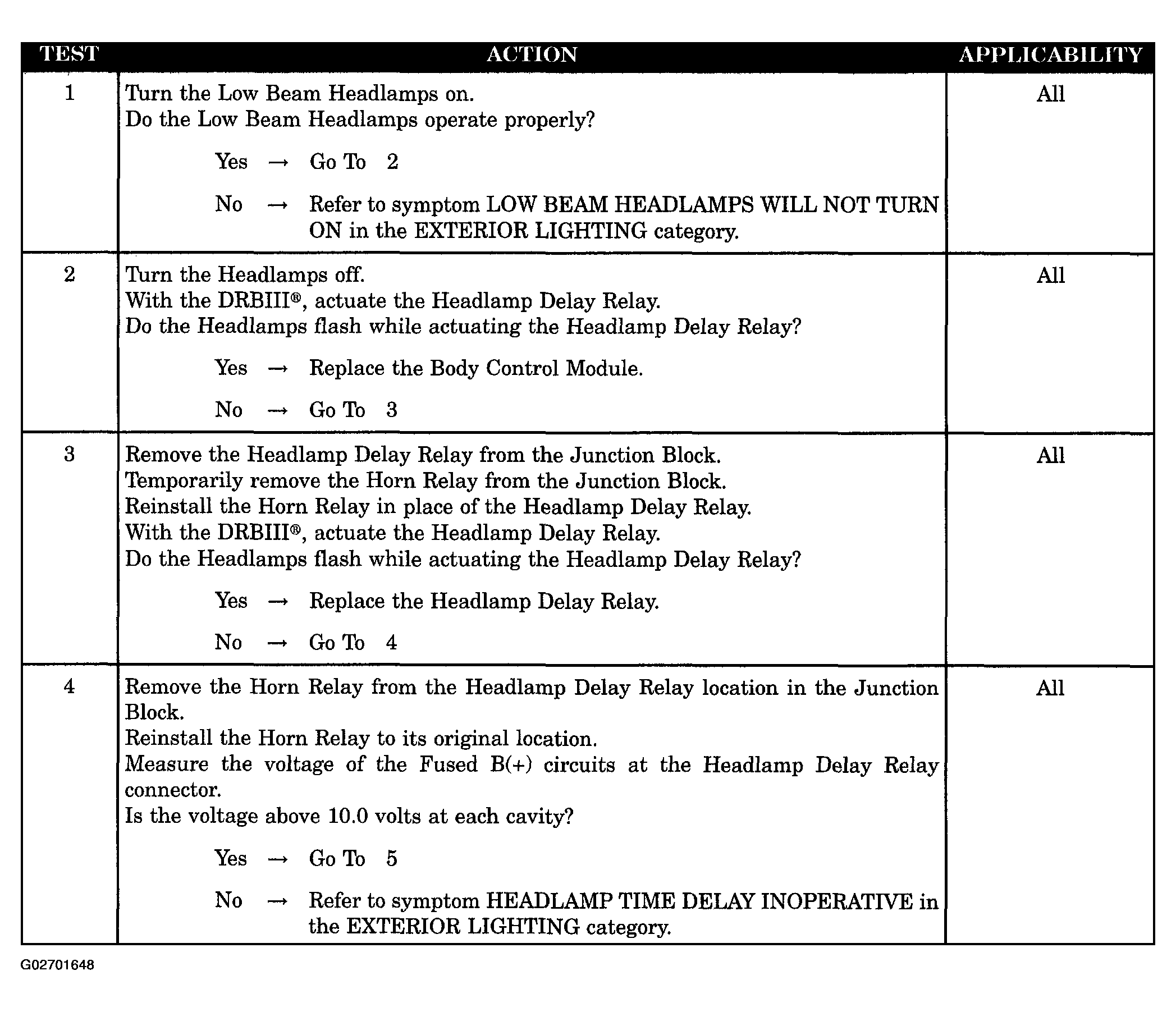

Fig 1: Headlamps Inoperative With Alarm Tripped (If Enabled) - Diagnostic Procedure (1 Of 2)
G02701648Courtesy of DAIMLERCHRYSLER CORP.

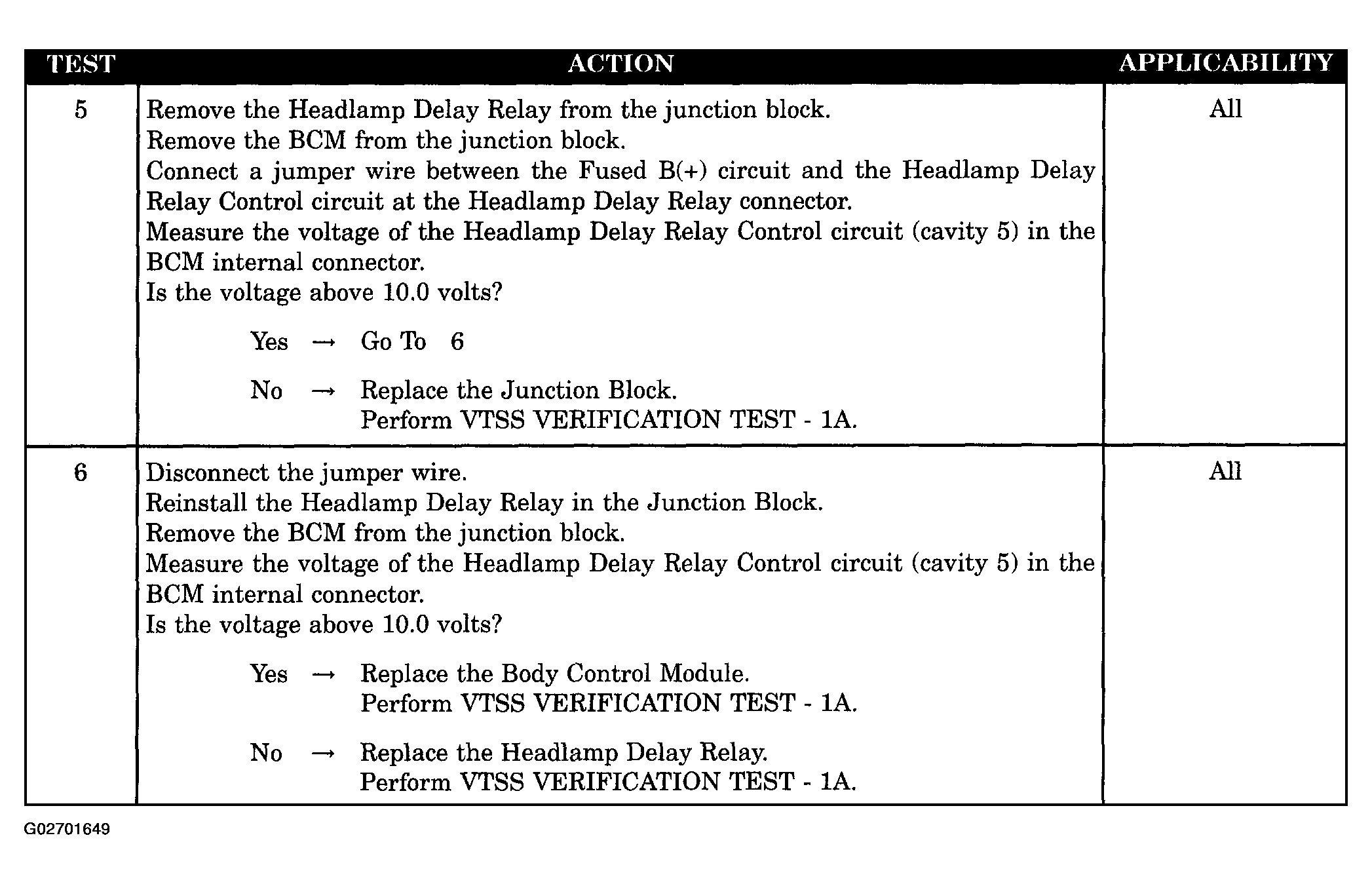

Fig 2: Headlamps Inoperative With Alarm Tripped (If Enabled) - Diagnostic Procedure (2 Of 2)
G02701649Courtesy of DAIMLERCHRYSLER CORP.
