Power Top Switch Shorted To Ground - Diagnostic Procedure

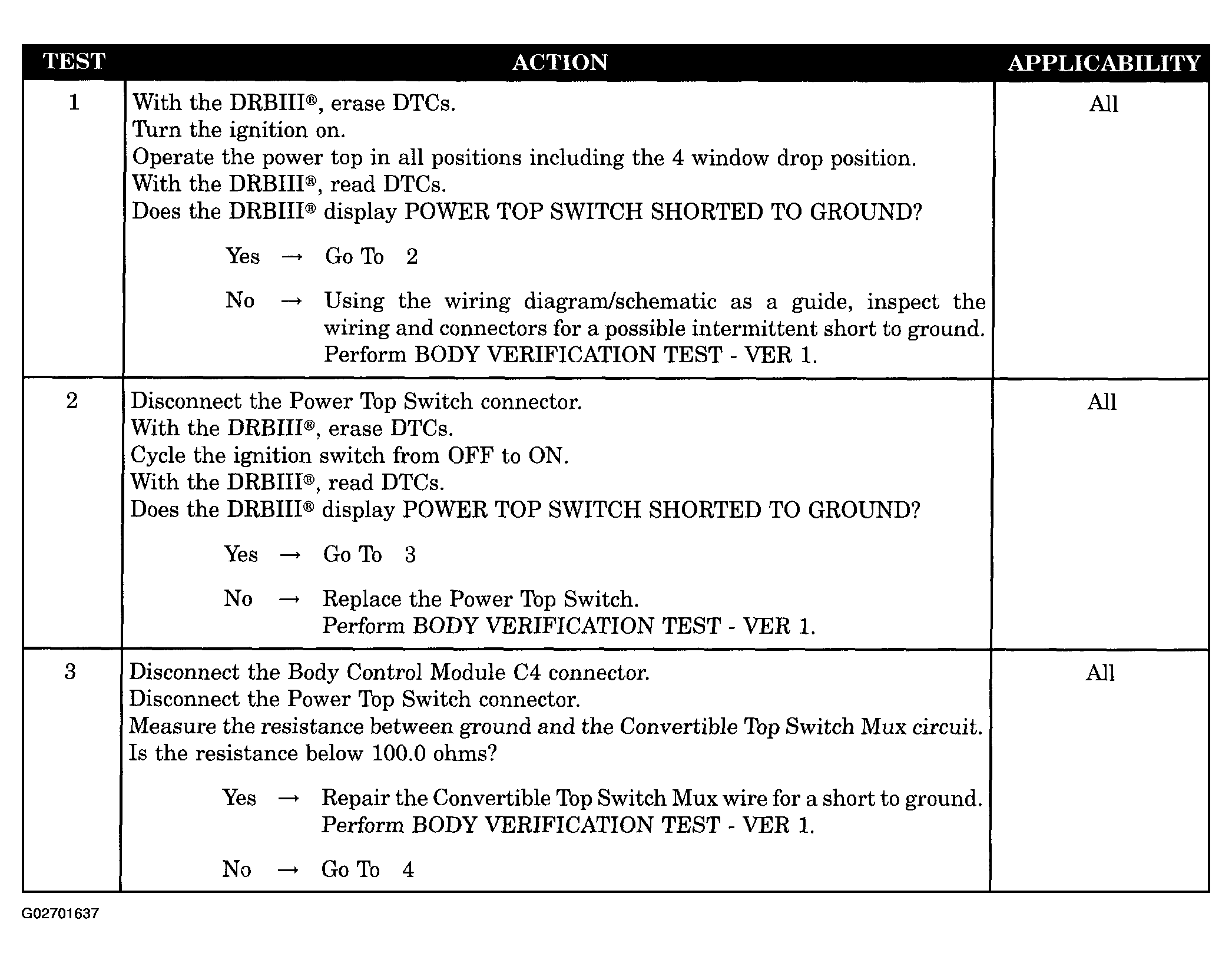

Fig 1: Power Top Switch Shorted To Ground - Diagnostic Procedure (1 Of 2)
G02701637Courtesy of DAIMLERCHRYSLER CORP.

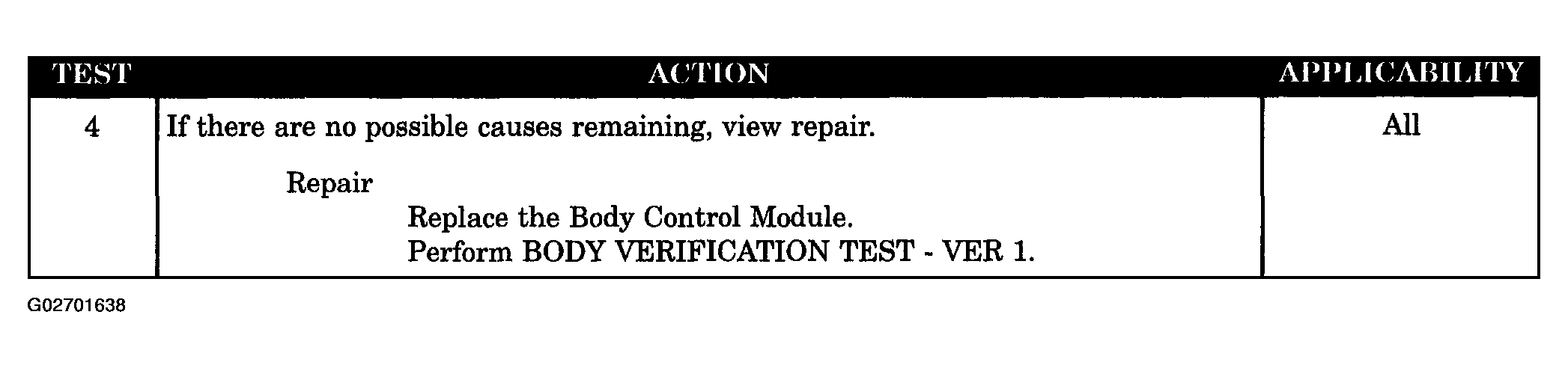

Fig 2: Power Top Switch Shorted To Ground - Diagnostic Procedure (2 Of 2)
G02701638Courtesy of DAIMLERCHRYSLER CORP.
