Power Top Switch Open Or Shorted To Battery - Diagnostic Procedure

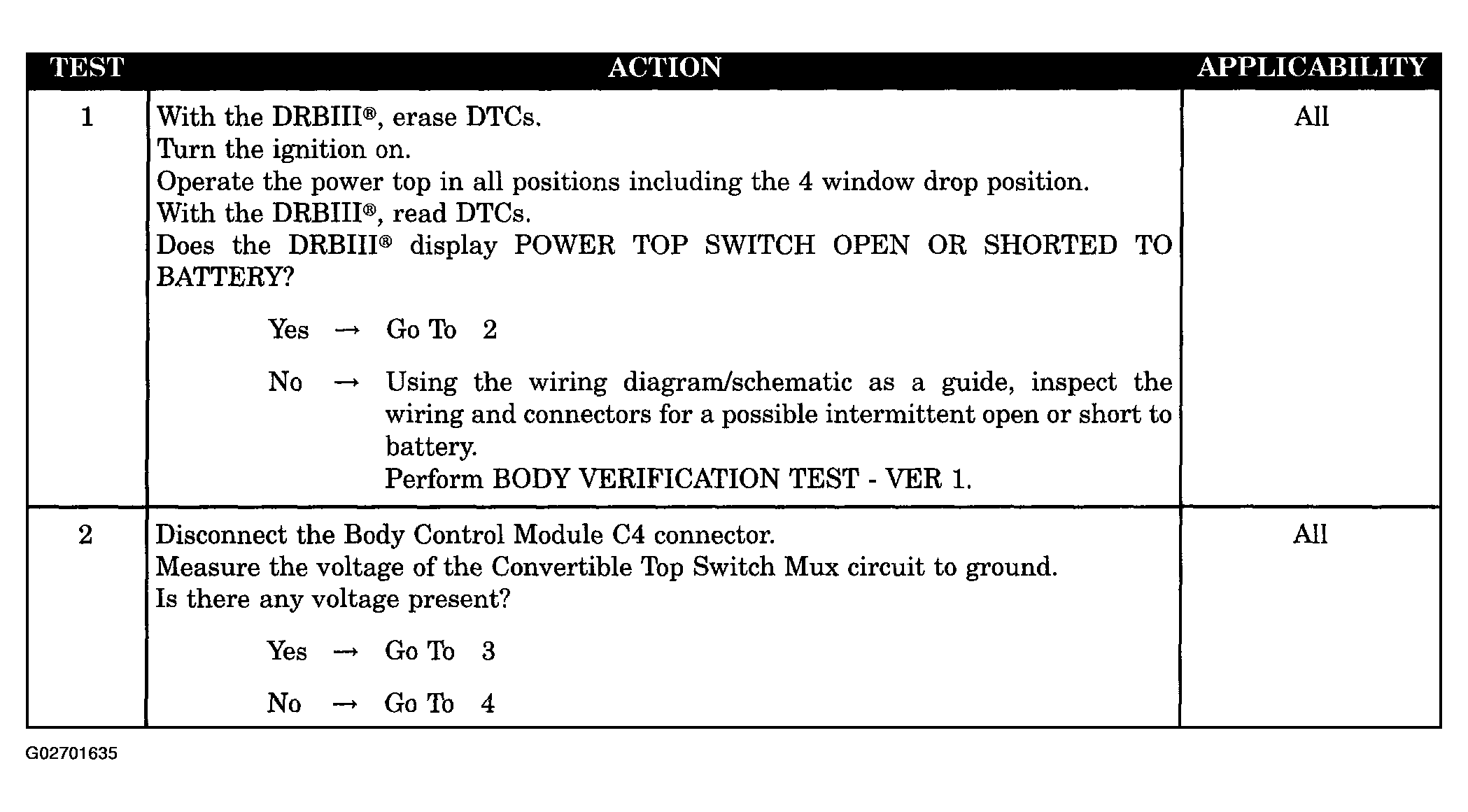

Fig 1: Power Top Switch Open Or Shorted To Battery - Diagnostic Procedure (1 Of 2)
G02701635Courtesy of DAIMLERCHRYSLER CORP.

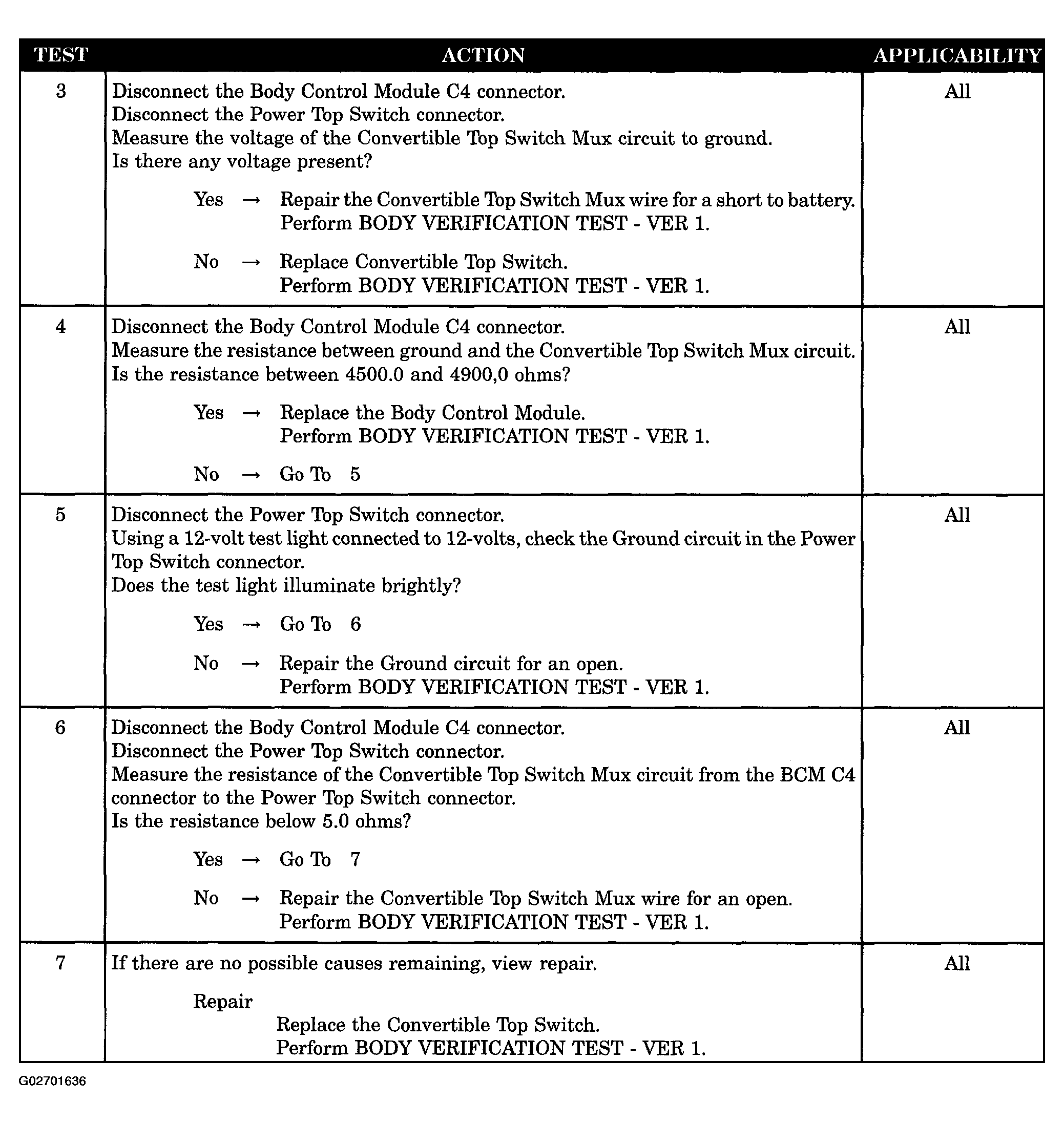

Fig 2: Power Top Switch Open Or Shorted To Battery - Diagnostic Procedure (2 Of 2)
G02701636Courtesy of DAIMLERCHRYSLER CORP.
