Remote Keyless Entry Problem - Diagnostic Procedure

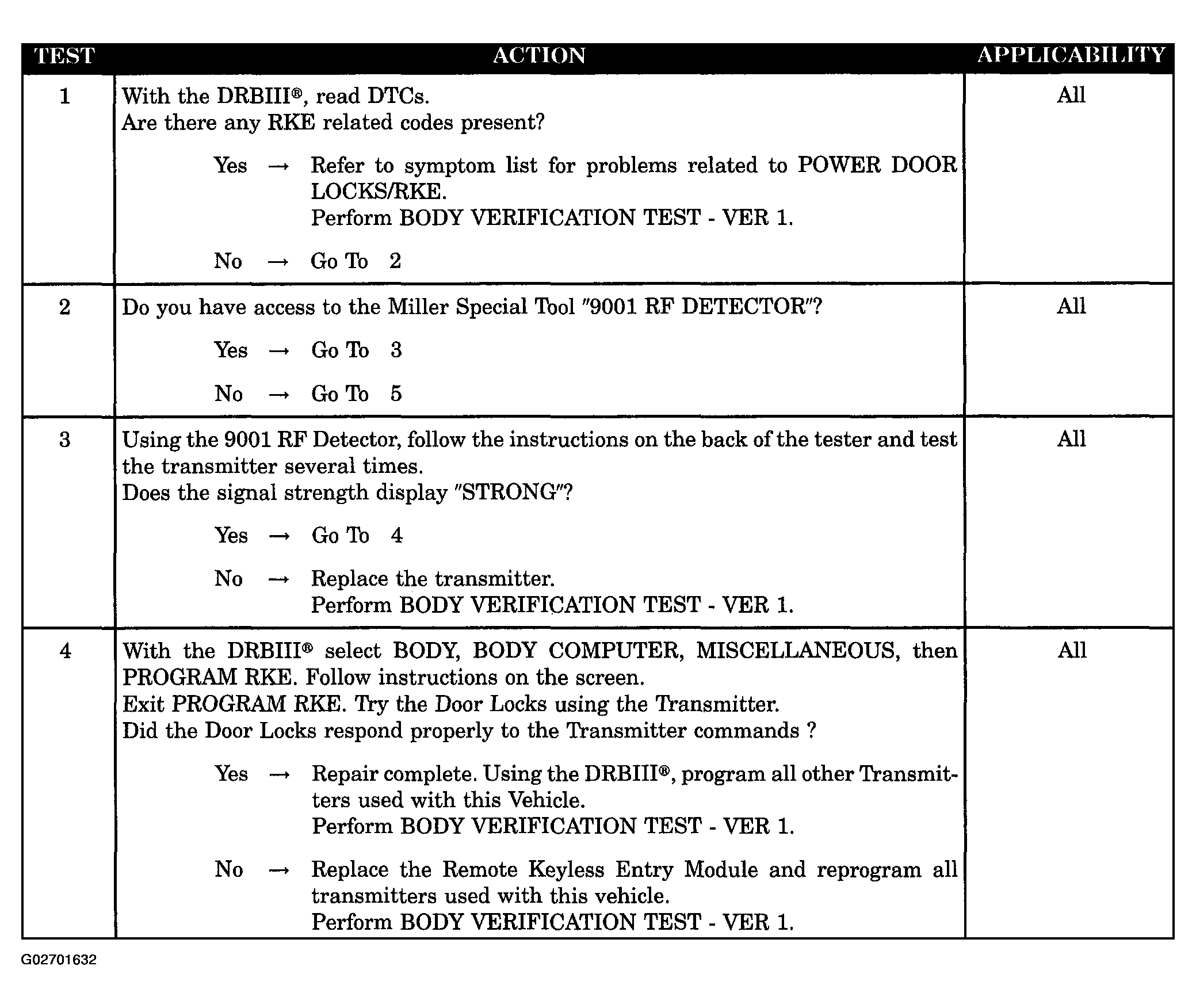

Fig 1: Remote Keyless Entry Problem - Diagnostic Procedure (1 Of 2)
G02701632Courtesy of DAIMLERCHRYSLER CORP.

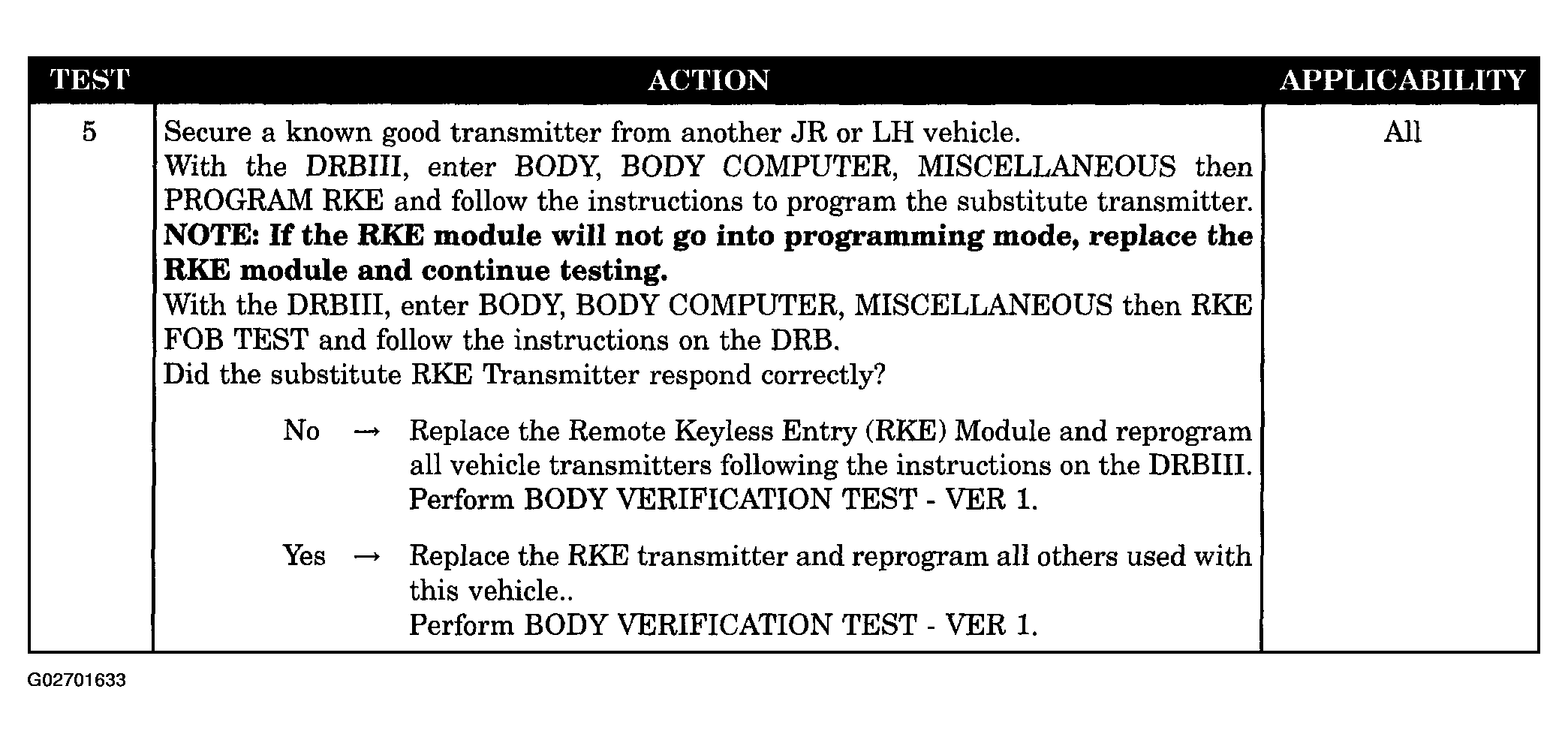

Fig 2: Remote Keyless Entry Problem - Diagnostic Procedure (2 Of 2)
G02701633Courtesy of DAIMLERCHRYSLER CORP.
