DECKLID Release Inoperative - Diagnostic Procedure

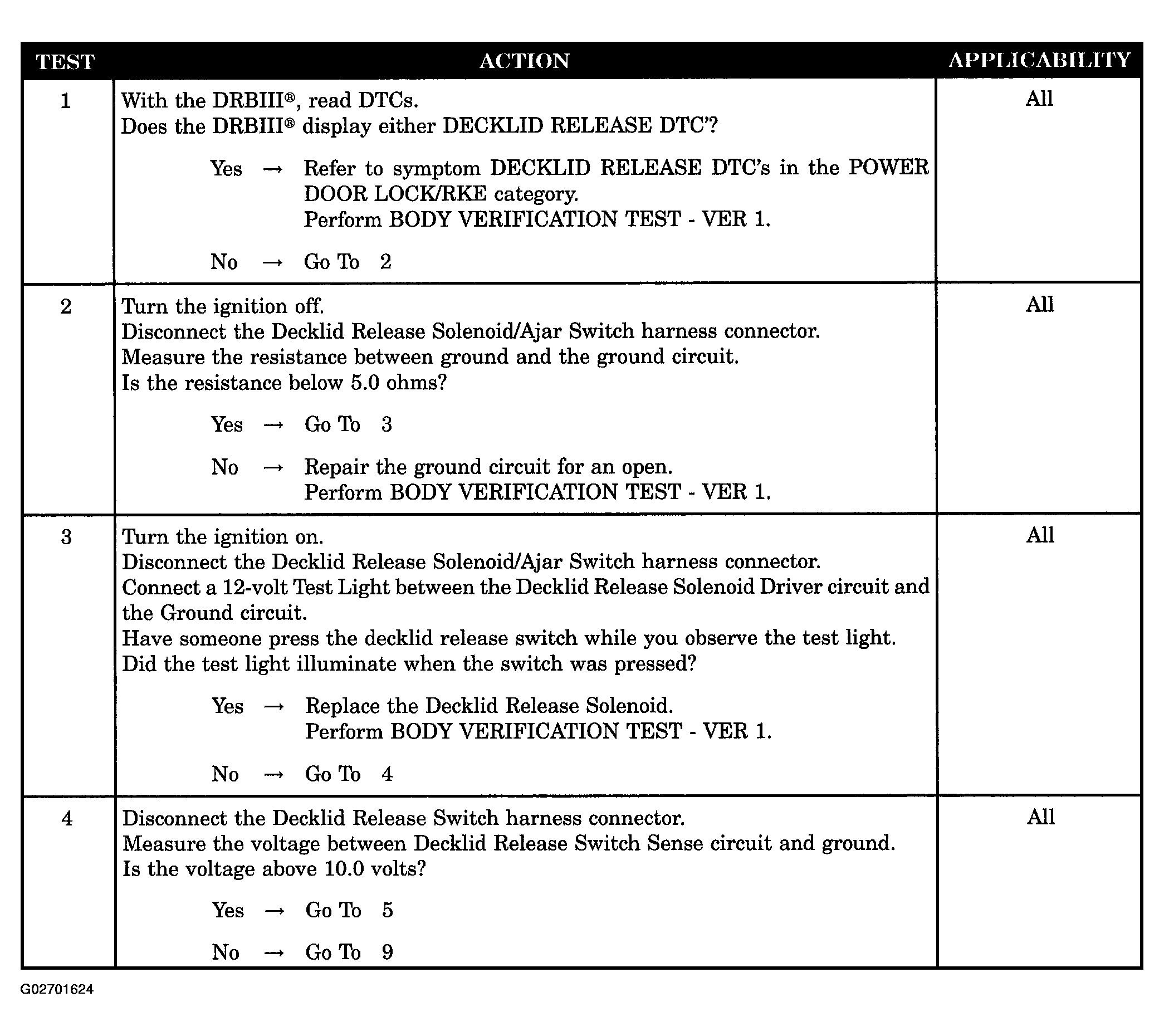

Fig 1: Decklid Release Inoperative - Diagnostic Procedure (1 Of 2)
G02701624Courtesy of DAIMLERCHRYSLER CORP.

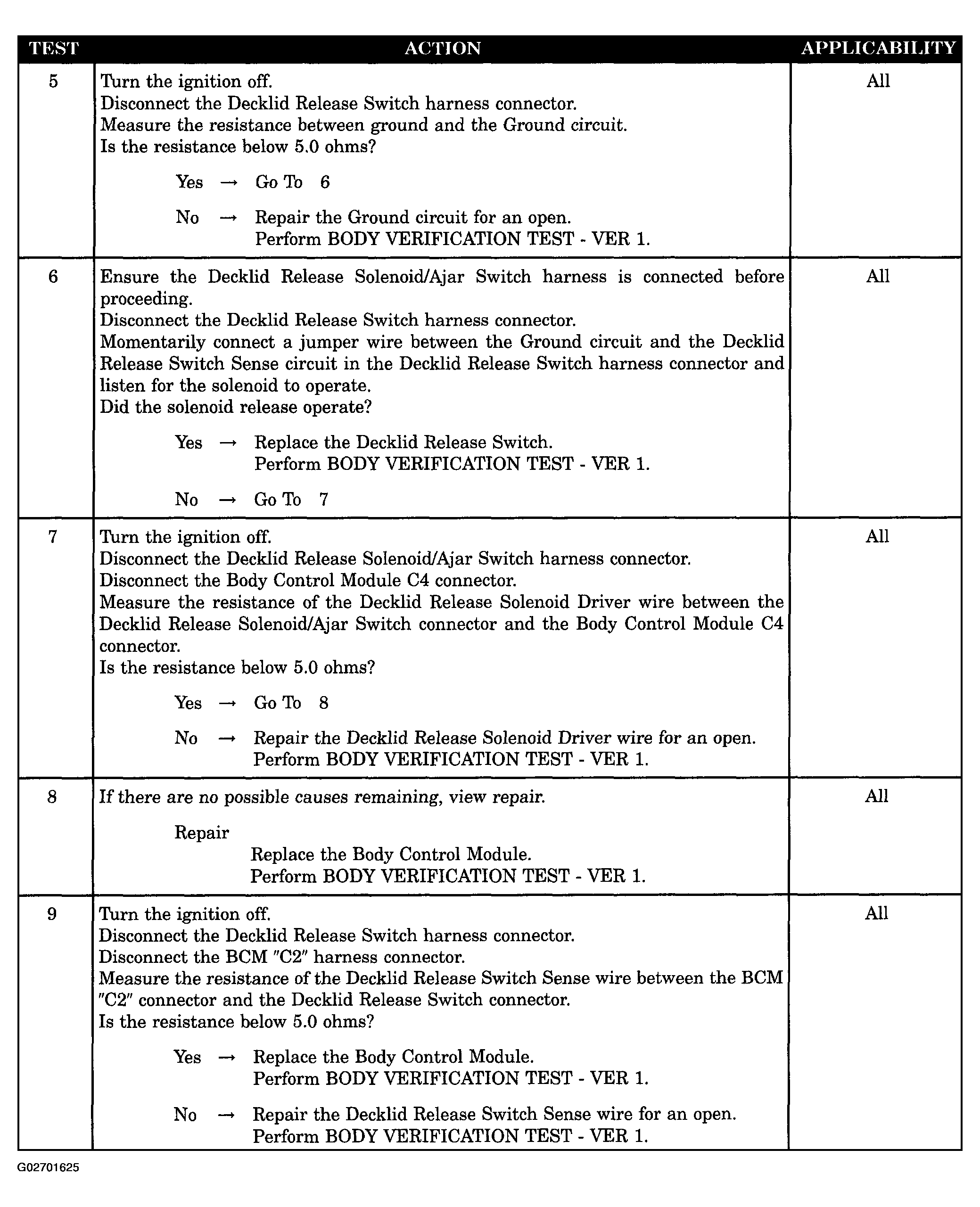

Fig 2: Decklid Release Inoperative - Diagnostic Procedure (2 Of 2)
G02701625Courtesy of DAIMLERCHRYSLER CORP.
