Home >> Chrysler >> 2003 >> Sebring LXi, 2D Convertible >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Body Diagnostic Procedures - Except Coupe >> Diagnostic Information And Procedures >> Interior Lighting >> Symptom: COURTESY LAMP OUTPUT FAILURE >> Courtesy Lamp Output Failure - Diagnostic Procedure

Courtesy Lamp Output Failure - Diagnostic Procedure

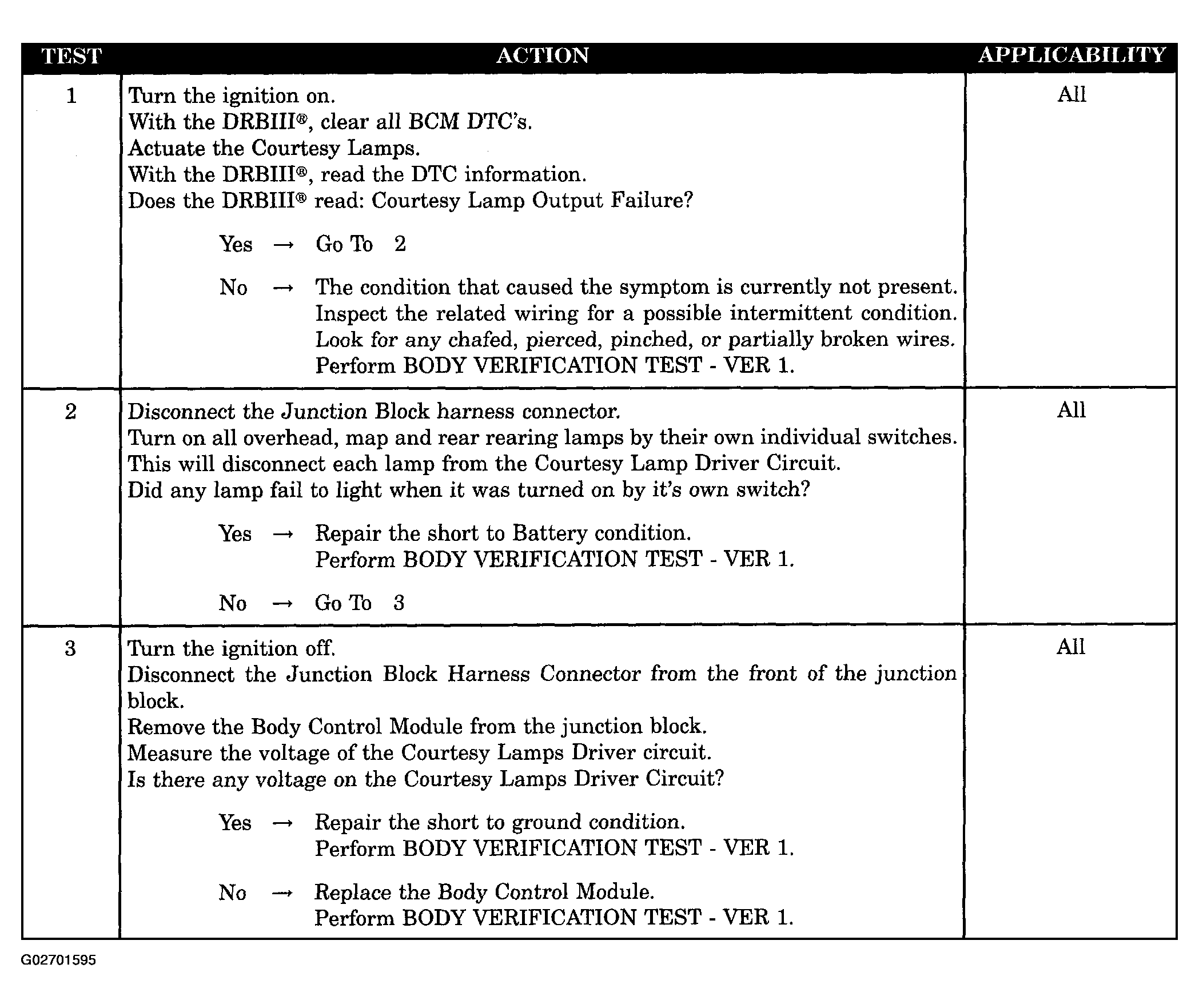

Fig 1: Courtesy Lamp Output Failure - Diagnostic Procedure

G02701595

Courtesy of DAIMLERCHRYSLER CORP.
