Courtesy Lamp Inoperative - All Lamps - Diagnostic Procedure

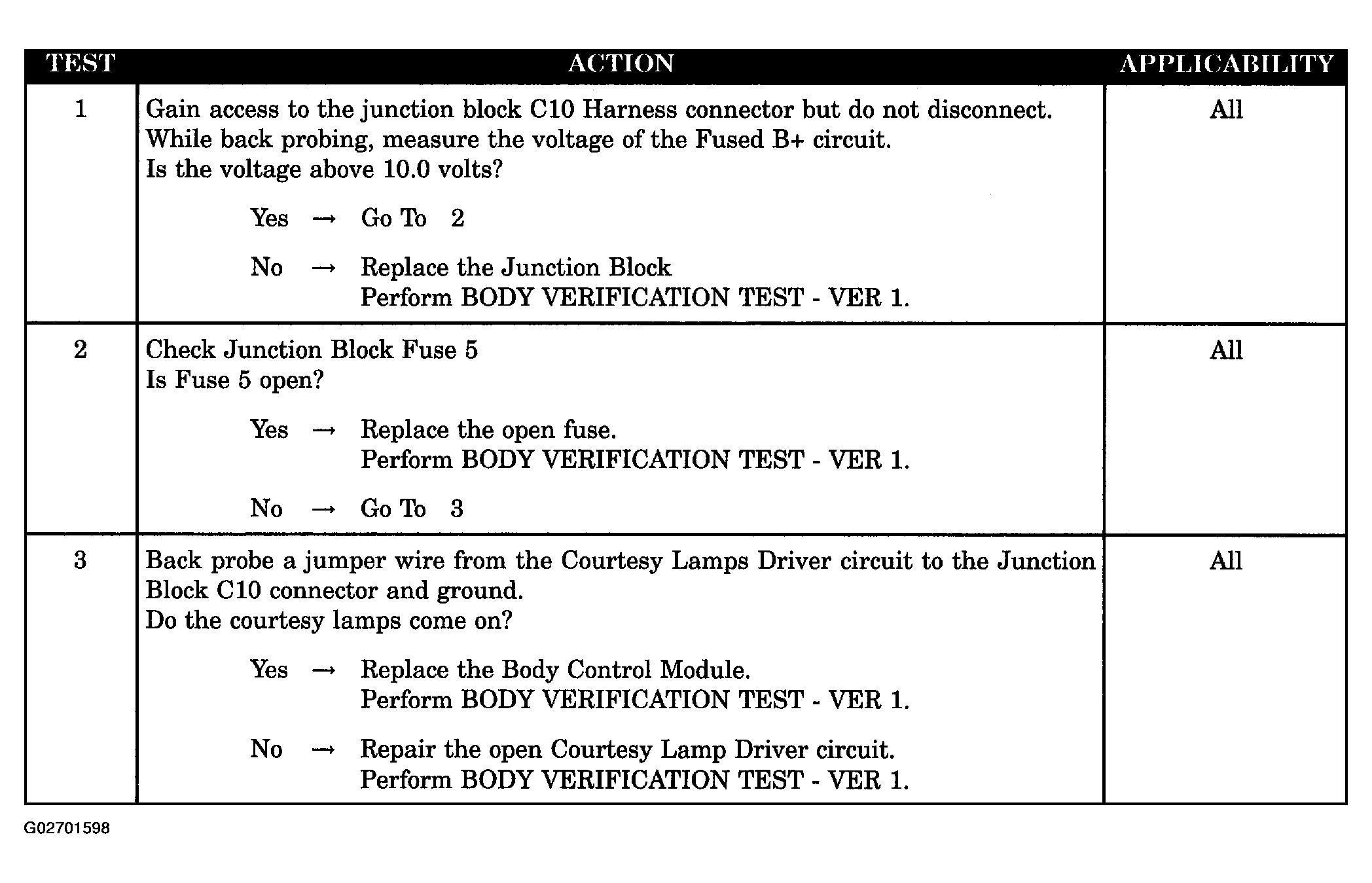

Fig 1: Courtesy Lamp Inoperative - All Lamps - Diagnostic Procedure

G02701598

Courtesy of DAIMLERCHRYSLER CORP.
