Pcm Message Not Received - Diagnostic Procedure

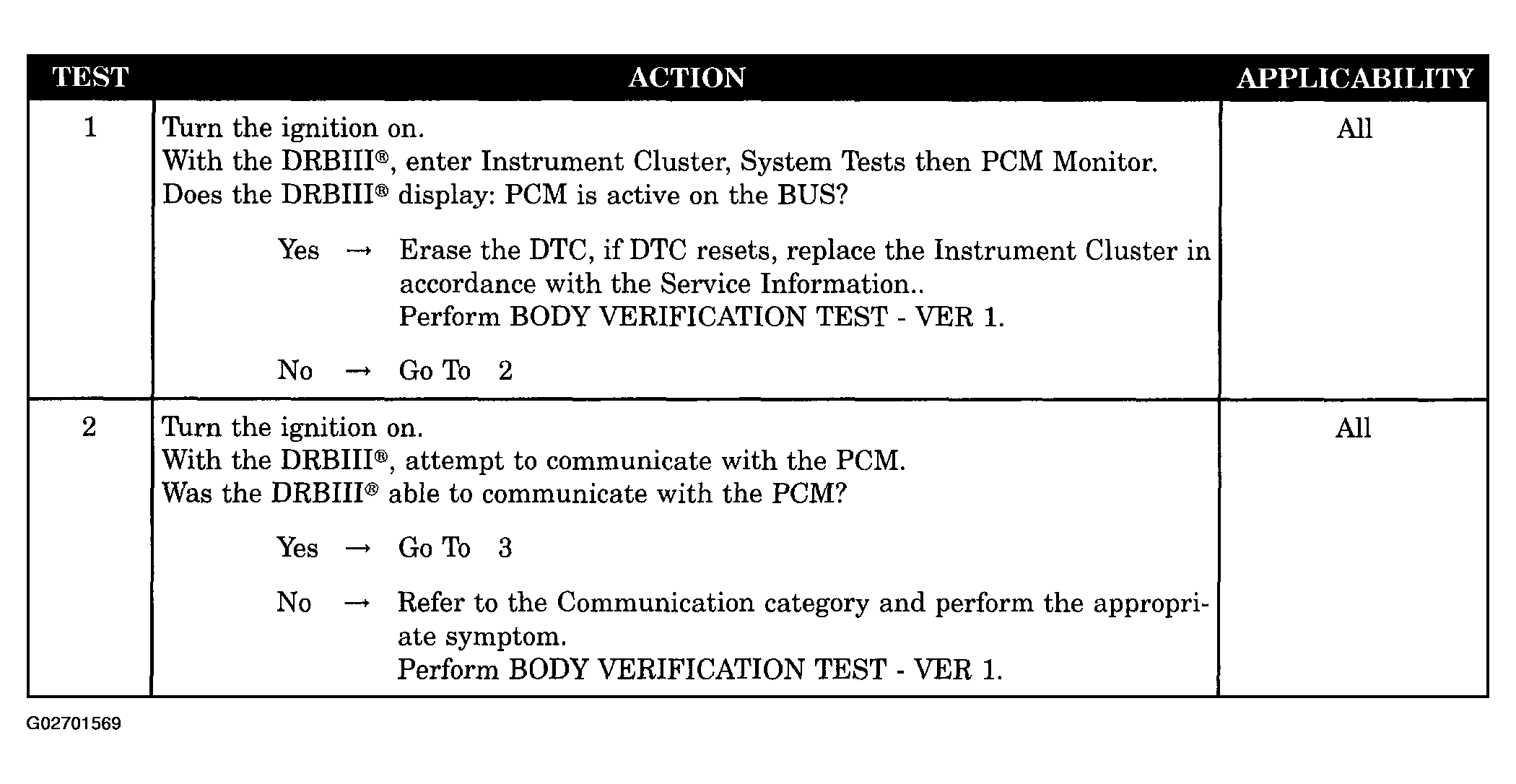

Fig 1: PCM Message Not Received - Diagnostic Procedure (1 Of 2)
G02701569Courtesy of DAIMLERCHRYSLER CORP.

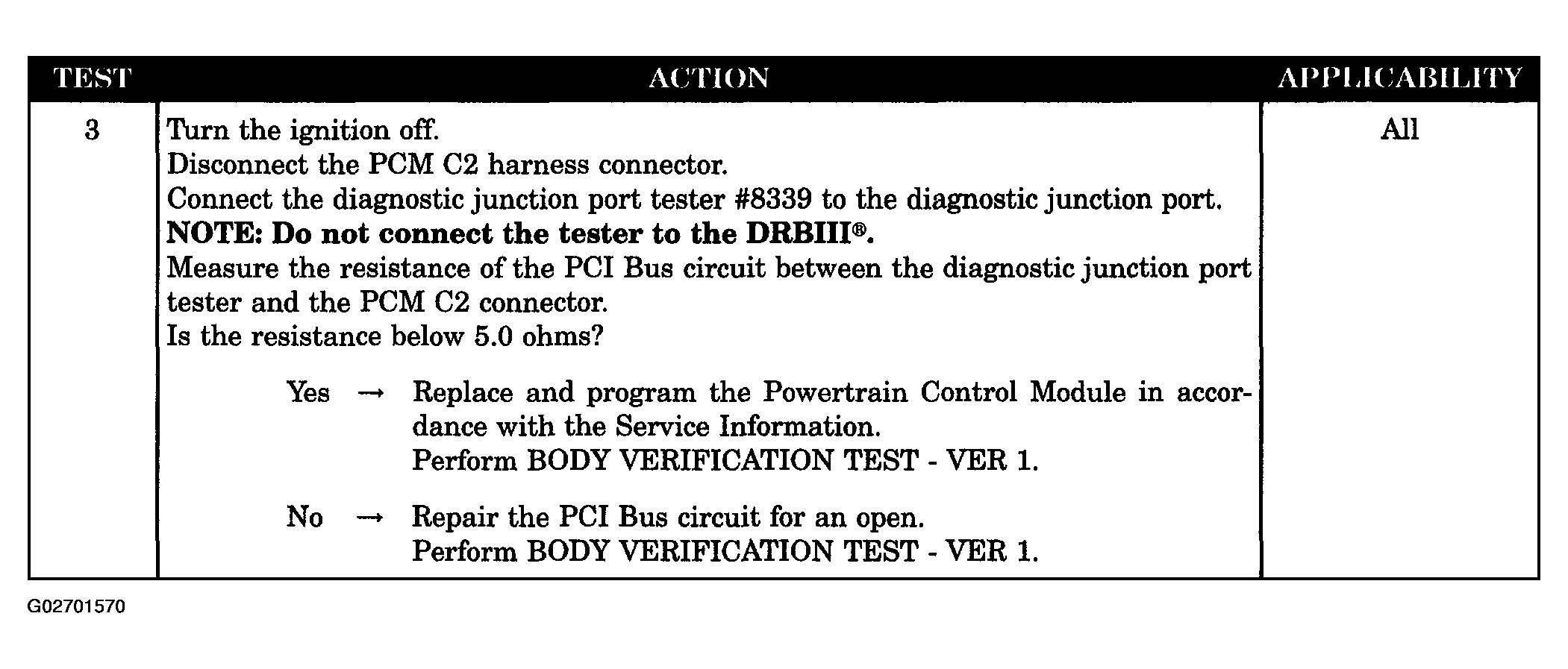

Fig 2: PCM Message Not Received - Diagnostic Procedure (2 Of 2)
G02701570Courtesy of DAIMLERCHRYSLER CORP.
