Panel Dimming Output Short - Diagnostic Procedure

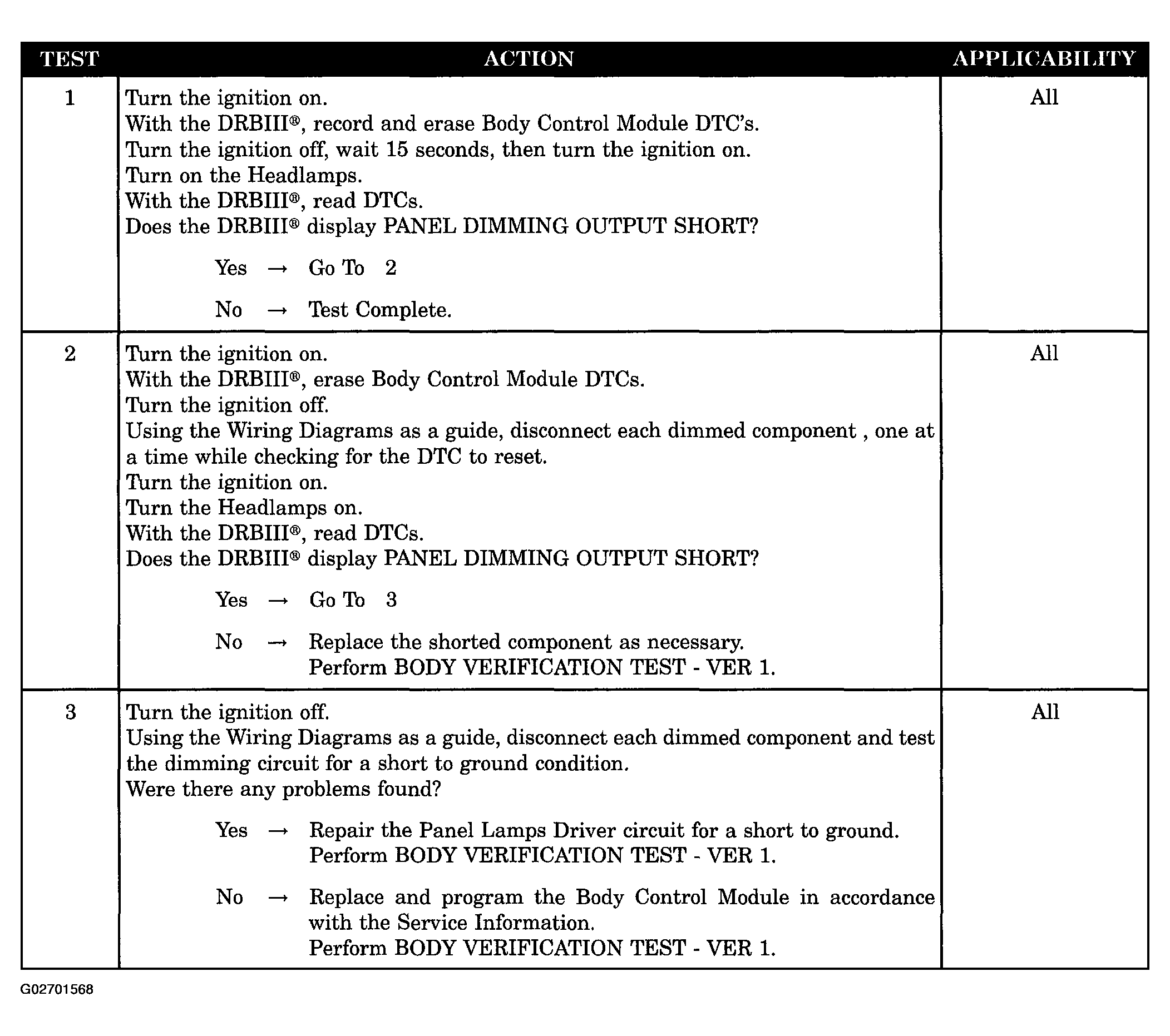

Fig 1: PANEL DIMMING OUTPUT SHORT - DIAGNOSTIC PROCEDURE

G02701568

Courtesy of DAIMLERCHRYSLER CORP.
