Fuel Level Sending Unit Failure - Diagnostic Procedure

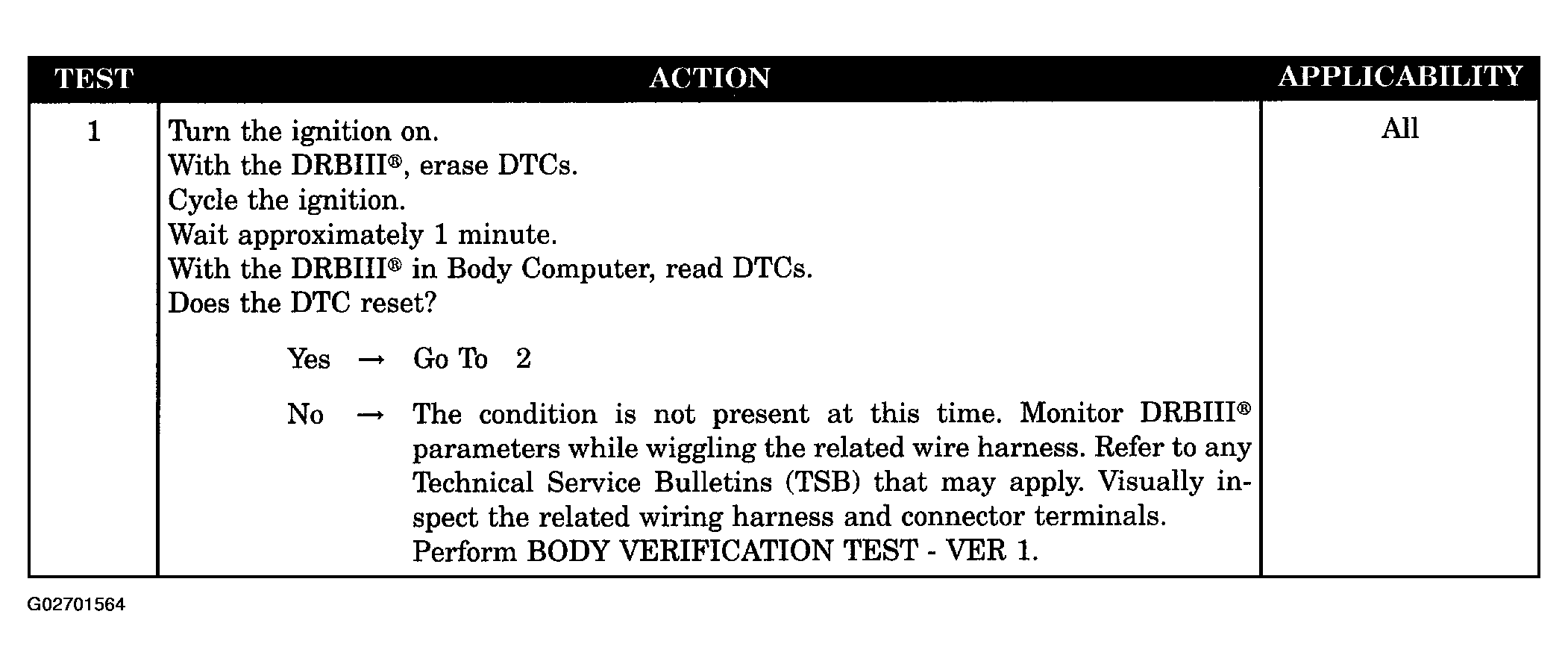

Fig 1: Fuel Level Sending Unit Failure - Diagnostic Procedure (1 Of 3)

Courtesy of DAIMLERCHRYSLER CORP.

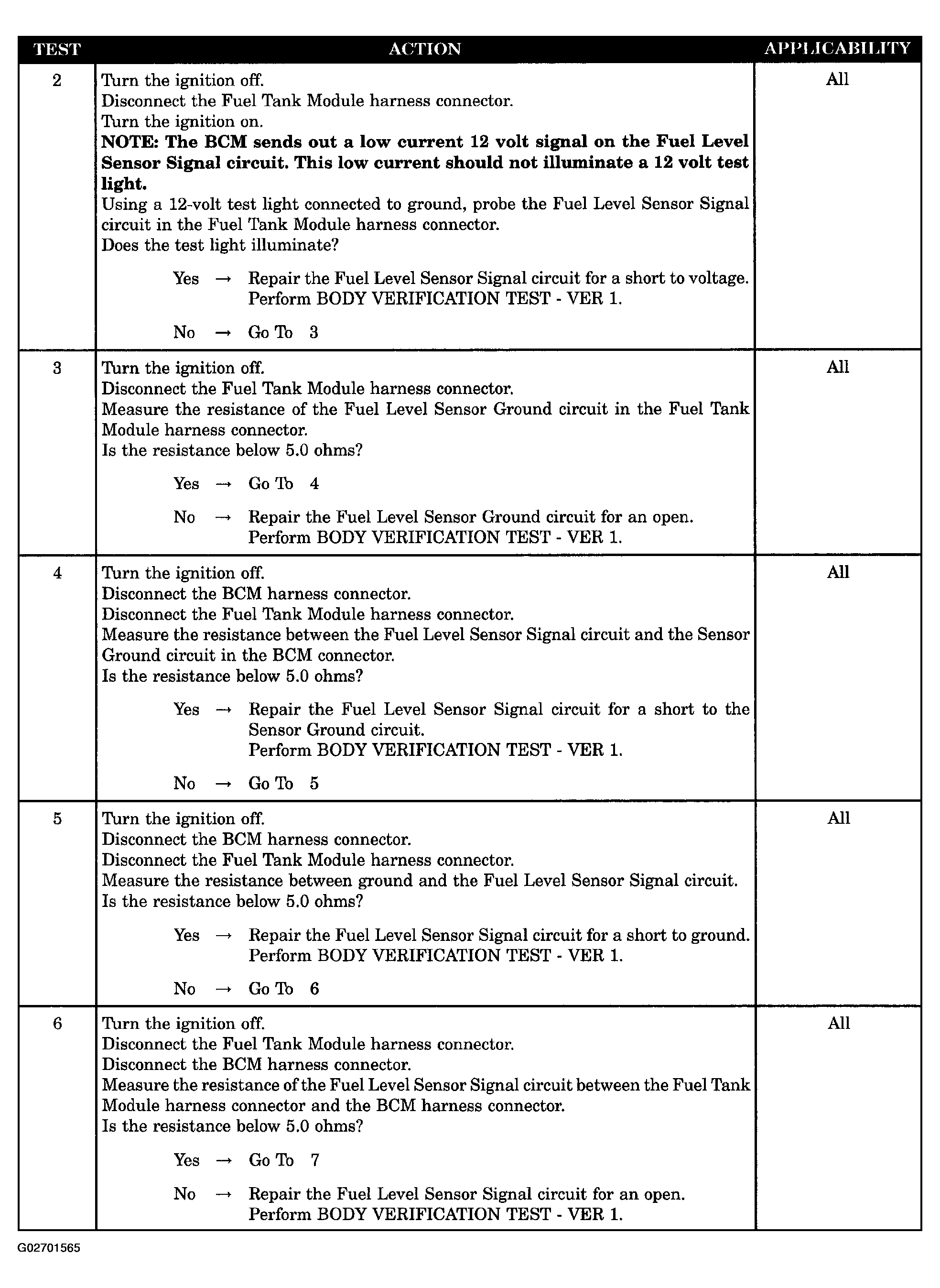

Fig 2: Fuel Level Sending Unit Failure - Diagnostic Procedure (2 Of 3)

Courtesy of DAIMLERCHRYSLER CORP.

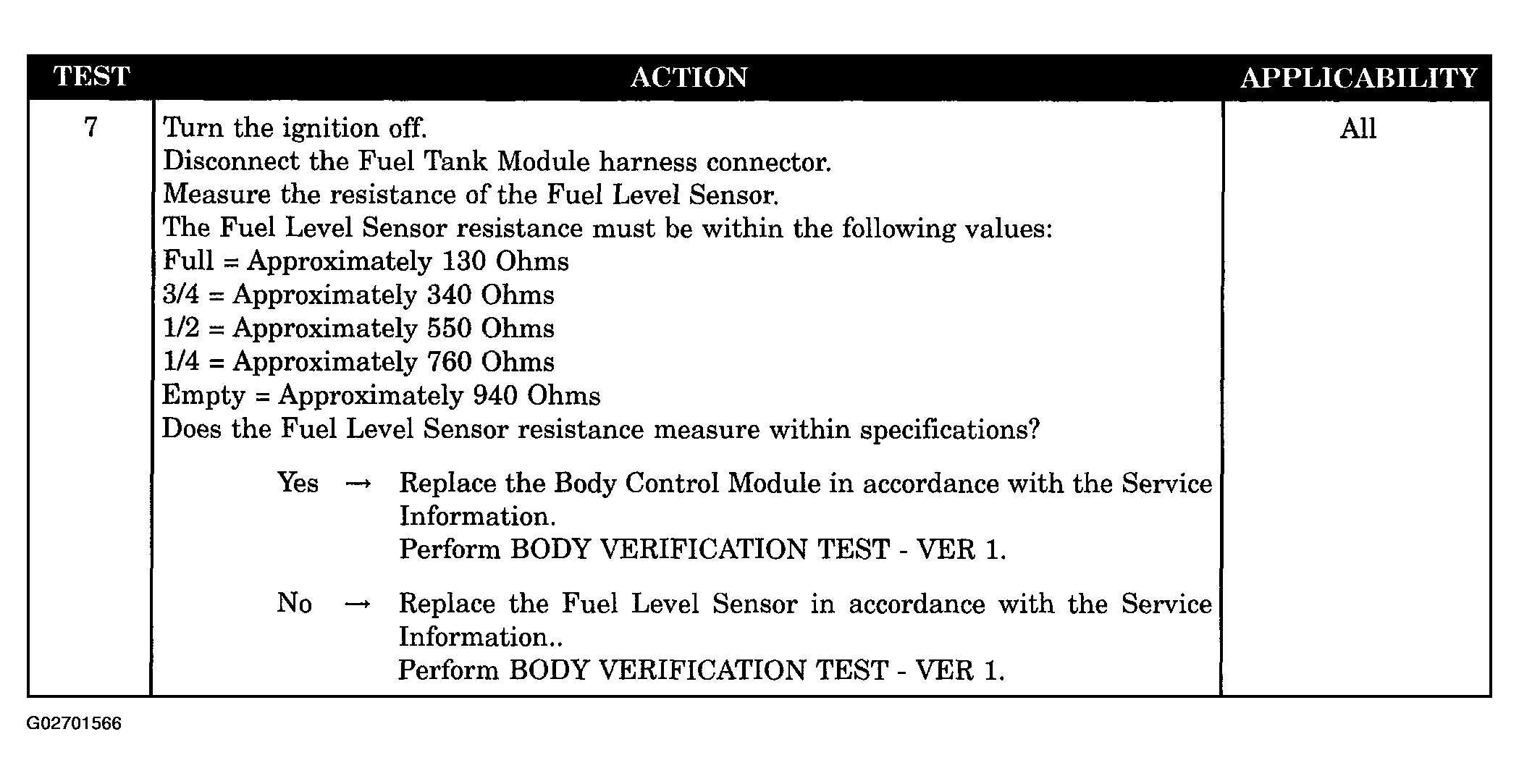

Fig 3: Fuel Level Sending Unit Failure - Diagnostic Procedure (3 Of 3)

Courtesy of DAIMLERCHRYSLER CORP.
