Tachometer Not Operating Properly - Diagnostic Procedure

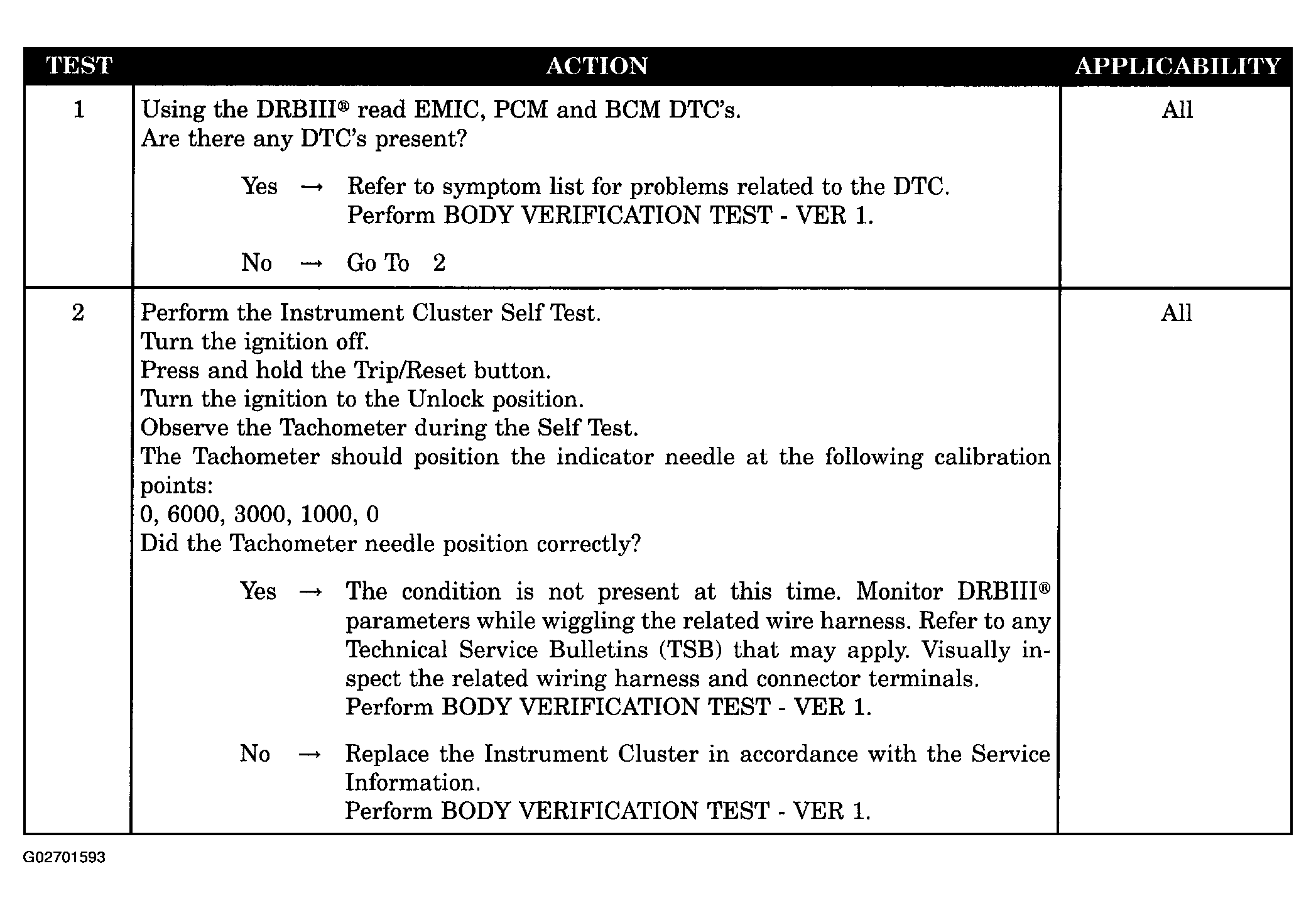

Fig 1: Tachometer Not Operating Properly - Diagnostic Procedure

G02701593

Courtesy of DAIMLERCHRYSLER CORP.
