Speedometer Not Operating Properly - Diagnostic Procedure

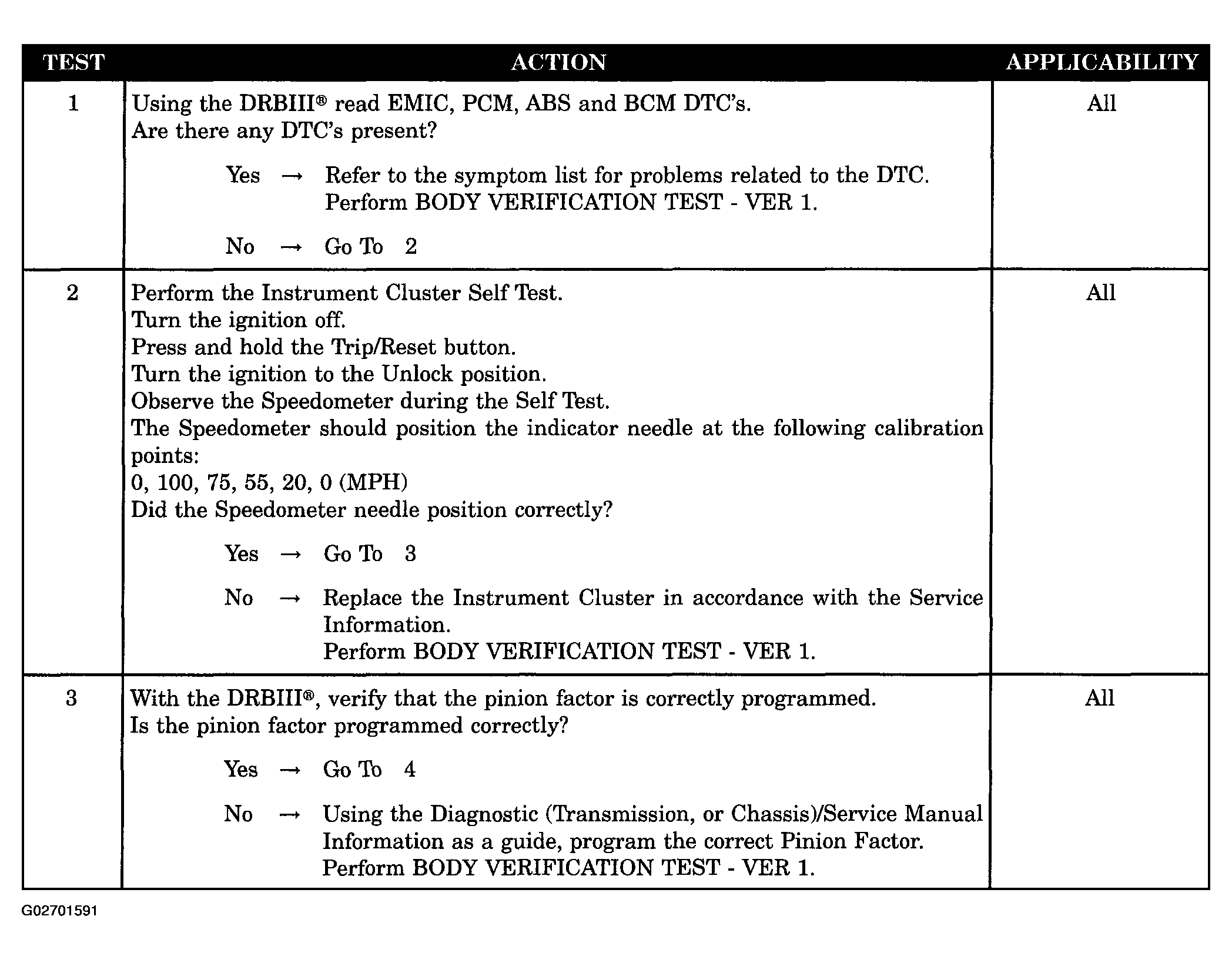

Fig 1: Speedometer Not Operating Properly - Diagnostic Procedure (1 Of 2)
G02701591Courtesy of DAIMLERCHRYSLER CORP.

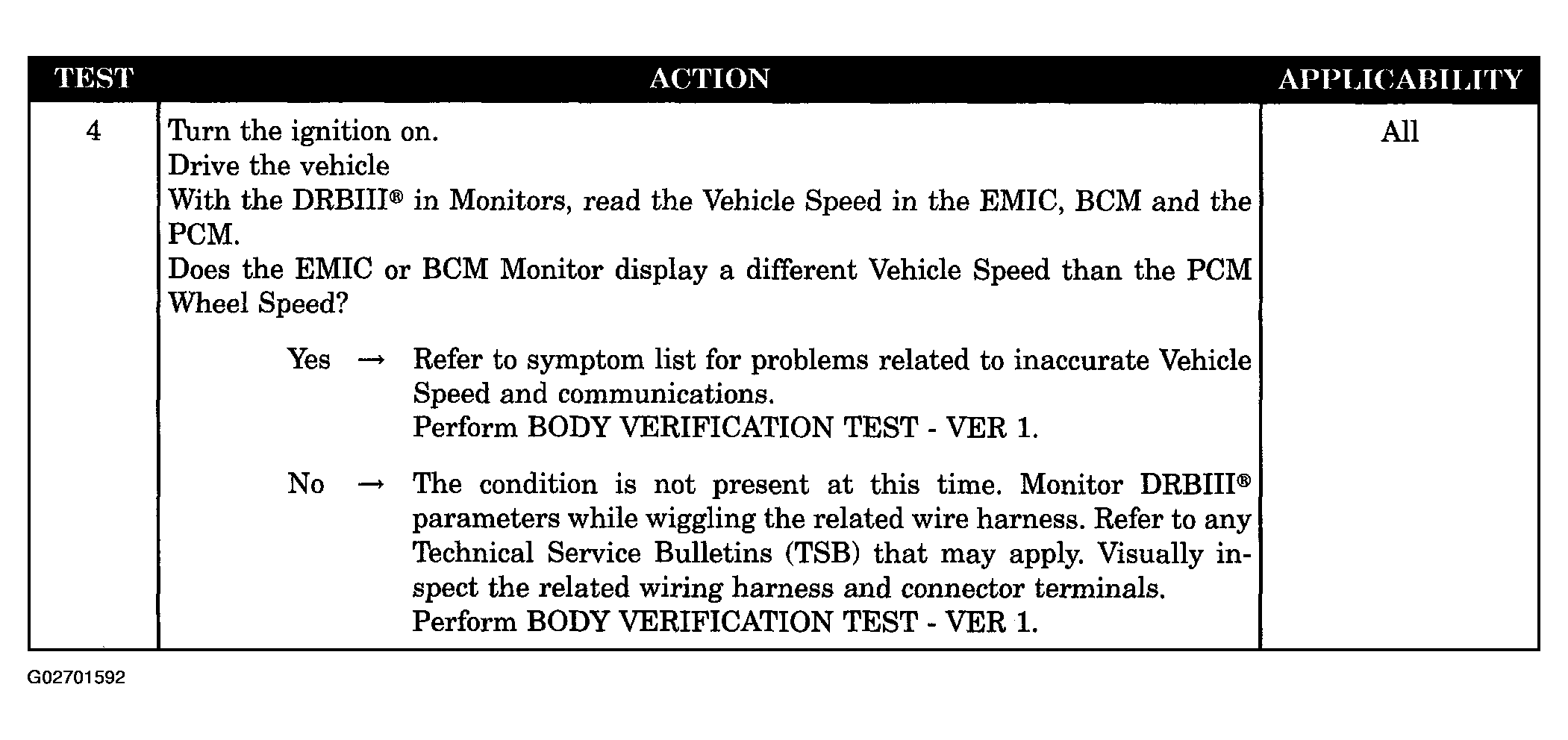

Fig 2: Speedometer Not Operating Properly - Diagnostic Procedure (2 Of 2)
G02701592Courtesy of DAIMLERCHRYSLER CORP.
