Seat Belt Indicator Inoperative - Diagnostic Procedure

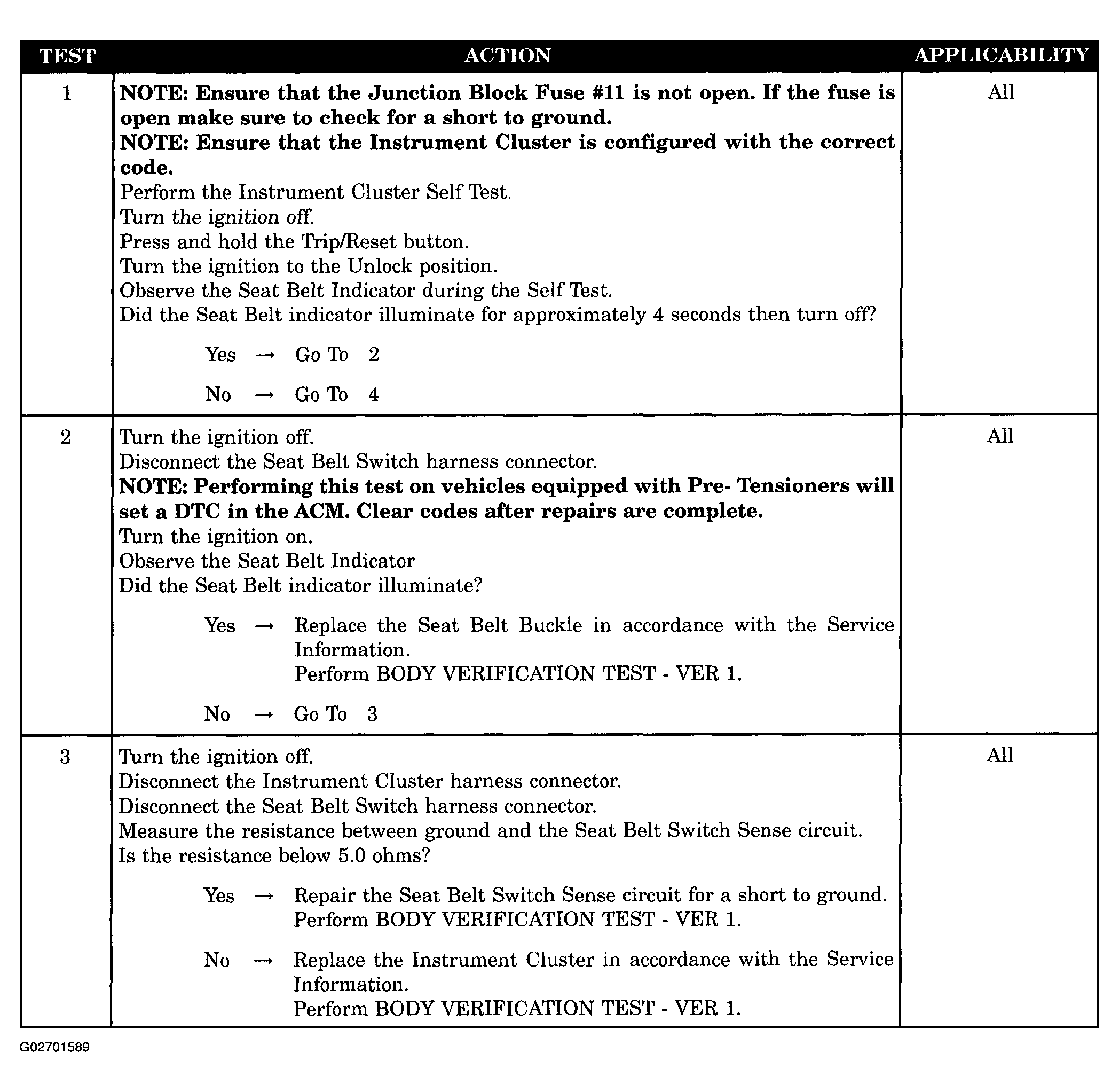

Fig 1: Seat Belt Indicator Inoperative - Diagnostic Procedure (1 Of 2)
G02701589Courtesy of DAIMLERCHRYSLER CORP.

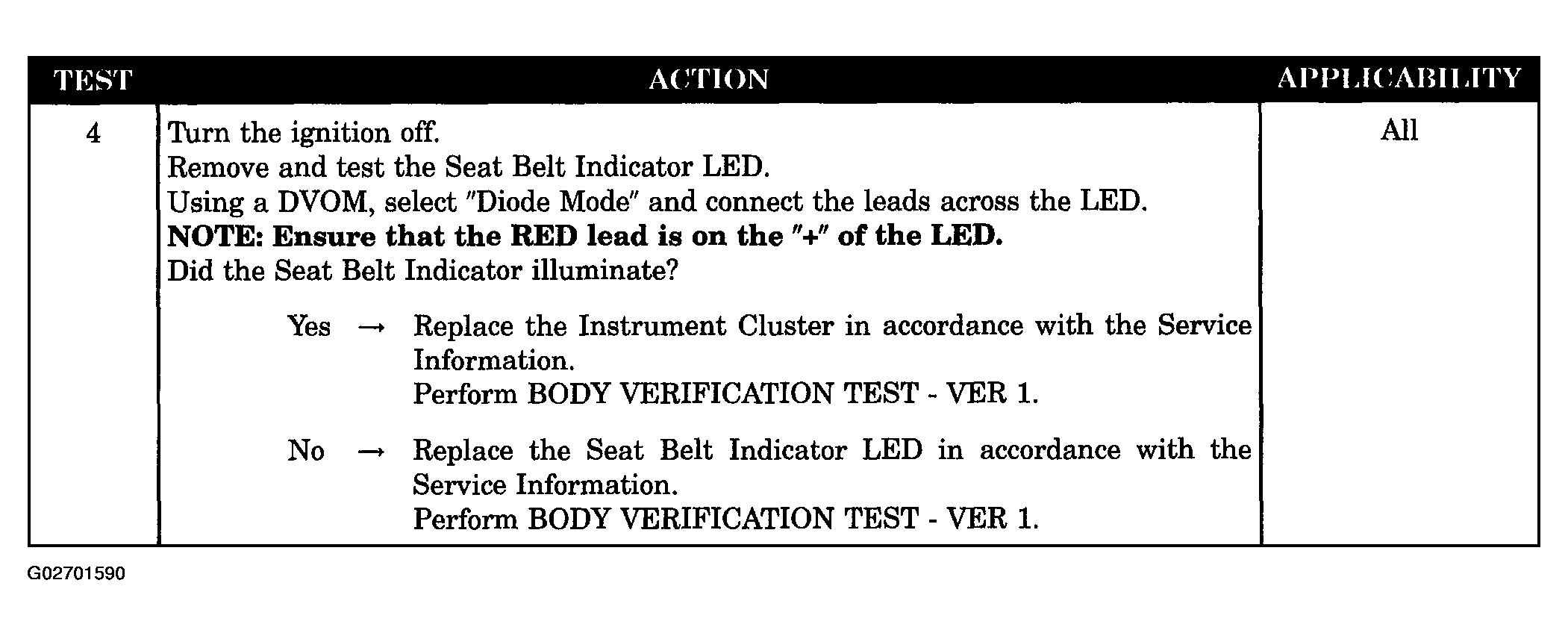

Fig 2: Seat Belt Indicator Inoperative - Diagnostic Procedure (2 Of 2)
G02701590Courtesy of DAIMLERCHRYSLER CORP.
