Oil Pressure Indicator Not Operating Properly - Diagnostic Procedure

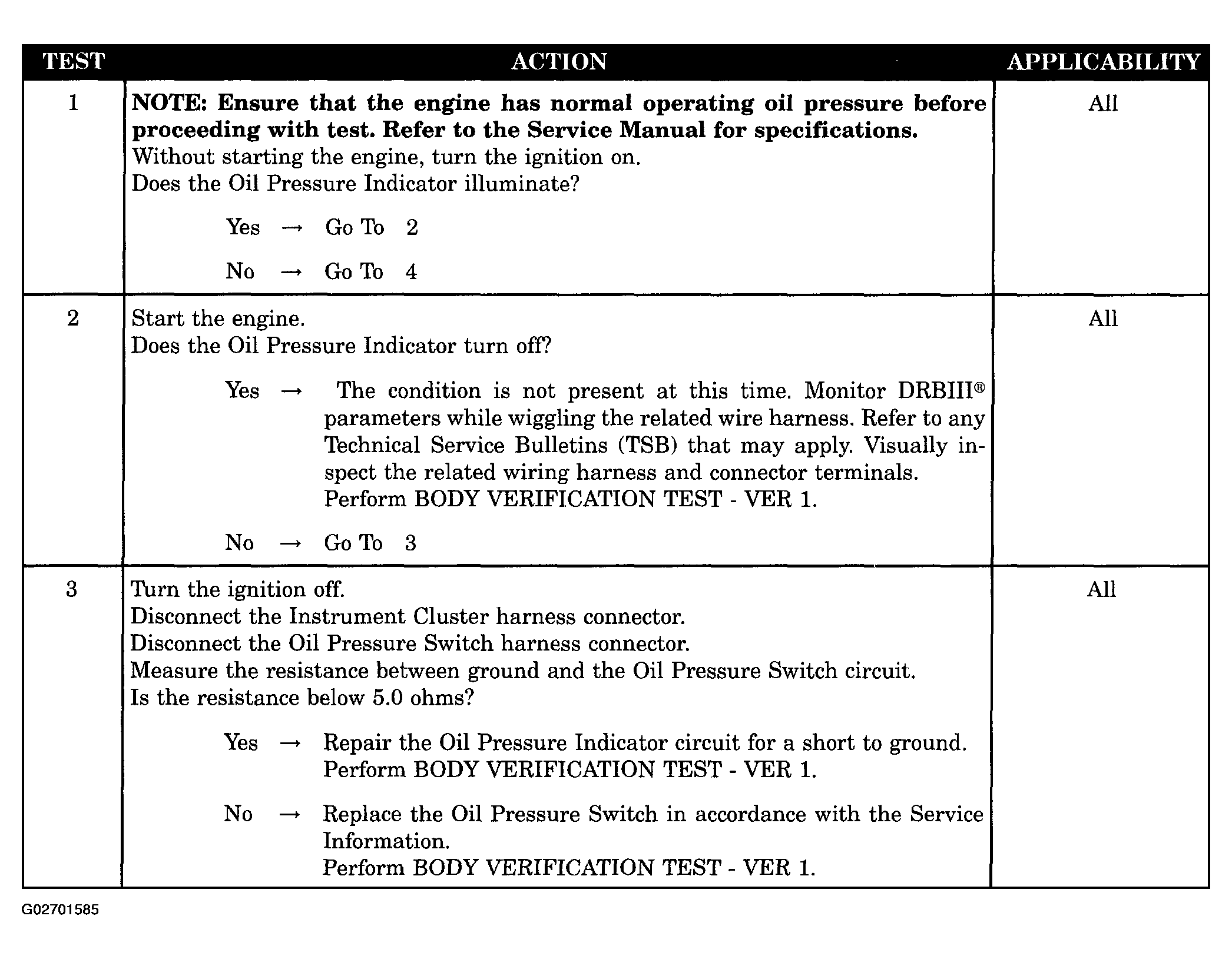

Fig 1: Oil Pressure Indicator Not Operating Properly - Diagnostic Procedure (1 Of 2)
G02701585Courtesy of DAIMLERCHRYSLER CORP.

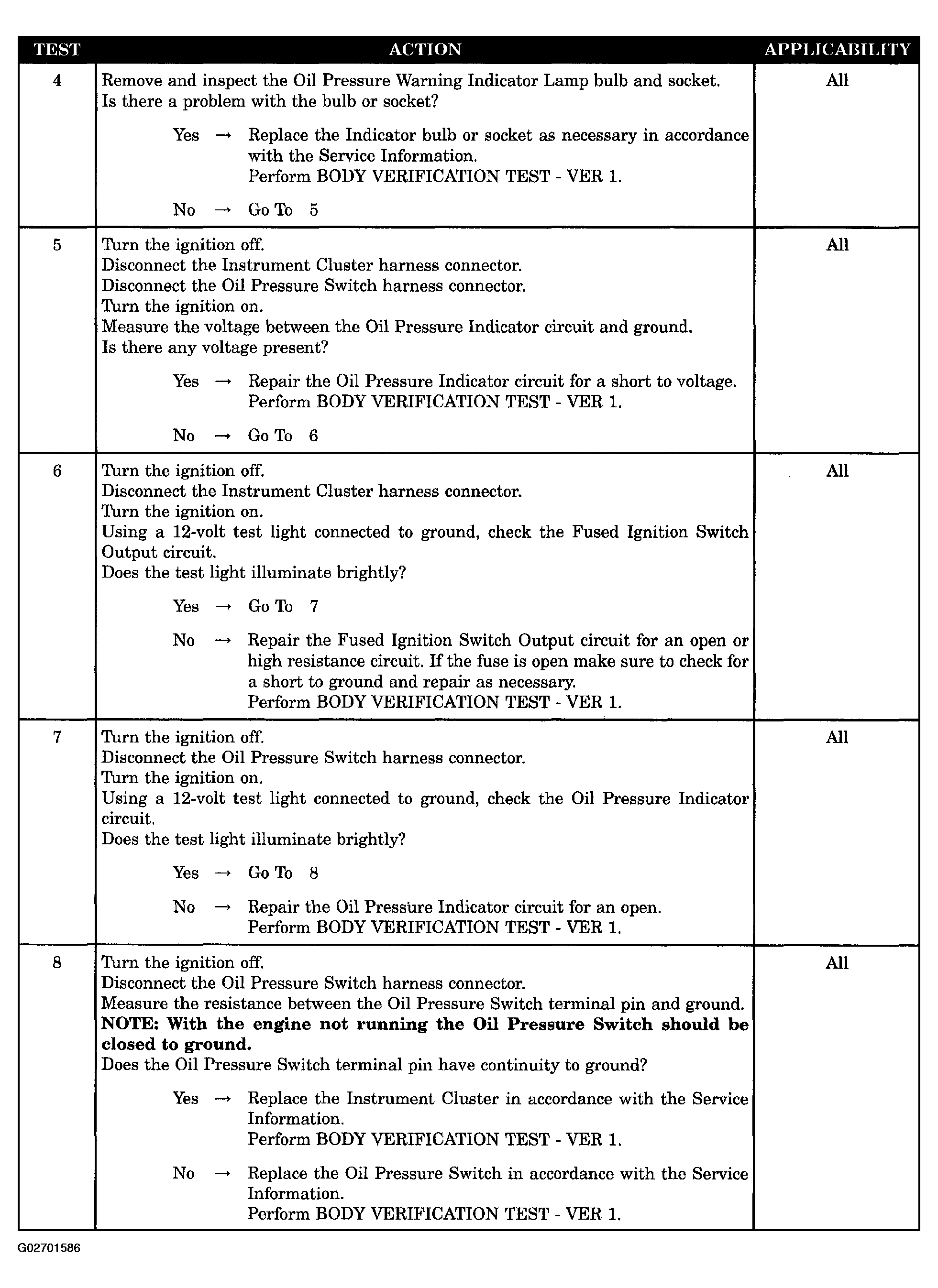

Fig 2: Oil Pressure Indicator Not Operating Properly - Diagnostic Procedure (2 Of 2)
G02701586Courtesy of DAIMLERCHRYSLER CORP.
