Malfunction Indicator Lamp Not Operating Properly - Diagnostic Procedure

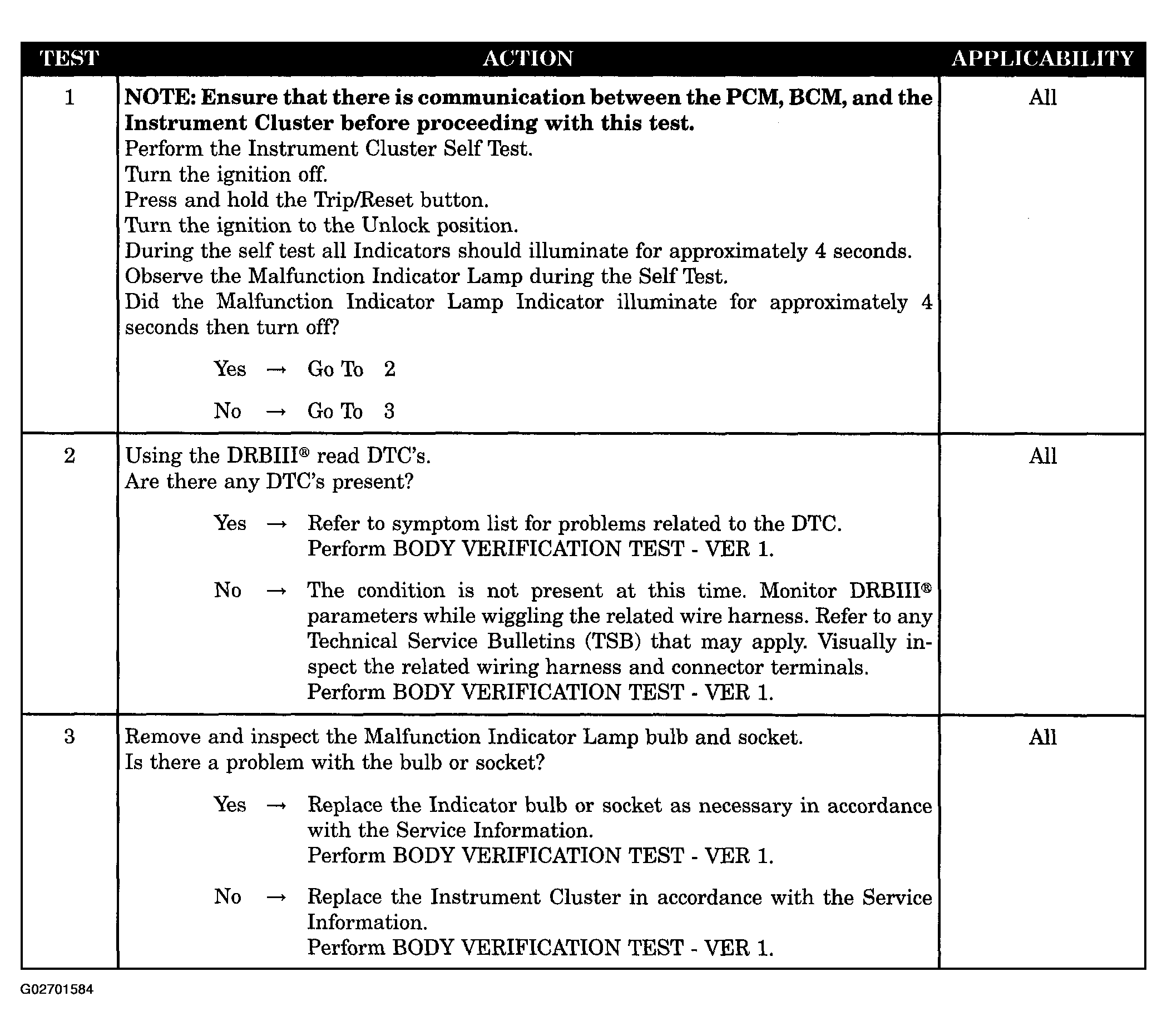

Fig 1: Malfunction Indicator Lamp Not Operating Properly - Diagnostic Procedure

G02701584

Courtesy of DAIMLERCHRYSLER CORP.
