Symptom: *LOW FUEL WARNING INDICATOR NOT OPERATING PROPERLY
>>
Low Fuel Warning Indicator Not Operating Properly - Diagnostic Procedure
Low Fuel Warning Indicator Not Operating Properly - Diagnostic Procedure

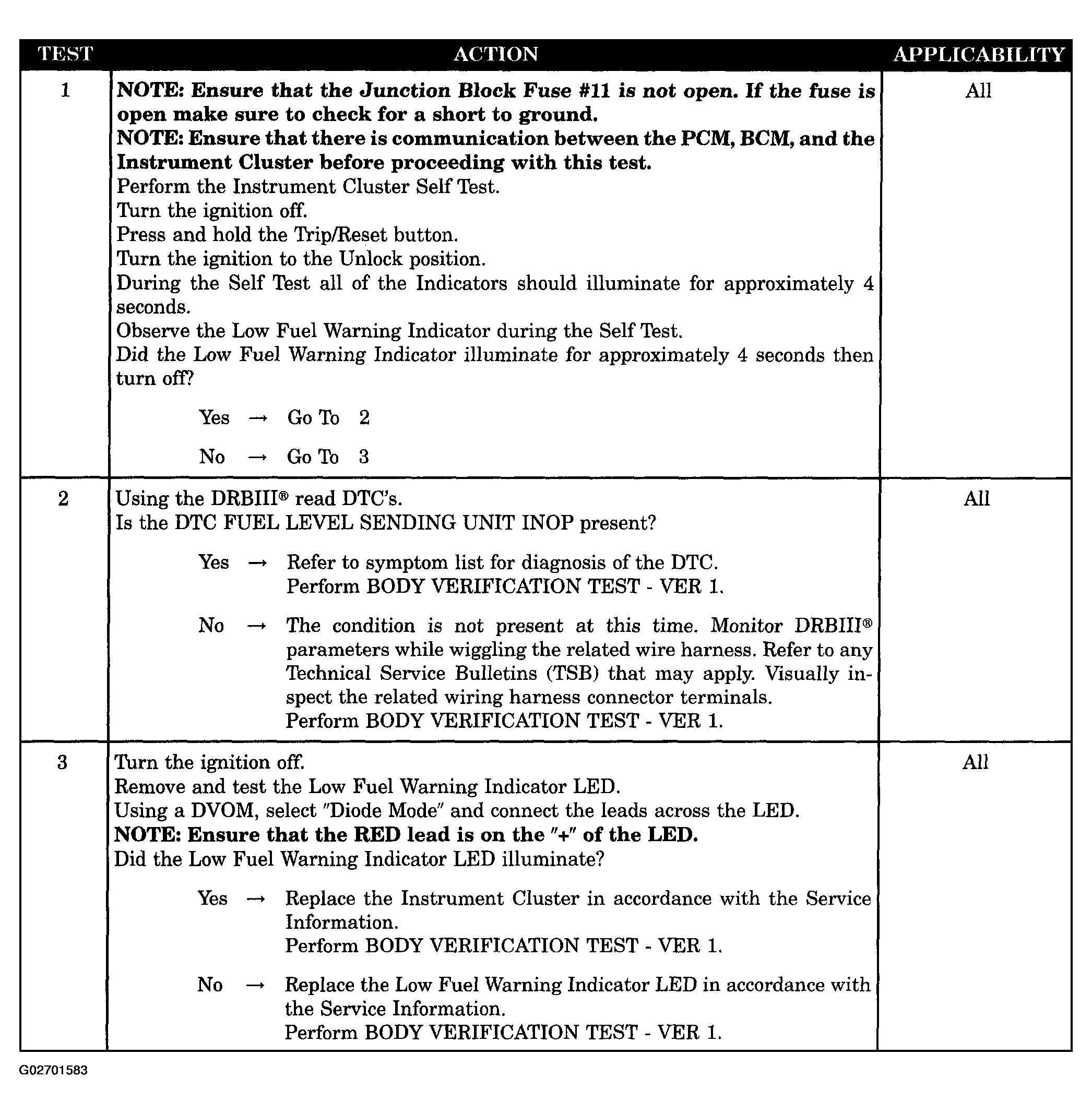

Fig 1: Low Fuel Warning Indicator Not Operating Properly - Diagnostic Procedure
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
