High Beam Indicator Inoperative - Diagnostic Procedure

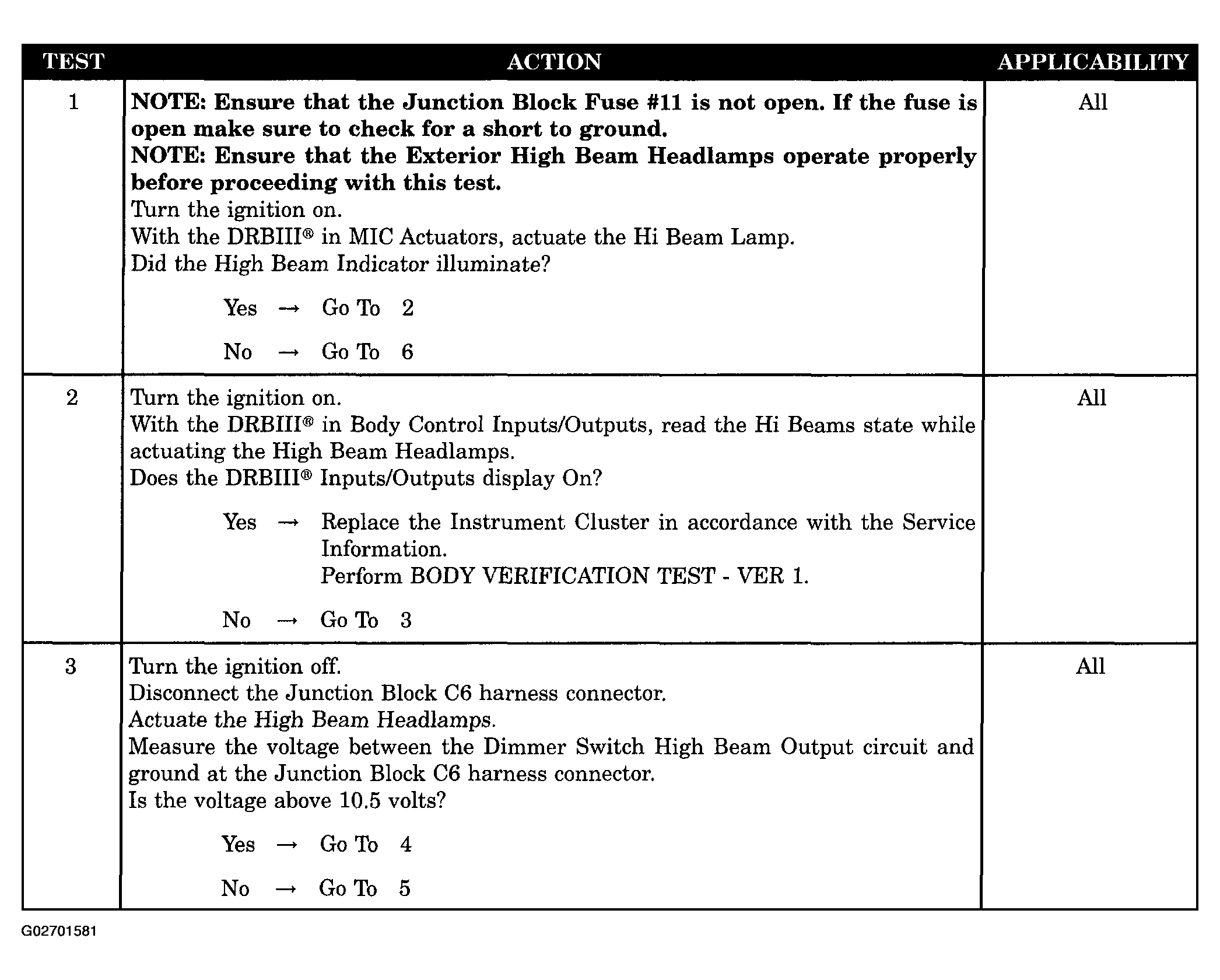

Fig 1: High Beam Indicator Inoperative - Diagnostic Procedure (1 Of 2)
G02701581Courtesy of DAIMLERCHRYSLER CORP.

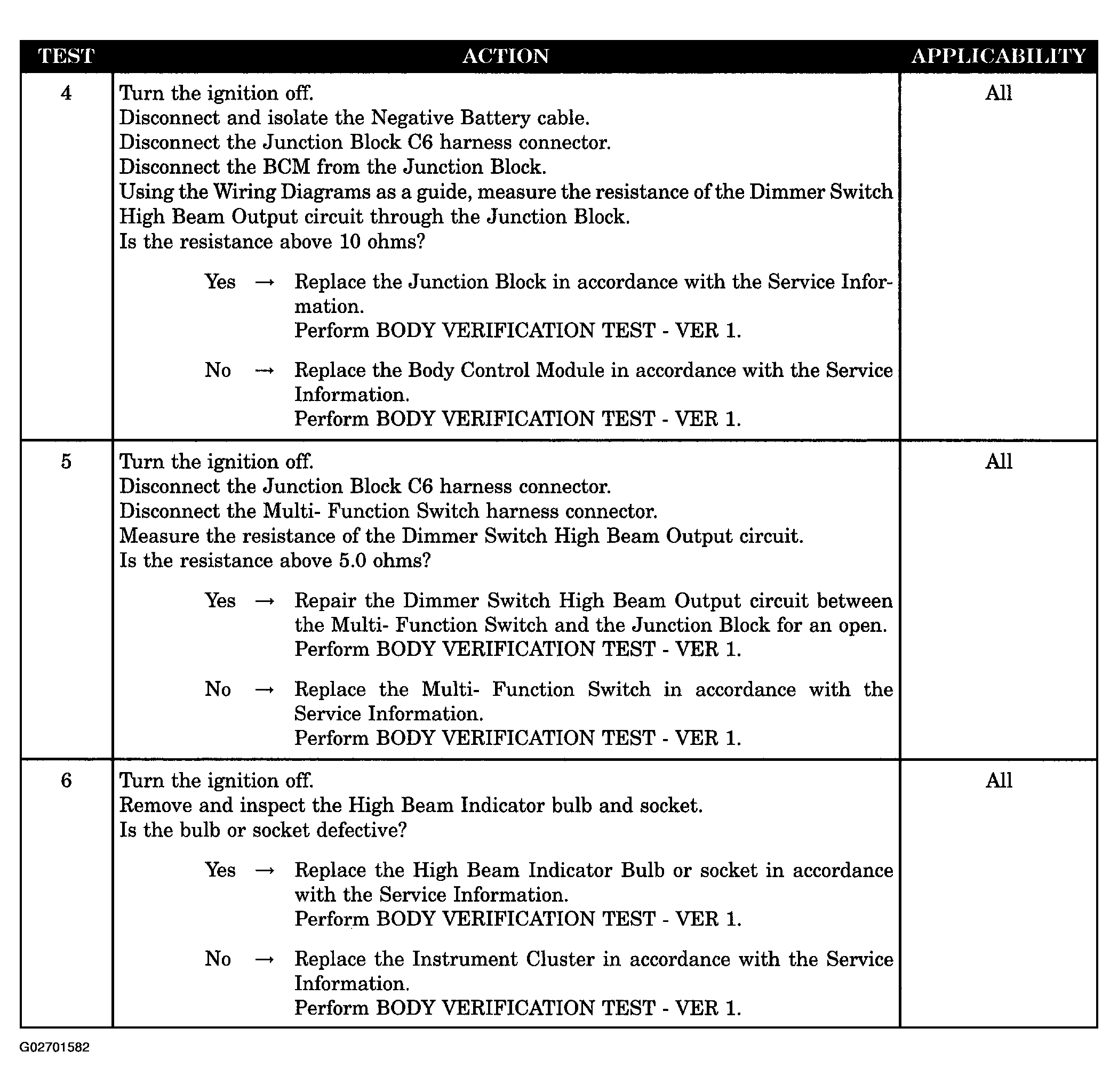

Fig 2: High Beam Indicator Inoperative - Diagnostic Procedure (2 Of 2)
G02701582Courtesy of DAIMLERCHRYSLER CORP.
