Home
>>
Chrysler
>>
2003
>>
Sebring LXi, 2D Convertible
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Gauges & Instrument Panels
>>
Body Diagnostic Procedures - Except Coupe
>>
Diagnostic Information And Procedures
>>
Instrument Cluster
>>
Symptom: *FUEL GAUGE NOT OPERATING PROPERLY
>>
Fuel Gauge Not Operating Properly - Diagnostic Procedure
Fuel Gauge Not Operating Properly - Diagnostic Procedure

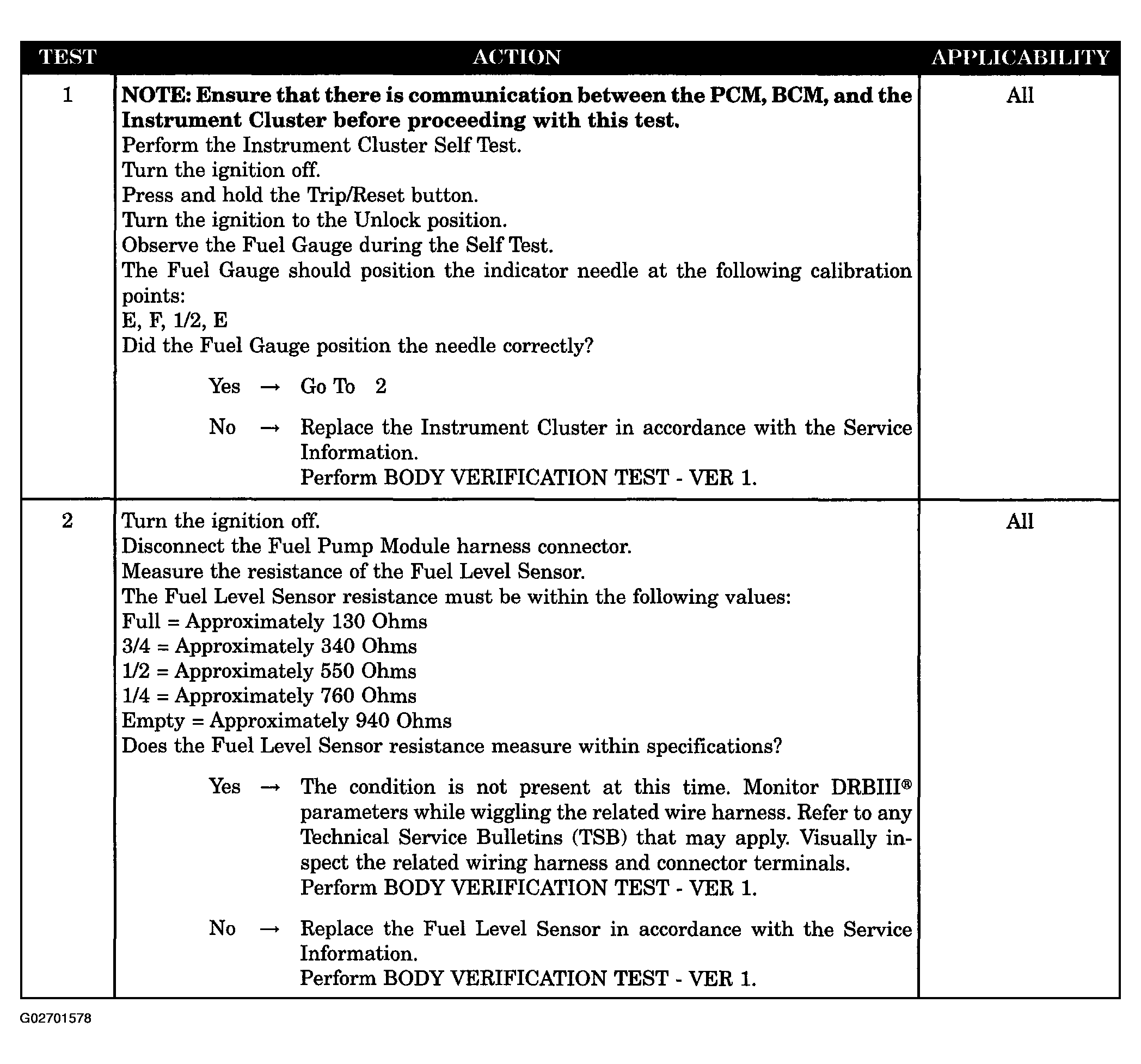

Fig 1: Fuel Gauge Not Operating Properly - Diagnostic Procedure
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
