Engine Coolant Temperature Gauge Inoperative Or Inaccurate - Diagnostic Procedure

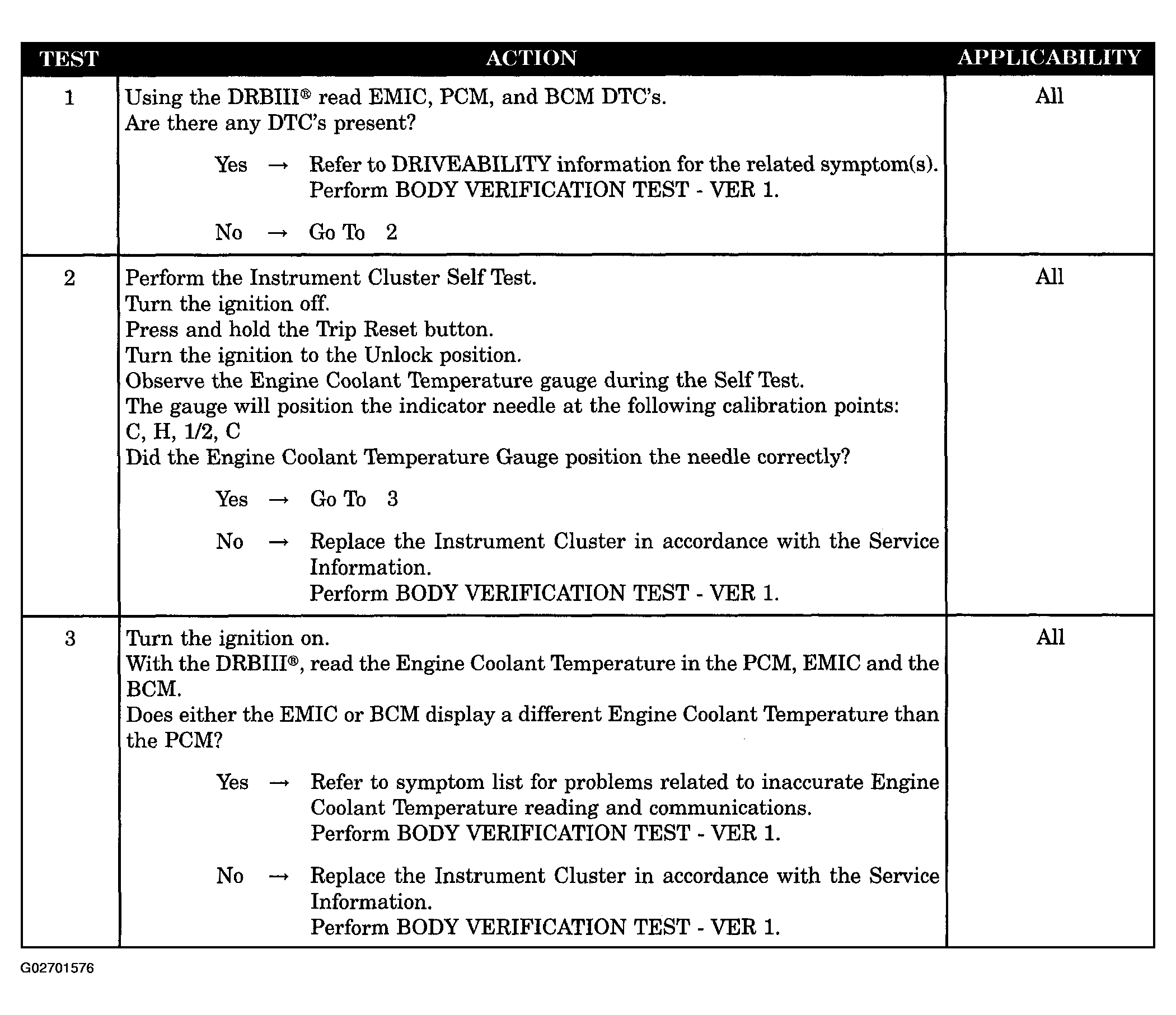

Fig 1: Engine Coolant Temperature Gauge Inoperative Or Inaccurate - Diagnostic Procedure
G02701576Courtesy of DAIMLERCHRYSLER CORP.
