Charging System Warning Indicator Not Operating Properly - Diagnostic Procedure

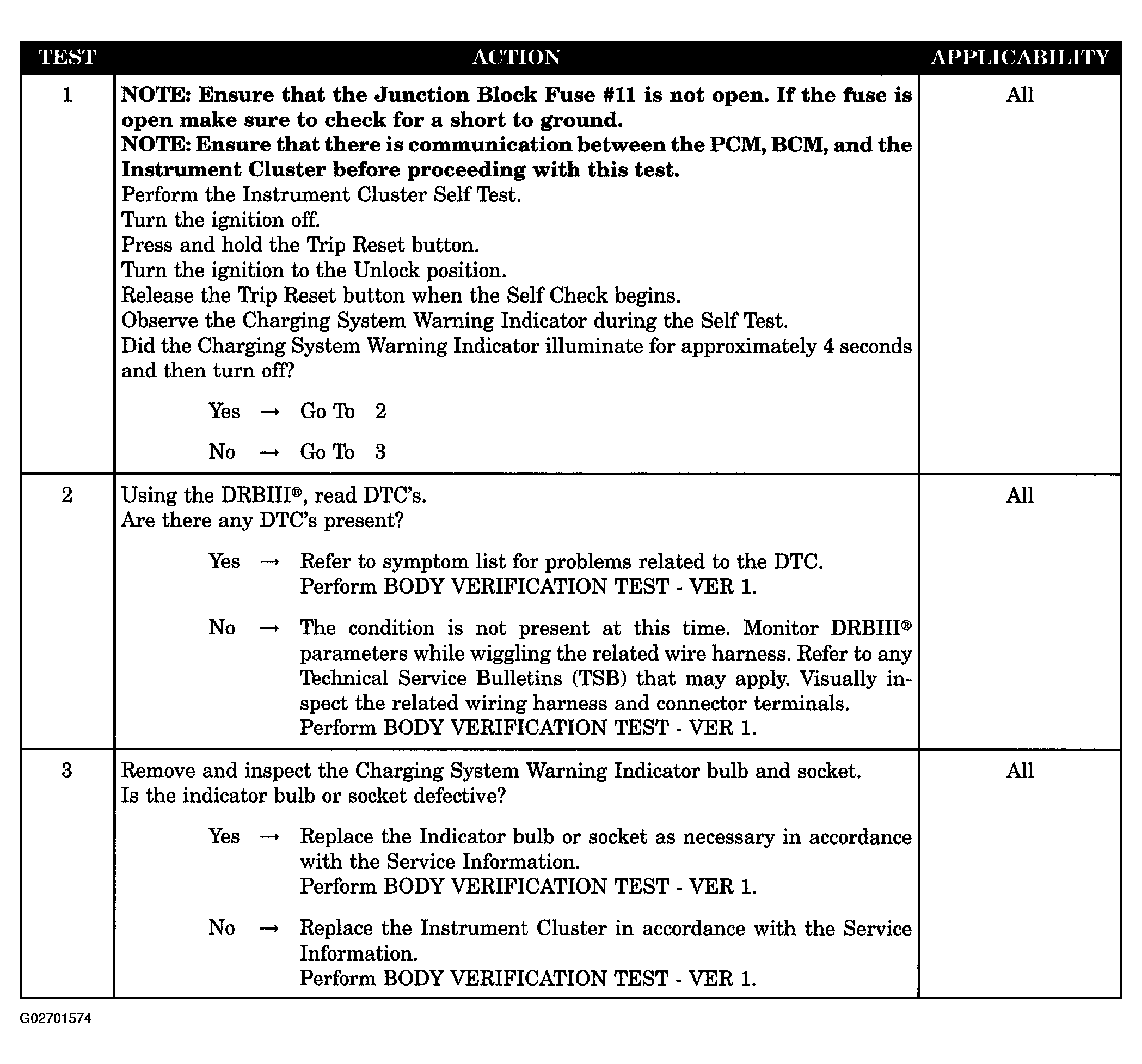

Fig 1: Charging System Warning Indicator Not Operating Properly - Diagnostic Procedure

G02701574

Courtesy of DAIMLERCHRYSLER CORP.
