Brake Warning Indicator Inoperative - Diagnostic Procedure

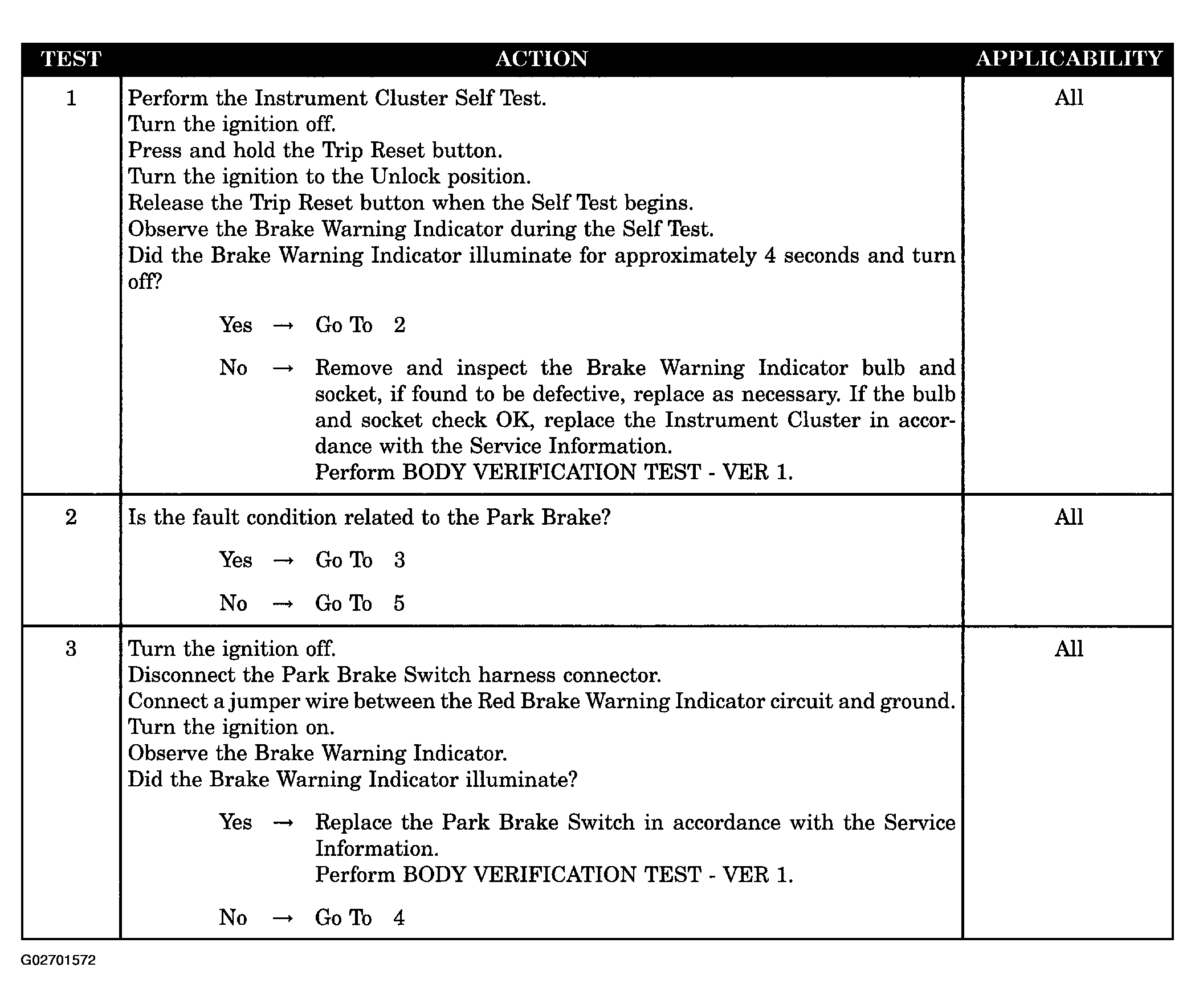

Fig 1: Brake Warning Indicator Inoperative - Diagnostic Procedure (1 Of 2)
G02701572Courtesy of DAIMLERCHRYSLER CORP.

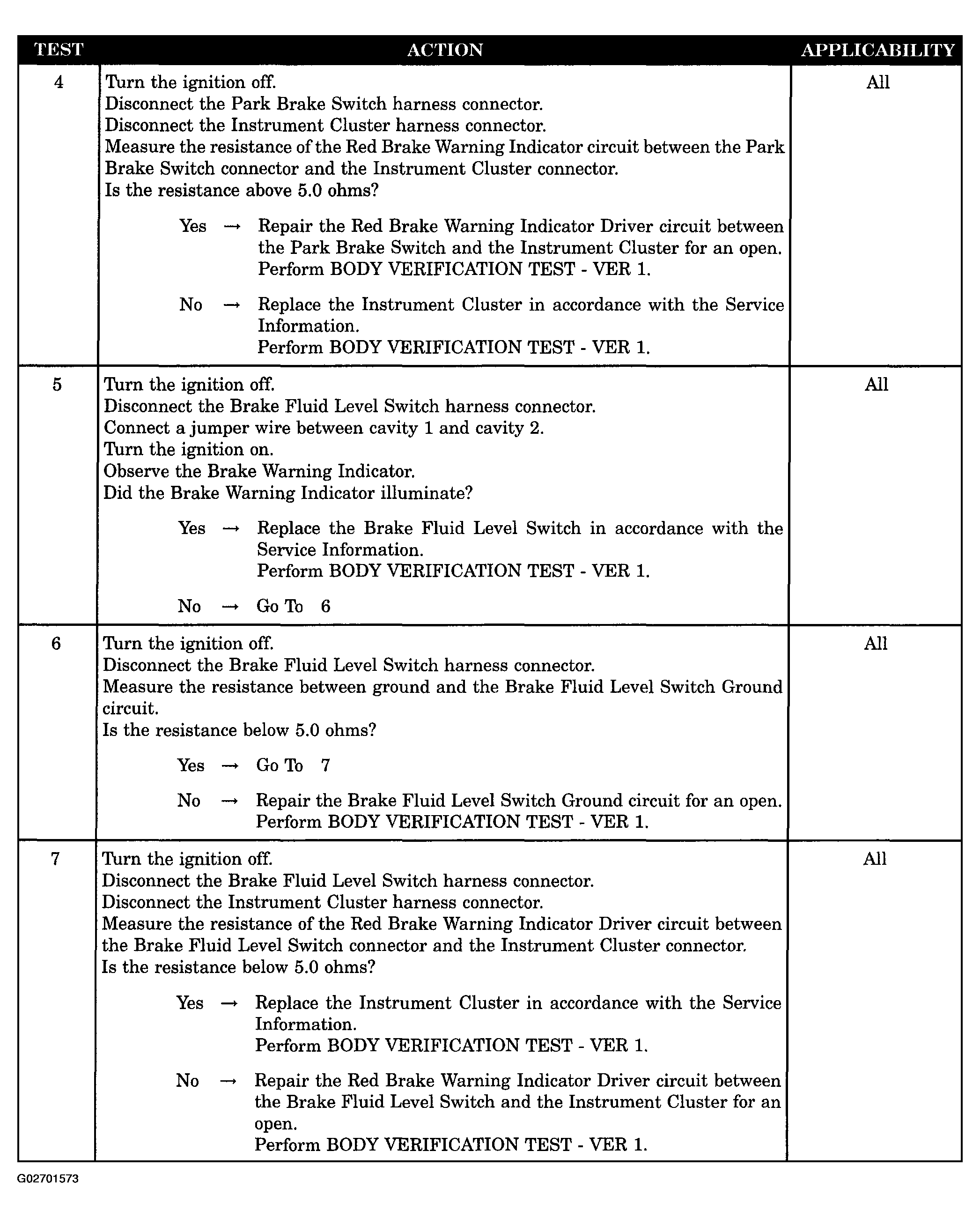

Fig 2: Brake Warning Indicator Inoperative - Diagnostic Procedure (2 Of 2)
G02701573Courtesy of DAIMLERCHRYSLER CORP.
