Mode Door Feedback Failure - Diagnostic Procedure

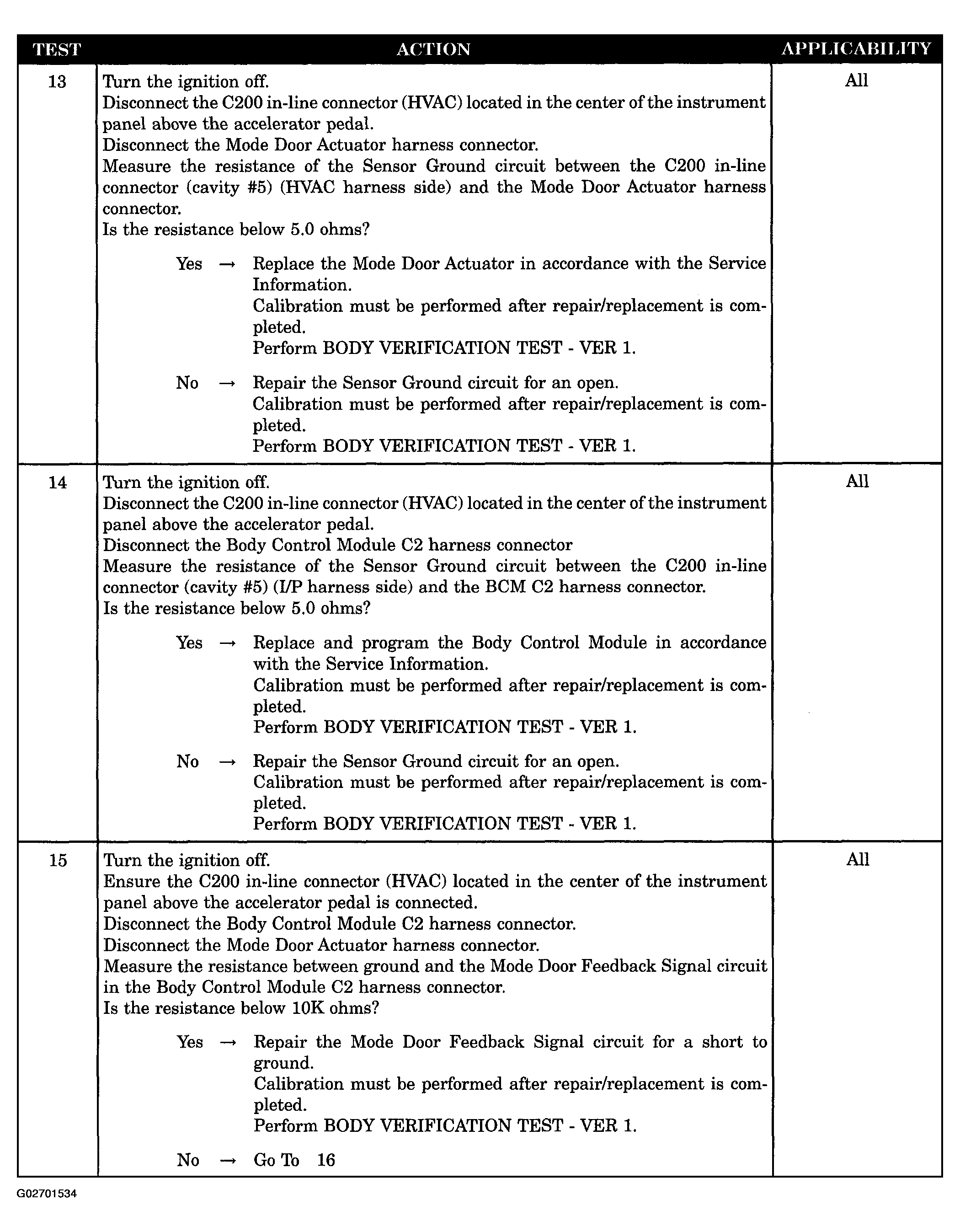

Fig 1: Mode Door Feedback Failure - Diagnostic Procedure (1 Of 7)

Courtesy of DAIMLERCHRYSLER CORP.

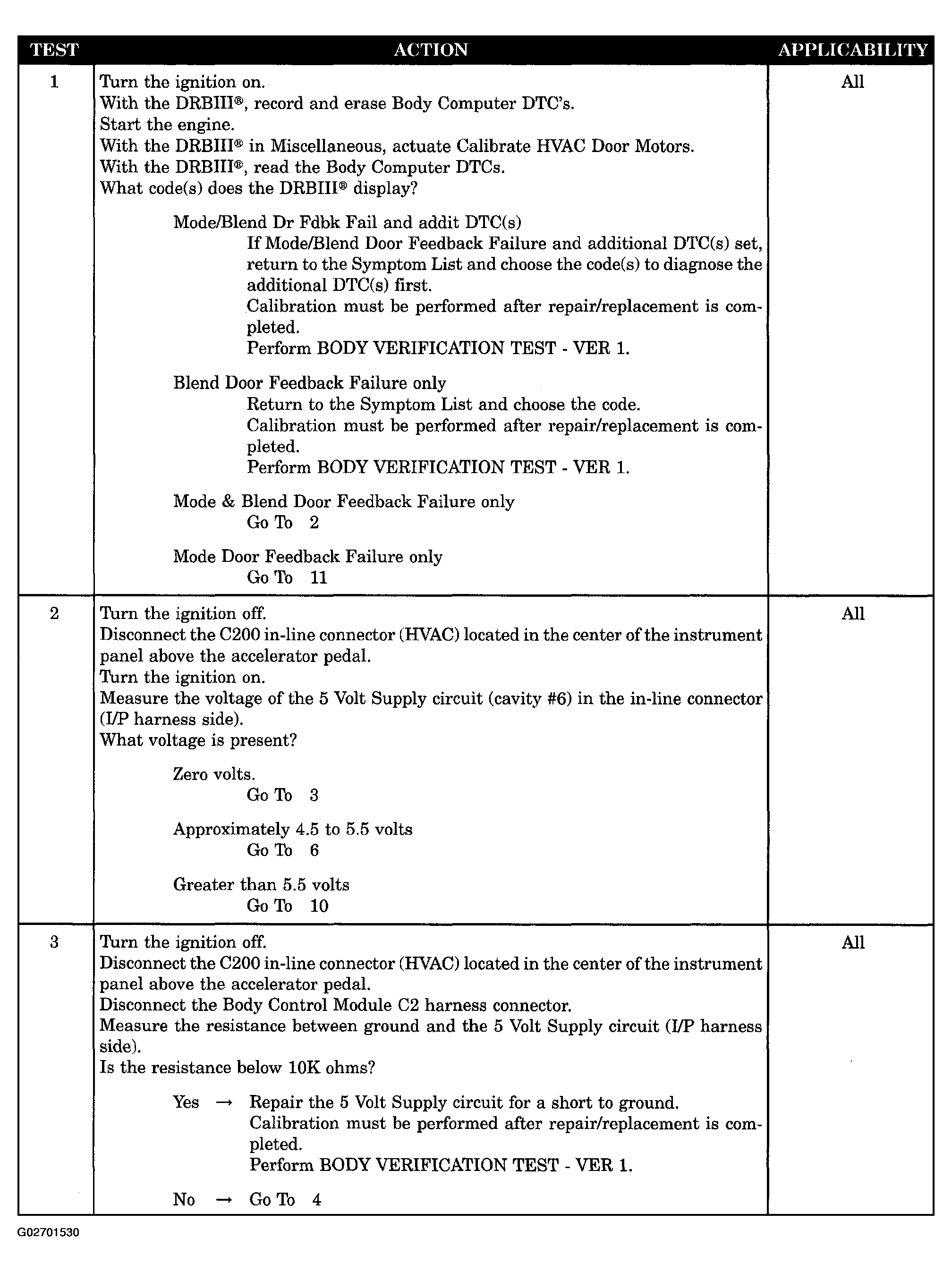

Fig 2: Mode Door Feedback Failure - Diagnostic Procedure (2 Of 7)

Courtesy of DAIMLERCHRYSLER CORP.

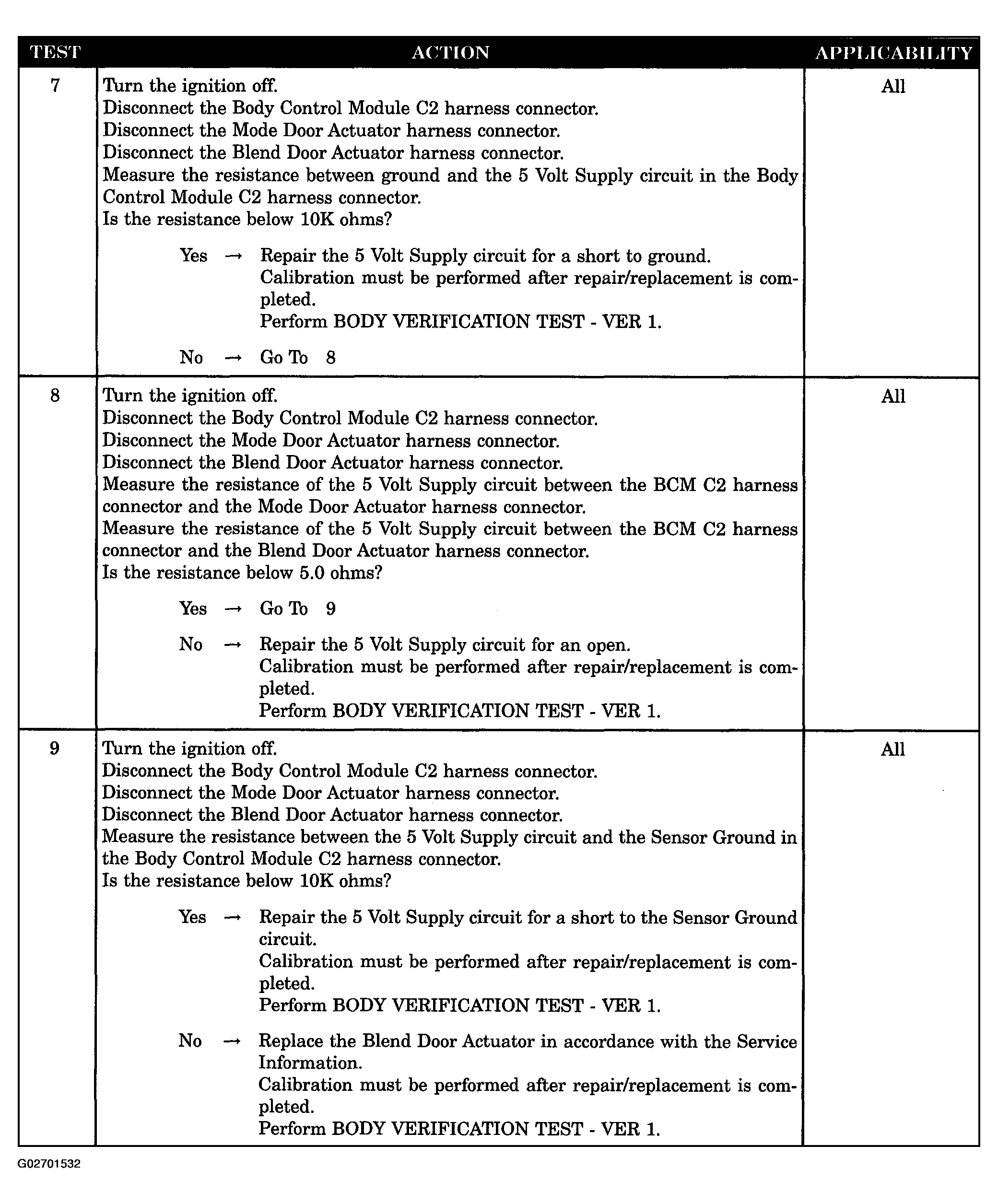

Fig 3: Mode Door Feedback Failure - Diagnostic Procedure (3 Of 7)

Courtesy of DAIMLERCHRYSLER CORP.

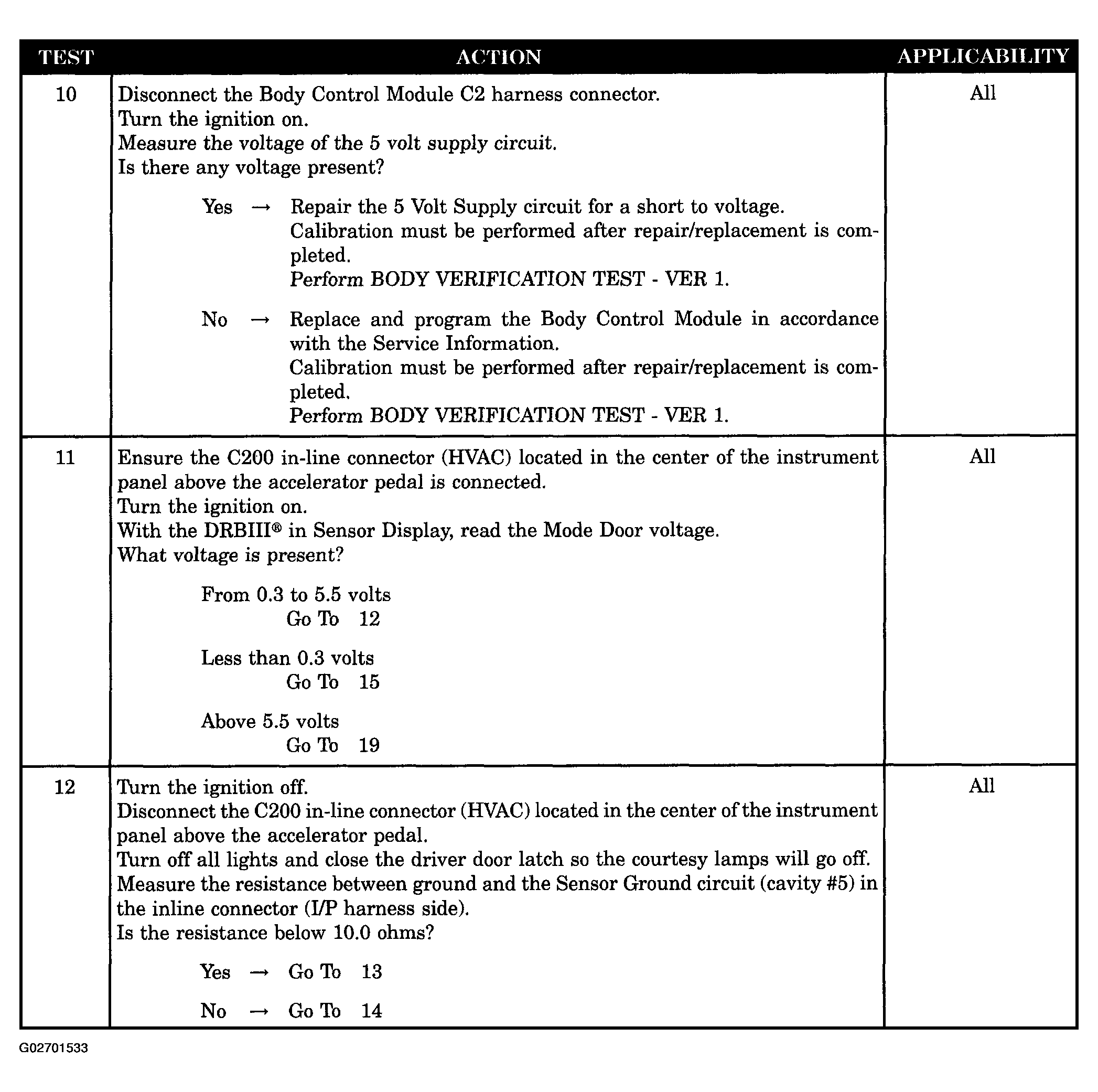

Fig 4: Mode Door Feedback Failure - Diagnostic Procedure (4 Of 7)

Courtesy of DAIMLERCHRYSLER CORP.

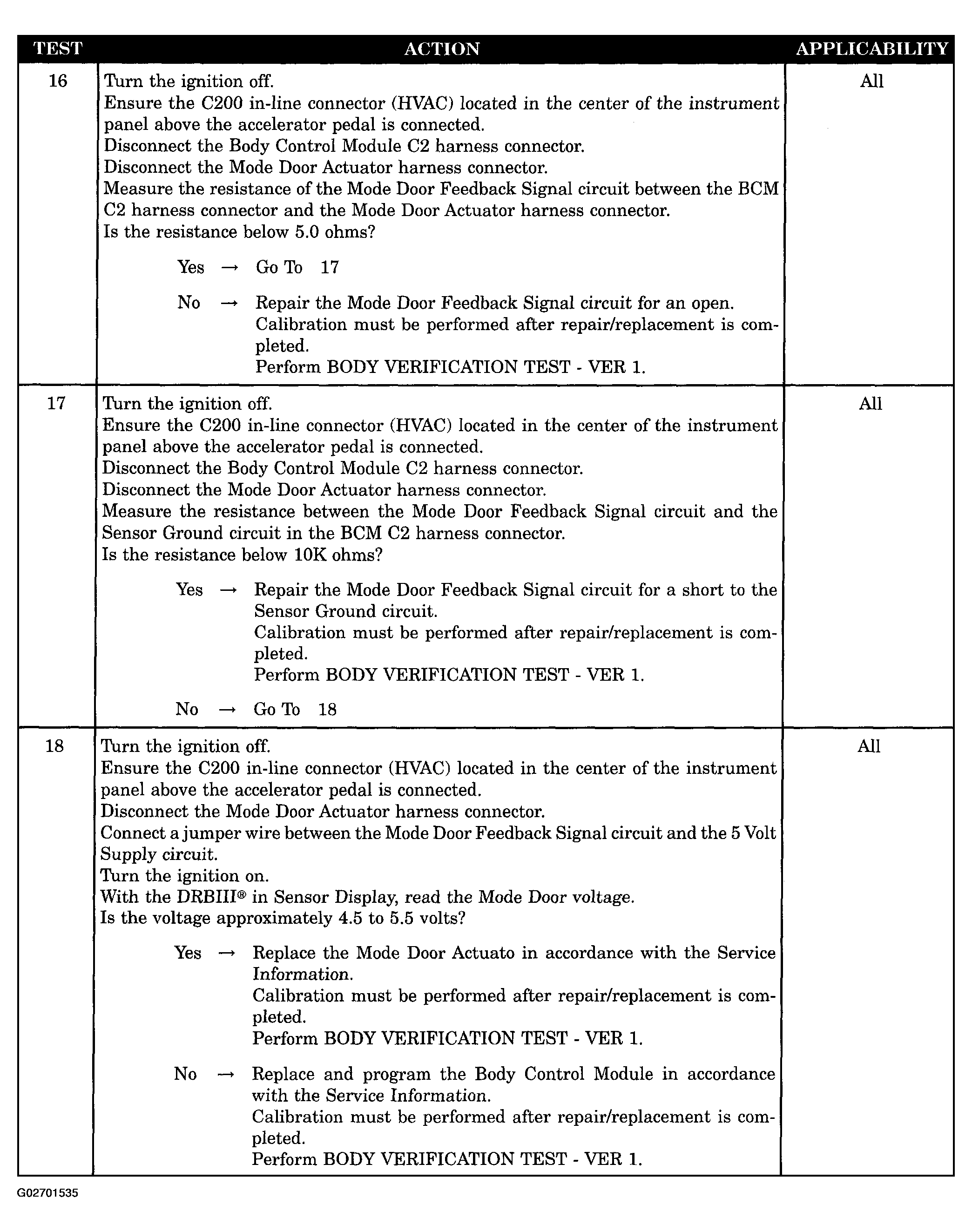

Fig 5: Mode Door Feedback Failure - Diagnostic Procedure (5 Of 7)

Courtesy of DAIMLERCHRYSLER CORP.

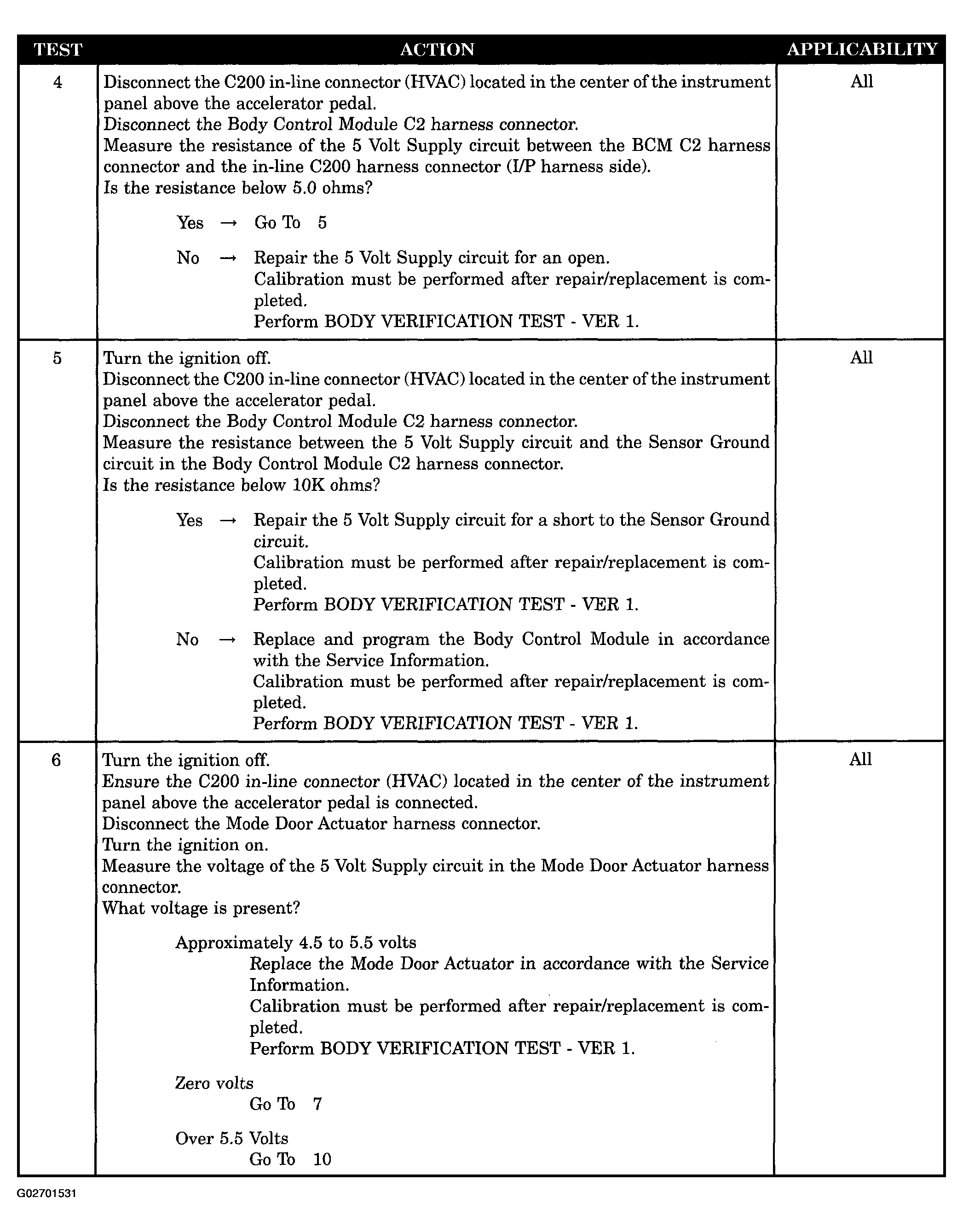

Fig 6: Mode Door Feedback Failure - Diagnostic Procedure (6 Of 7)

Courtesy of DAIMLERCHRYSLER CORP.

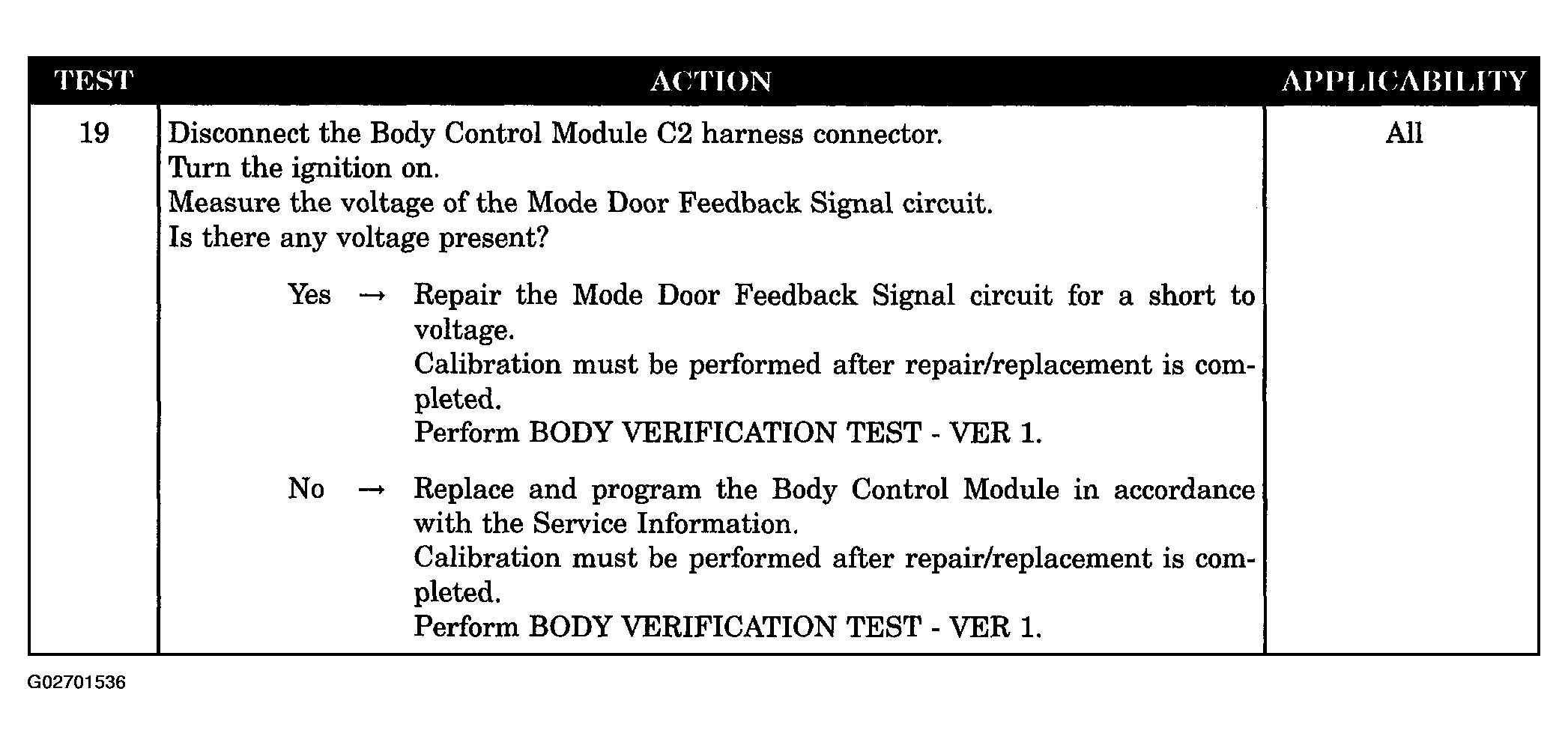

Fig 7: Mode Door Feedback Failure - Diagnostic Procedure (7 Of 7)

Courtesy of DAIMLERCHRYSLER CORP.
