Common Output Shorted To Battery - Diagnostic Procedure

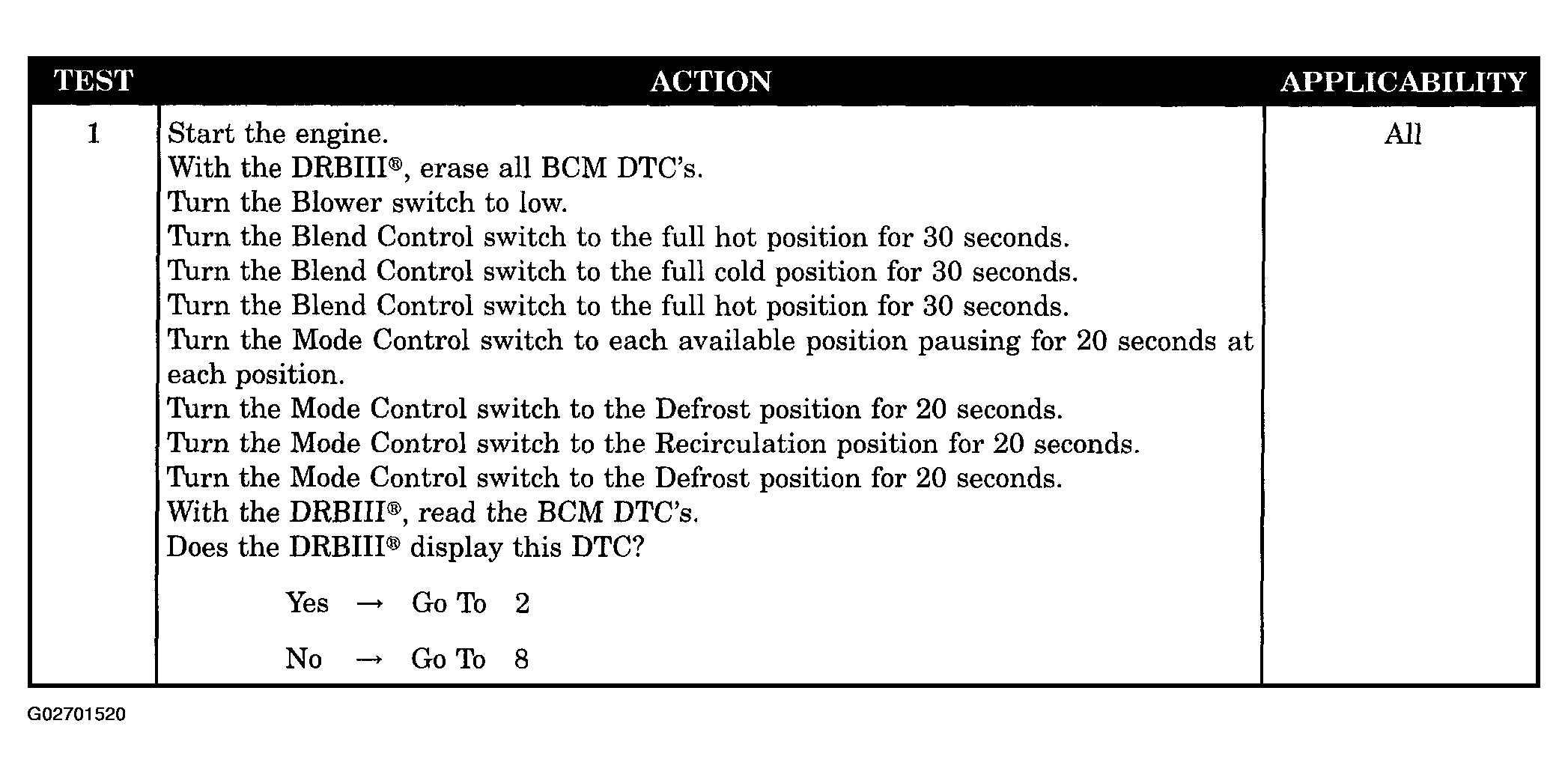

Fig 1: Common Output Shorted To Battery - Diagnostic Procedure (1 Of 4)
G02701520Courtesy of DAIMLERCHRYSLER CORP.

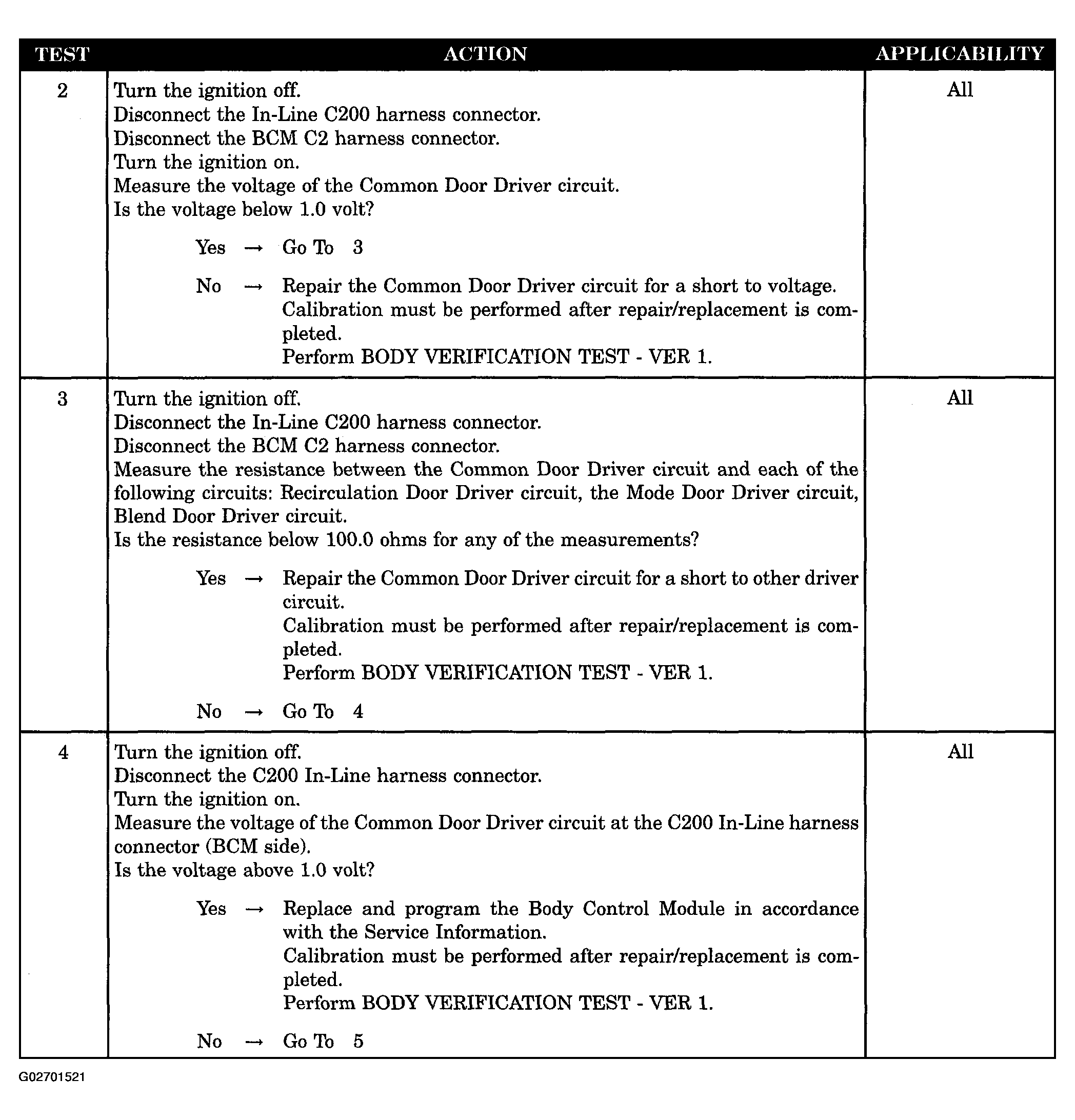

Fig 2: Common Output Shorted To Battery - Diagnostic Procedure (2 Of 4)
G02701521Courtesy of DAIMLERCHRYSLER CORP.

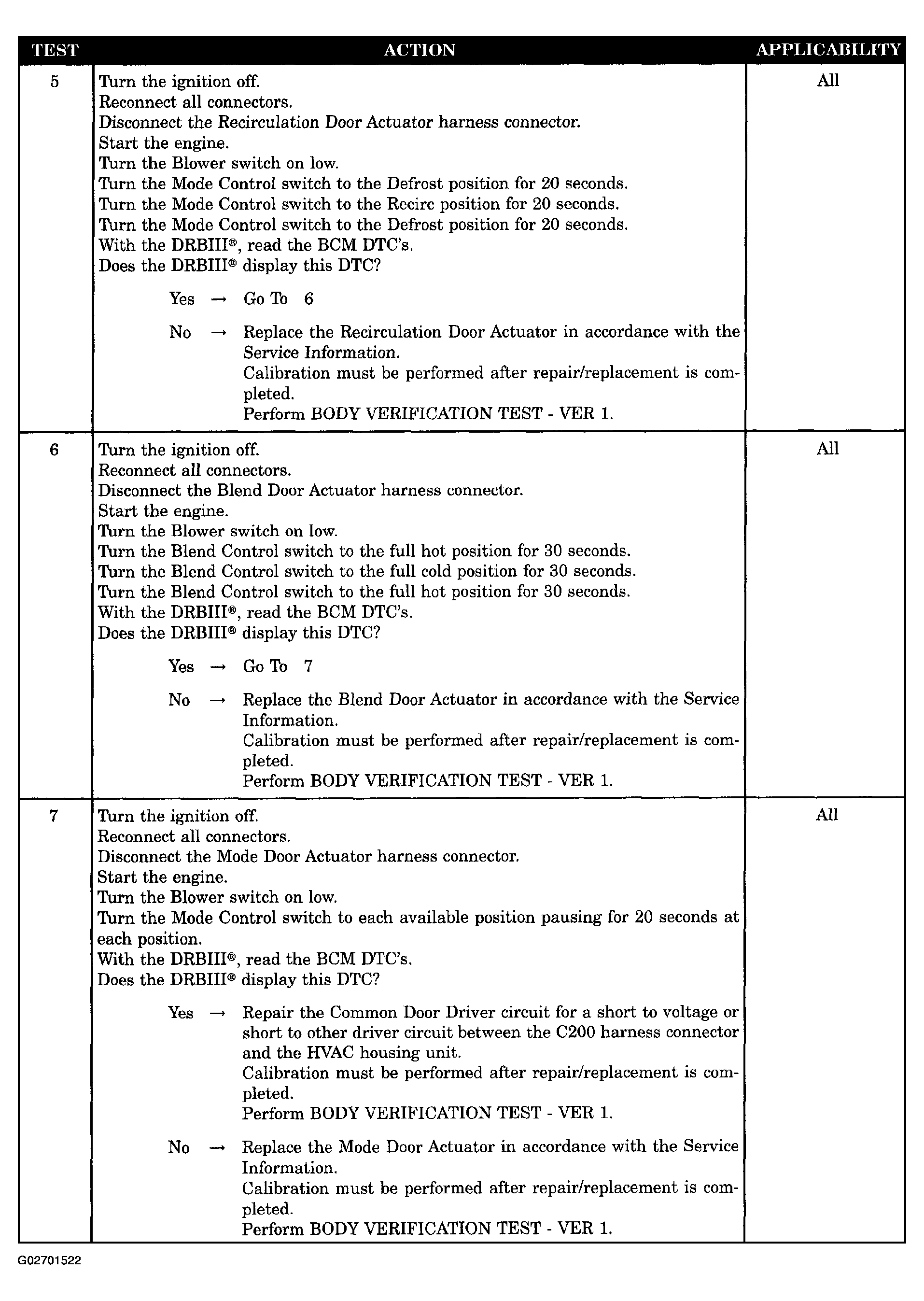

Fig 3: Common Output Shorted To Battery - Diagnostic Procedure (3 Of 4)
G02701522Courtesy of DAIMLERCHRYSLER CORP.

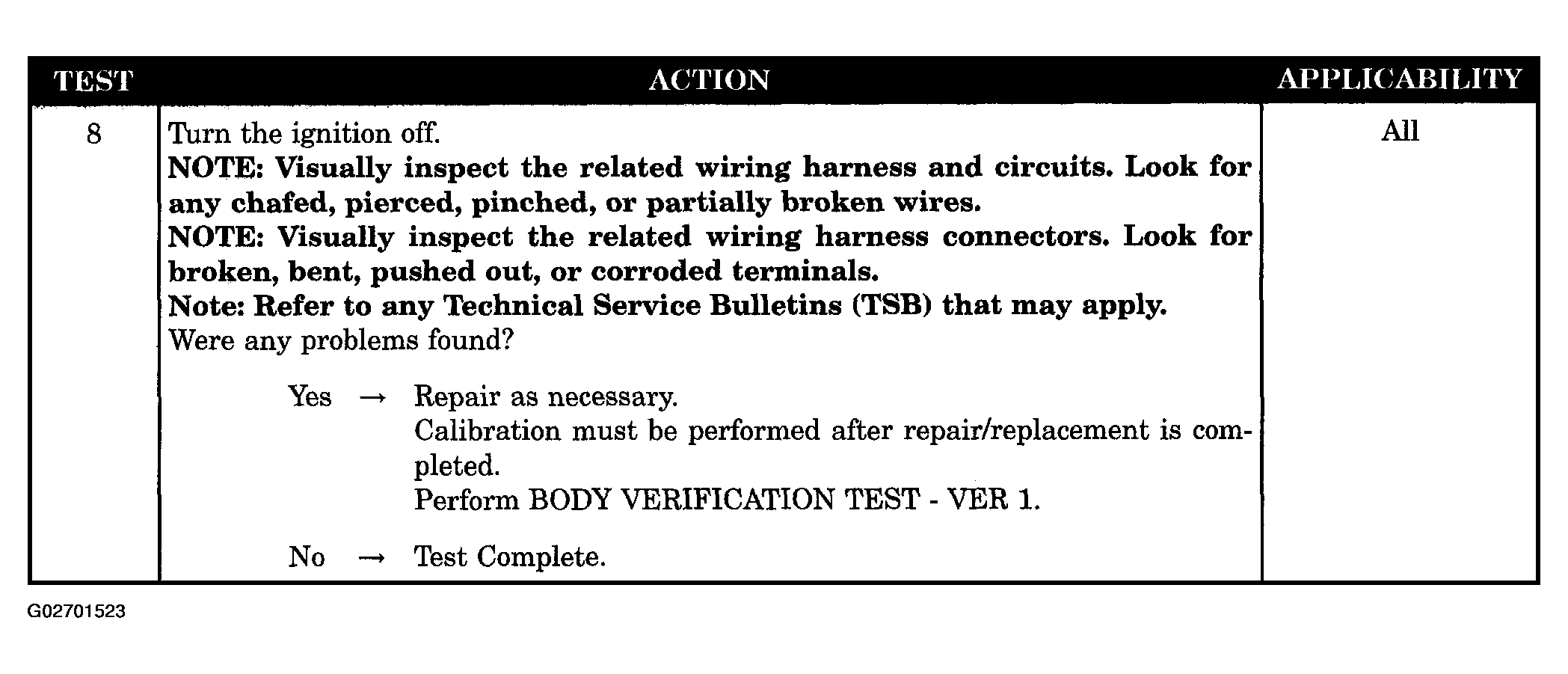

Fig 4: Common Output Shorted To Battery - Diagnostic Procedure (4 Of 4)
G02701523Courtesy of DAIMLERCHRYSLER CORP.
