Blend Door Stall Test Failure - Diagnostic Procedure

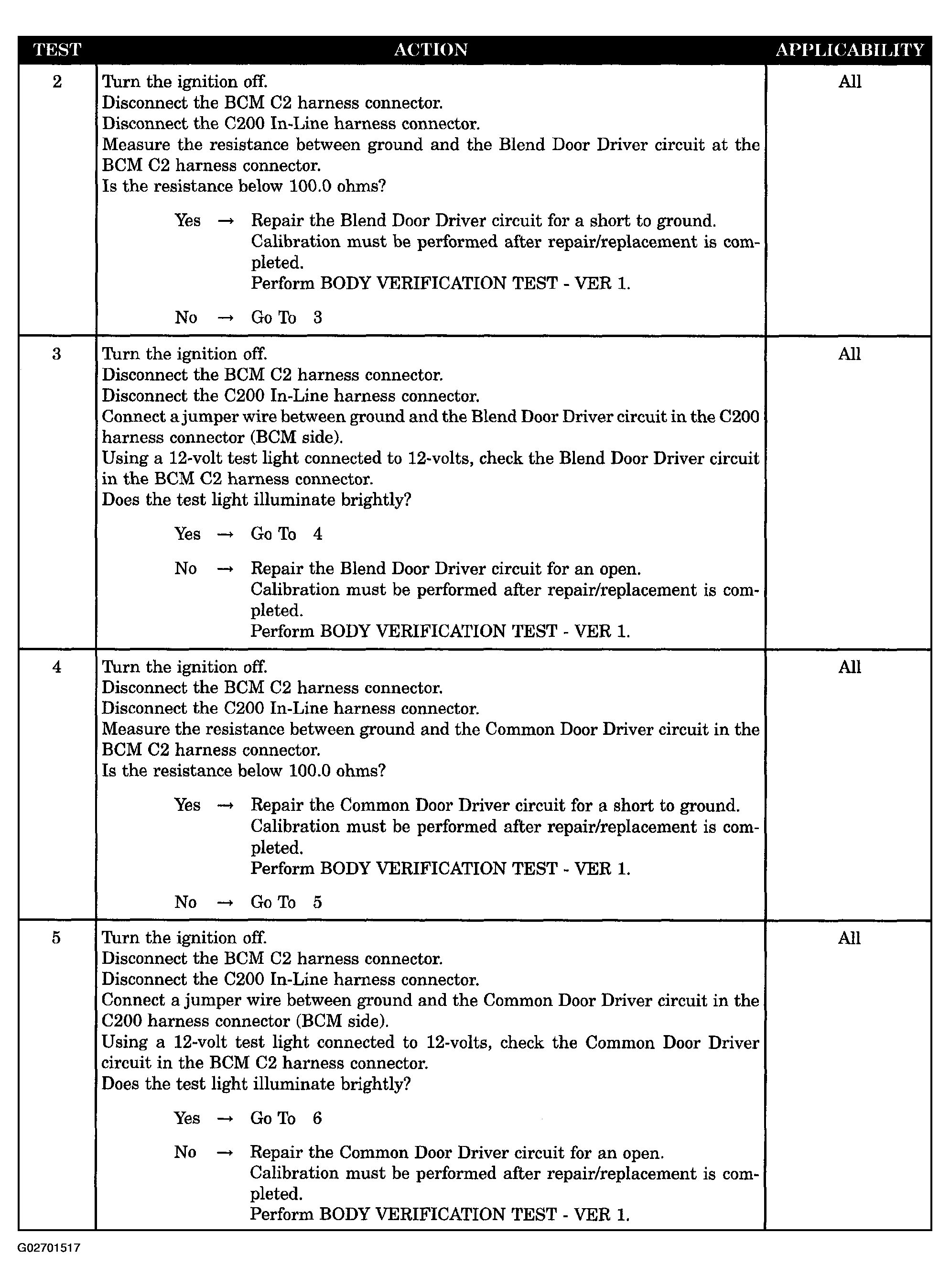

Fig 1: Blend Door Stall Test Failure - Diagnostic Procedure (1 Of 4)

Courtesy of DAIMLERCHRYSLER CORP.

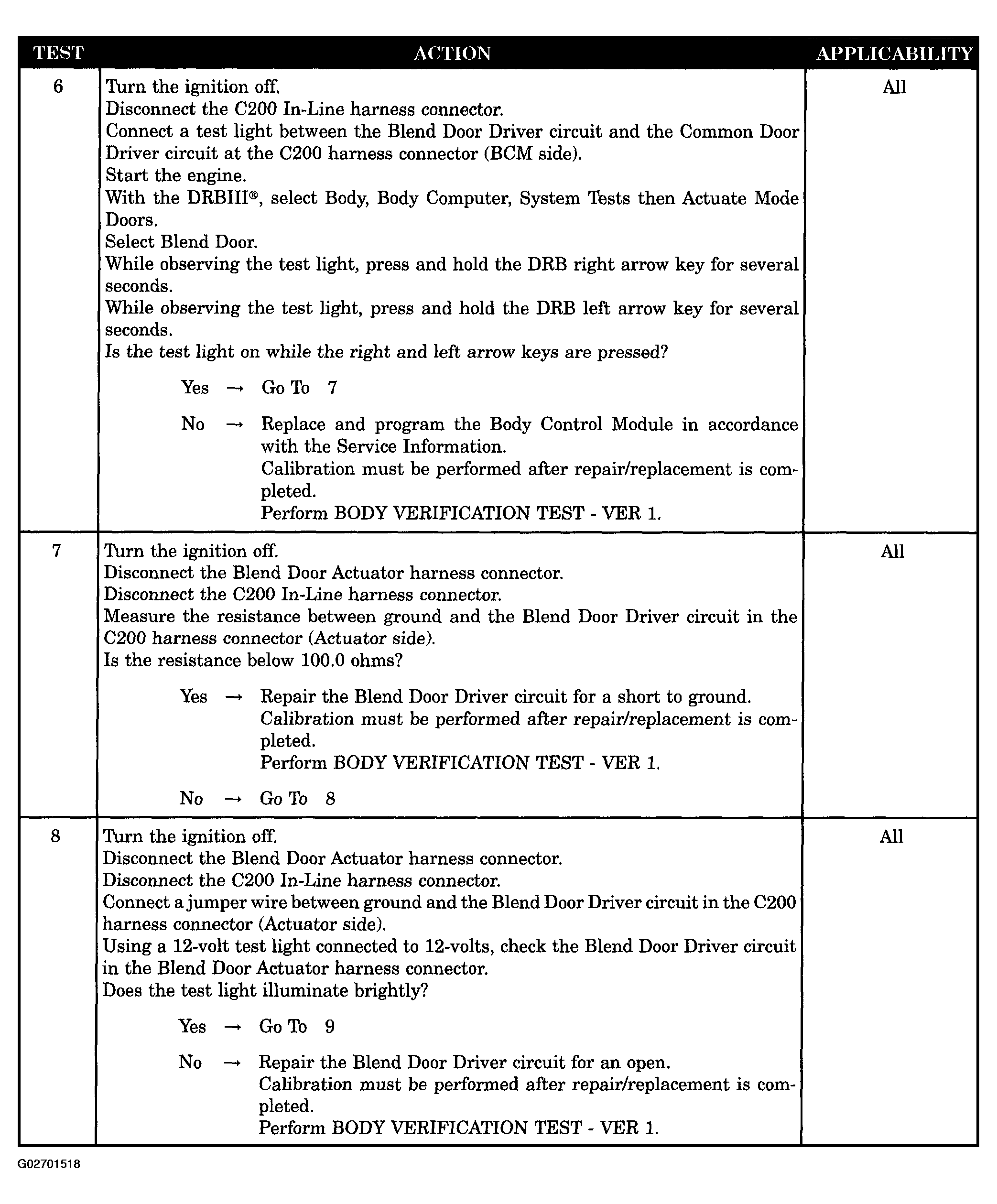

Fig 2: Blend Door Stall Test Failure - Diagnostic Procedure (2 Of 4)

Courtesy of DAIMLERCHRYSLER CORP.

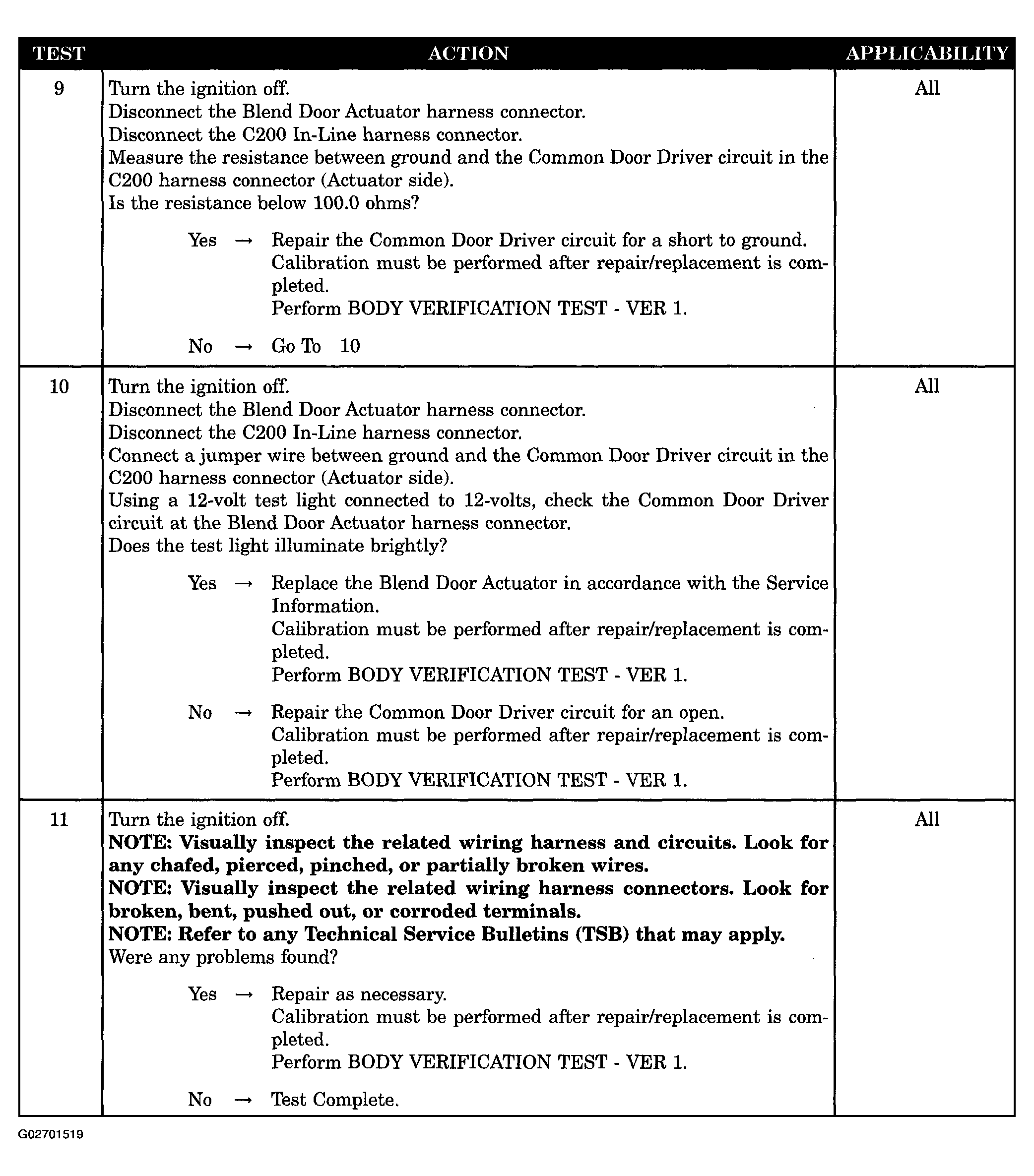

Fig 3: Blend Door Stall Test Failure - Diagnostic Procedure (3 Of 4)

Courtesy of DAIMLERCHRYSLER CORP.

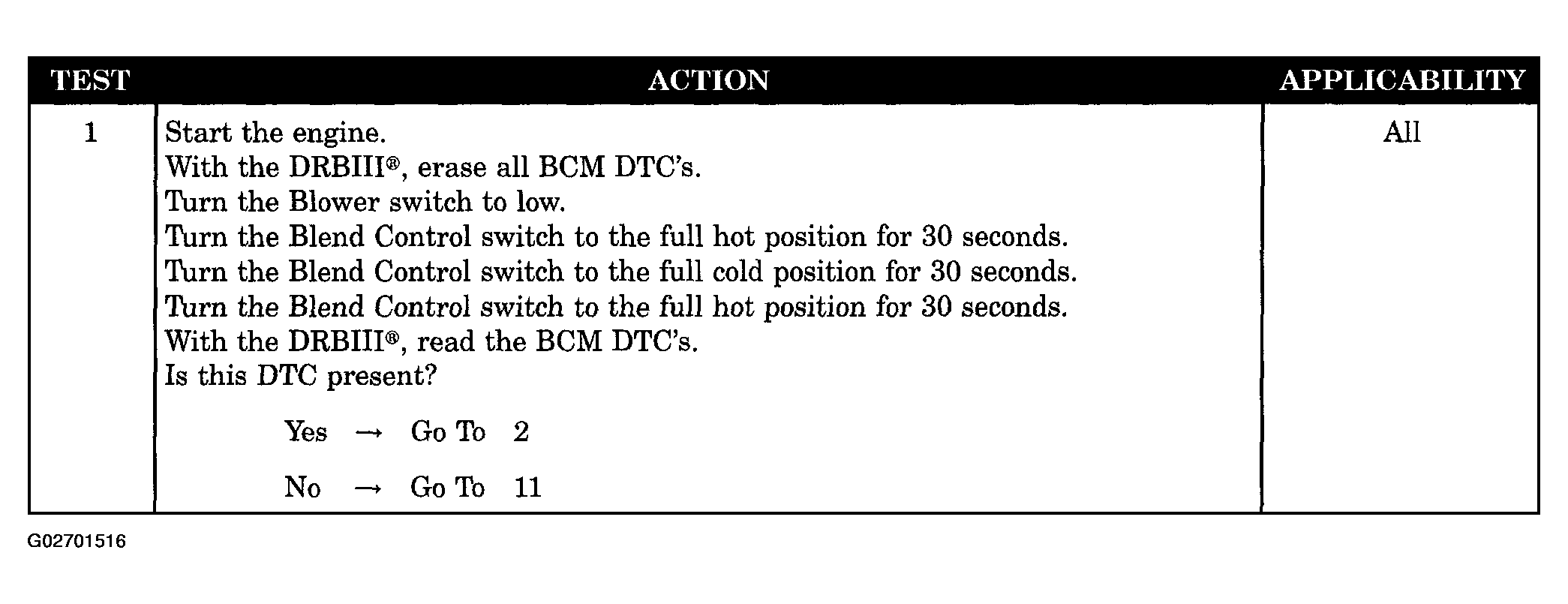

Fig 4: Blend Door Stall Test Failure - Diagnostic Procedure (4 Of 4)

Courtesy of DAIMLERCHRYSLER CORP.
