A/C Head, EBL Switch Stuck Diagnostic Procedure

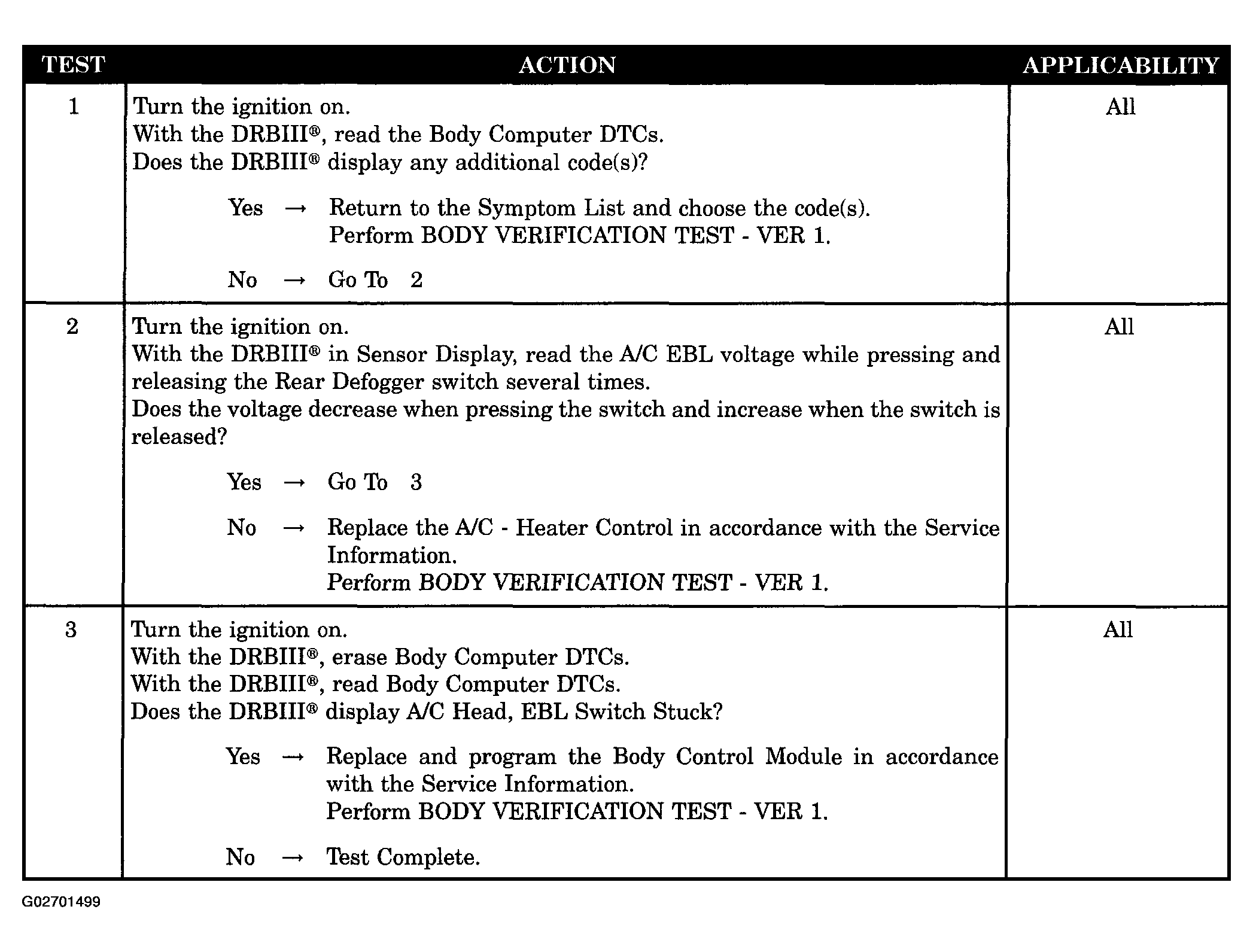

Fig 1: A/C Head, EBL Switch Stuck Diagnostic Procedure

G02701499

Courtesy of DAIMLERCHRYSLER CORP.
