A/C Head, EBL Input Shorted To Ground Diagnostic Procedure

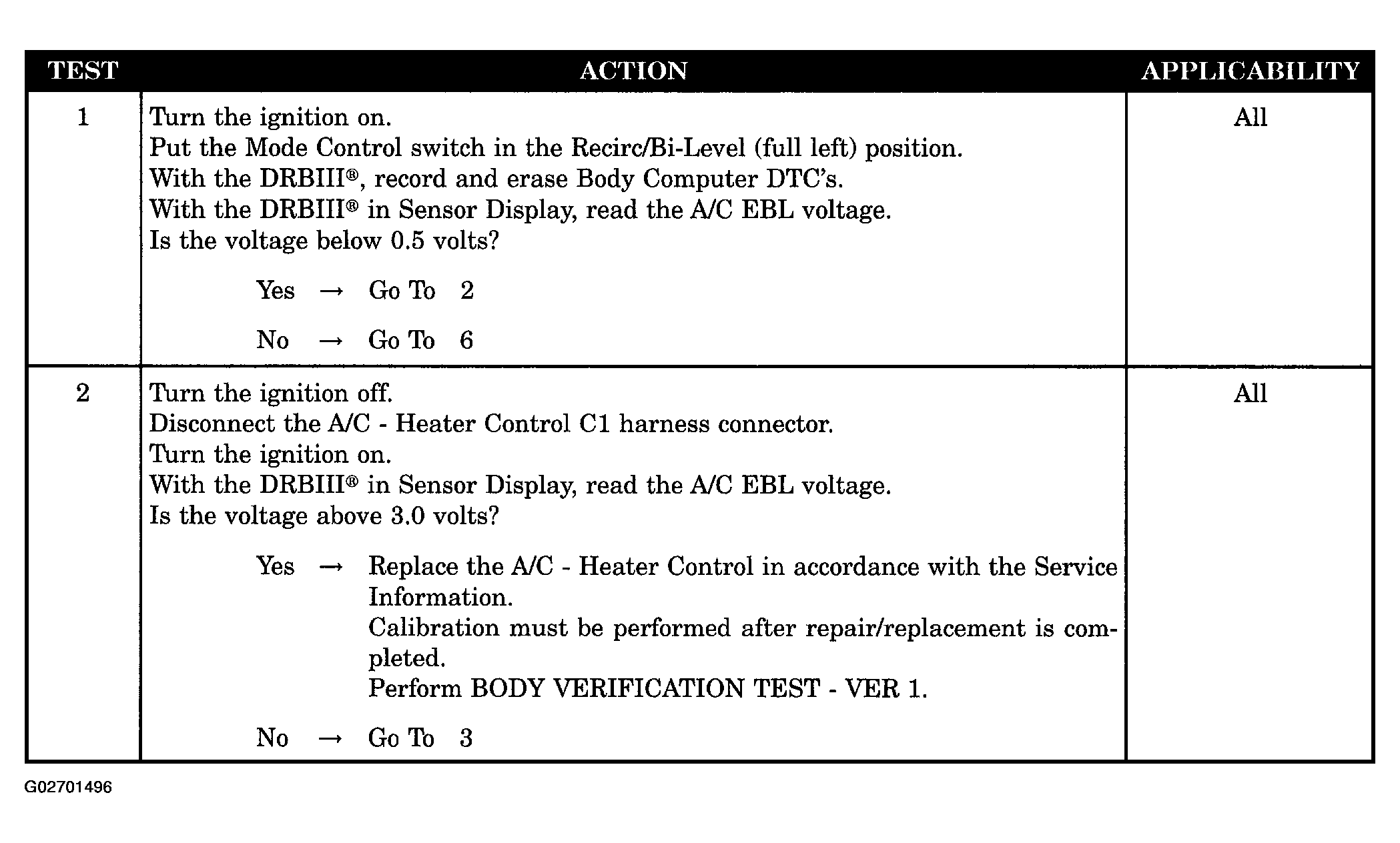

Fig 1: A/C Head, EBL Input Shorted To Ground Diagnostic Procedure (1 Of 3)
G02701496Courtesy of DAIMLERCHRYSLER CORP.

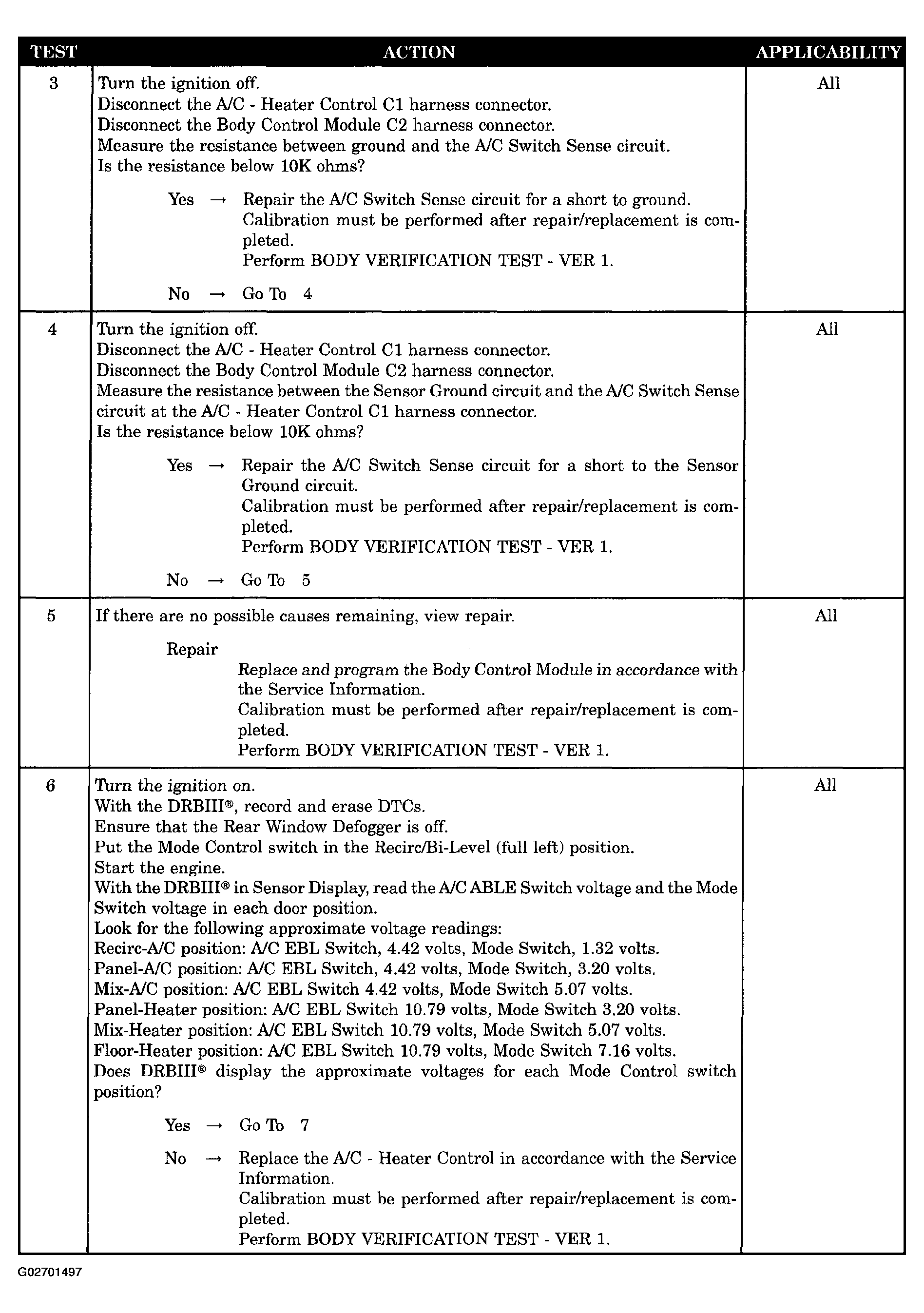

Fig 2: A/C Head, EBL Input Shorted To Ground Diagnostic Procedure (2 Of 3)
G02701497Courtesy of DAIMLERCHRYSLER CORP.

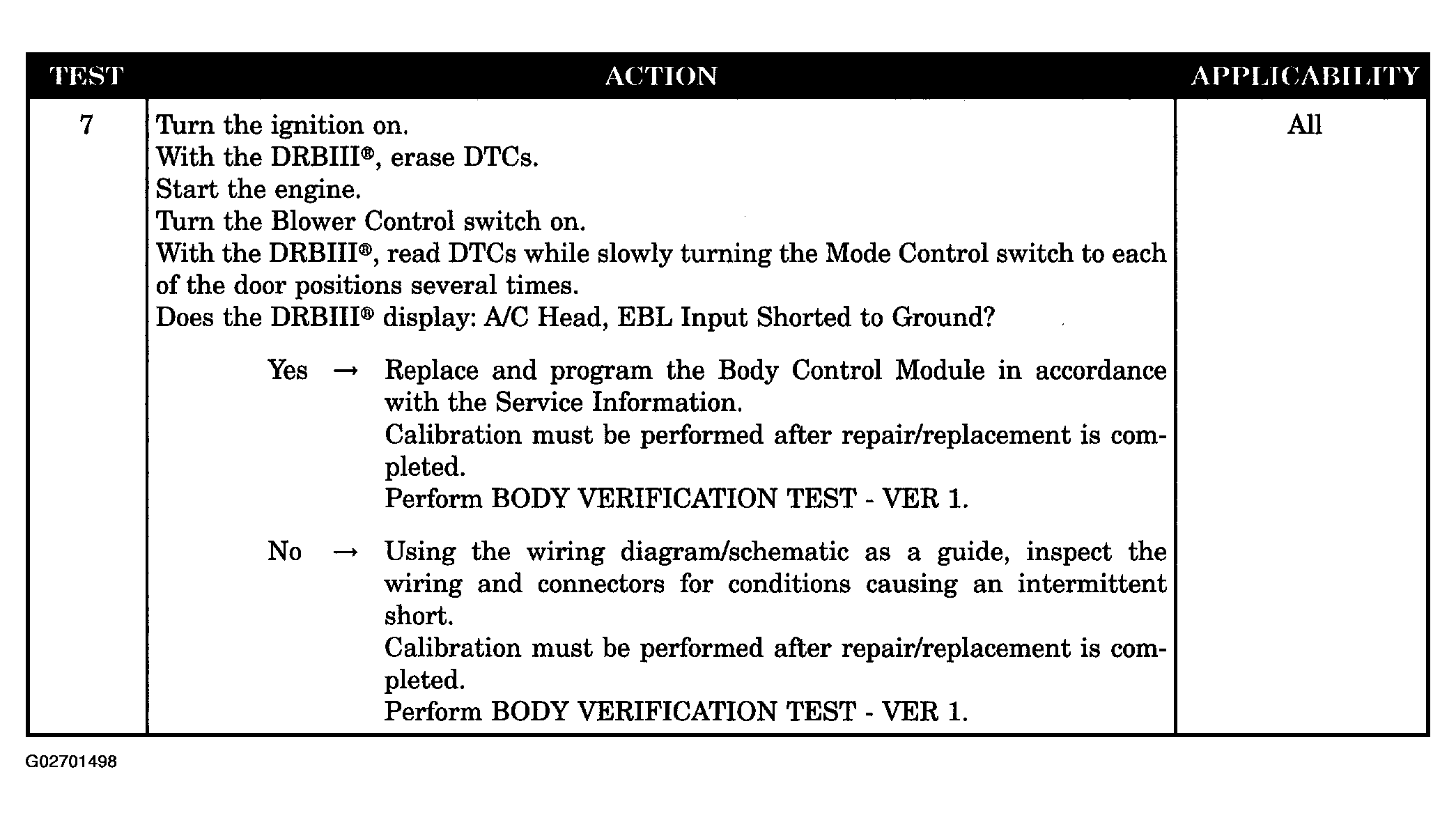

Fig 3: A/C Head, EBL Input Shorted To Ground Diagnostic Procedure (3 Of 3)
G02701498Courtesy of DAIMLERCHRYSLER CORP.
