A/C Head, EBL Input Shorted To Battery Diagnostic Procedure

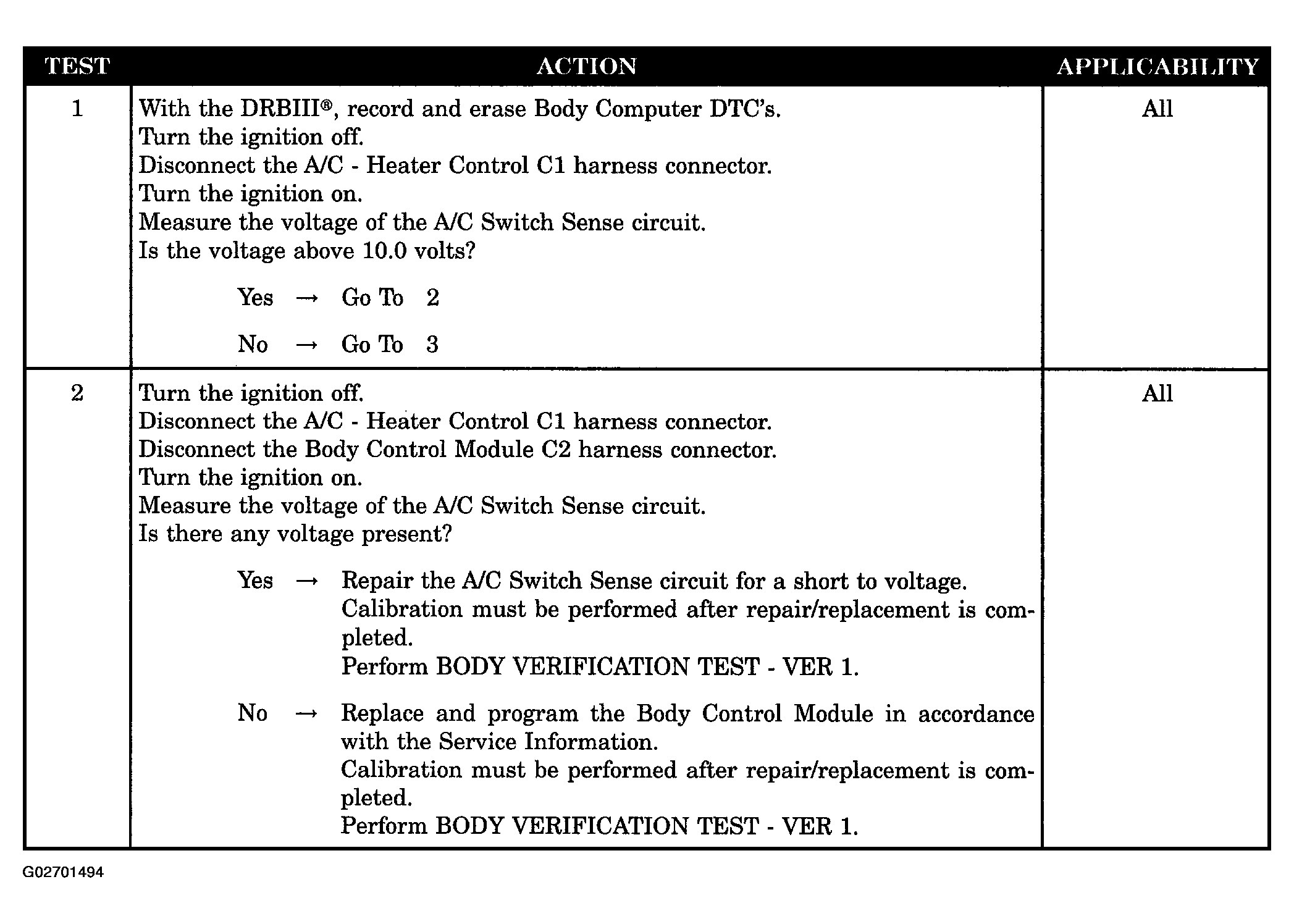

Fig 1: A/C Head, EBL Input Shorted To Battery Diagnostic Procedure (1 Of 2)
G02701494Courtesy of DAIMLERCHRYSLER CORP.

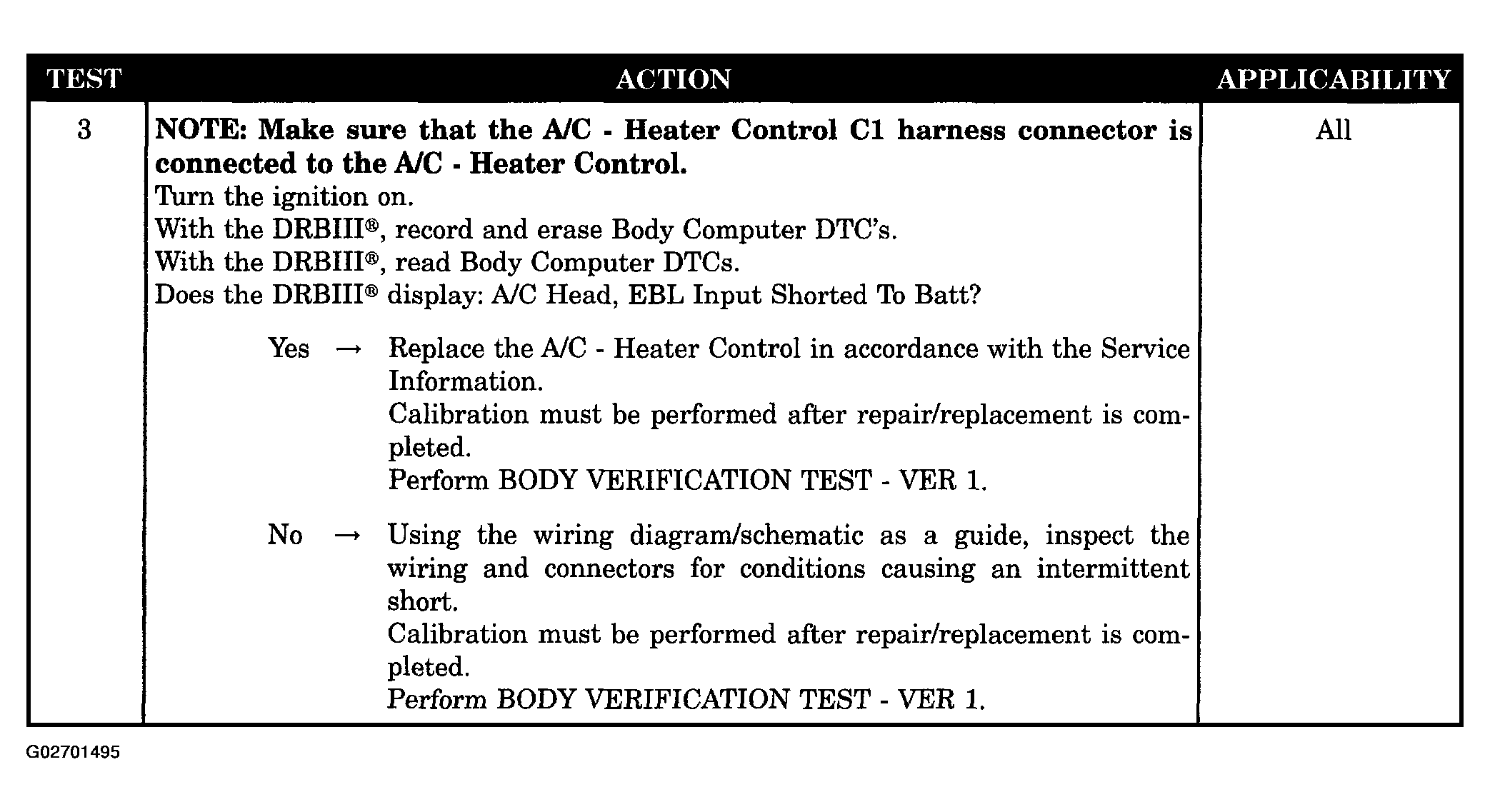

Fig 2: A/C Head, EBL Input Shorted To Battery Diagnostic Procedure (2 Of 2)
G02701495Courtesy of DAIMLERCHRYSLER CORP.
