A/C Blend Dr Input Open/Short To Ground Diagnostic Procedure

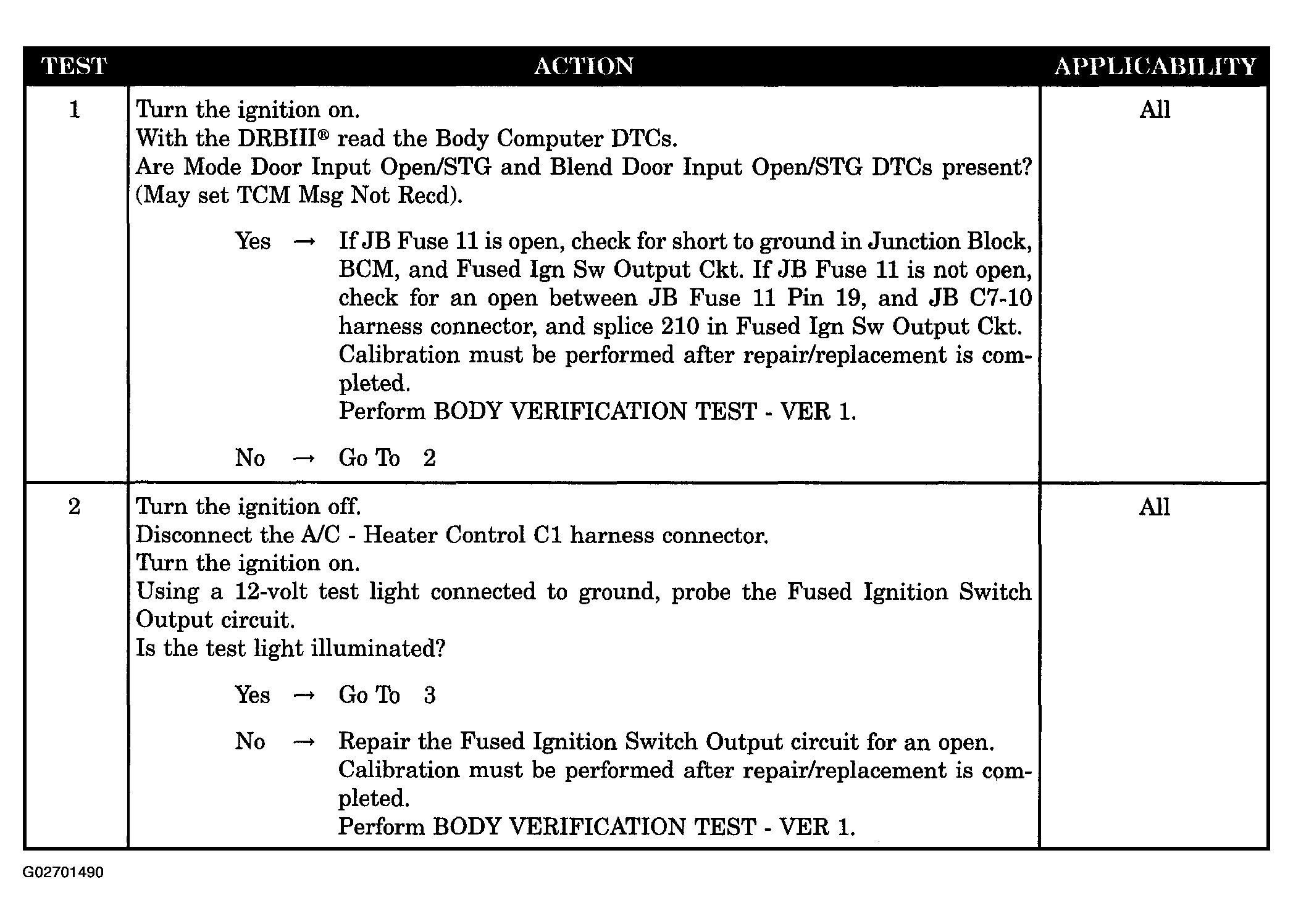

Fig 1: A/C Blend DR Input Open/Short To Ground Diagnostic Procedure (1 Of 3)
G02701490Courtesy of DAIMLERCHRYSLER CORP.

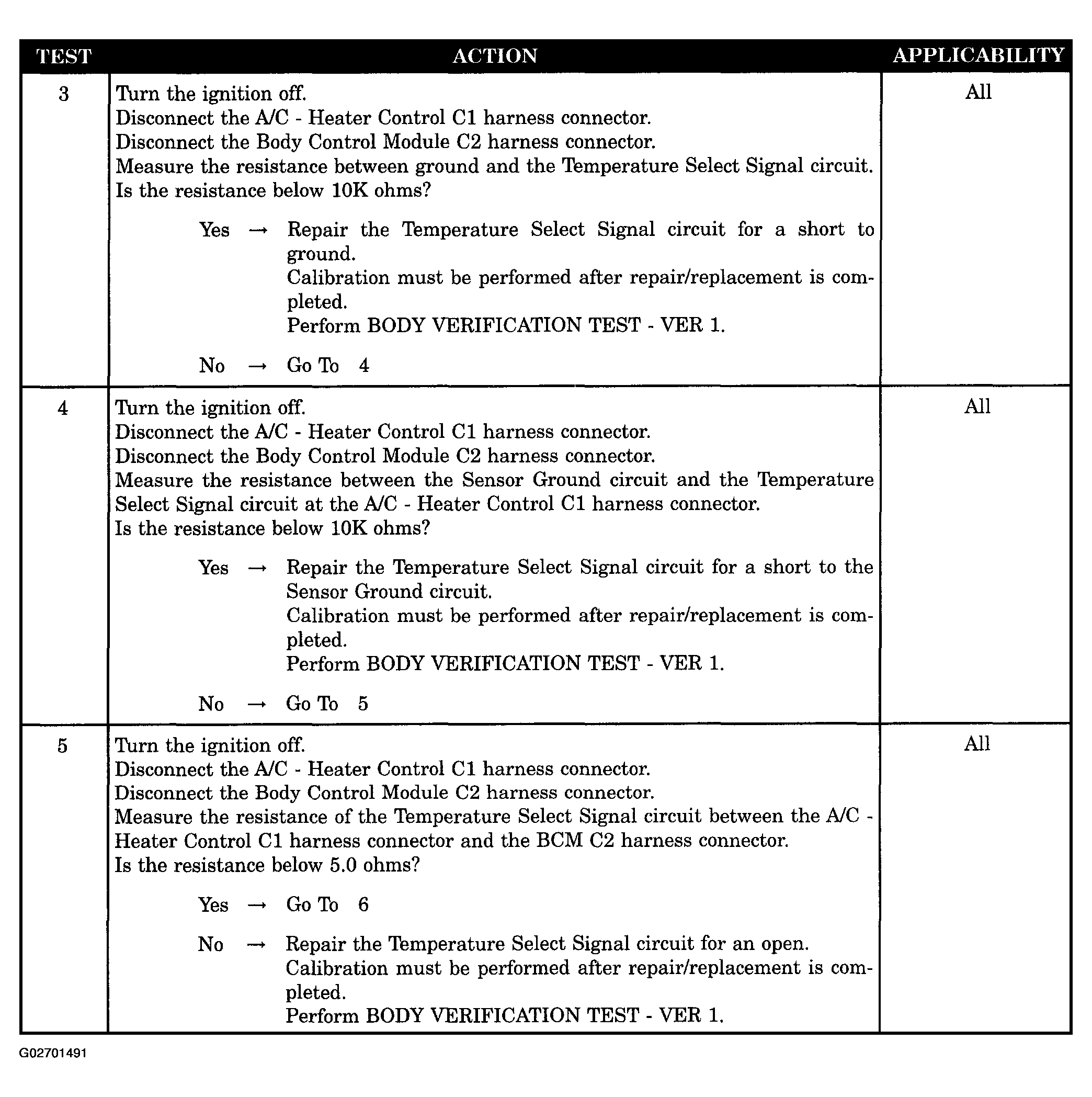

Fig 2: A/C Blend DR Input Open/Short To Ground Diagnostic Procedure (2 Of 3)
G02701491Courtesy of DAIMLERCHRYSLER CORP.

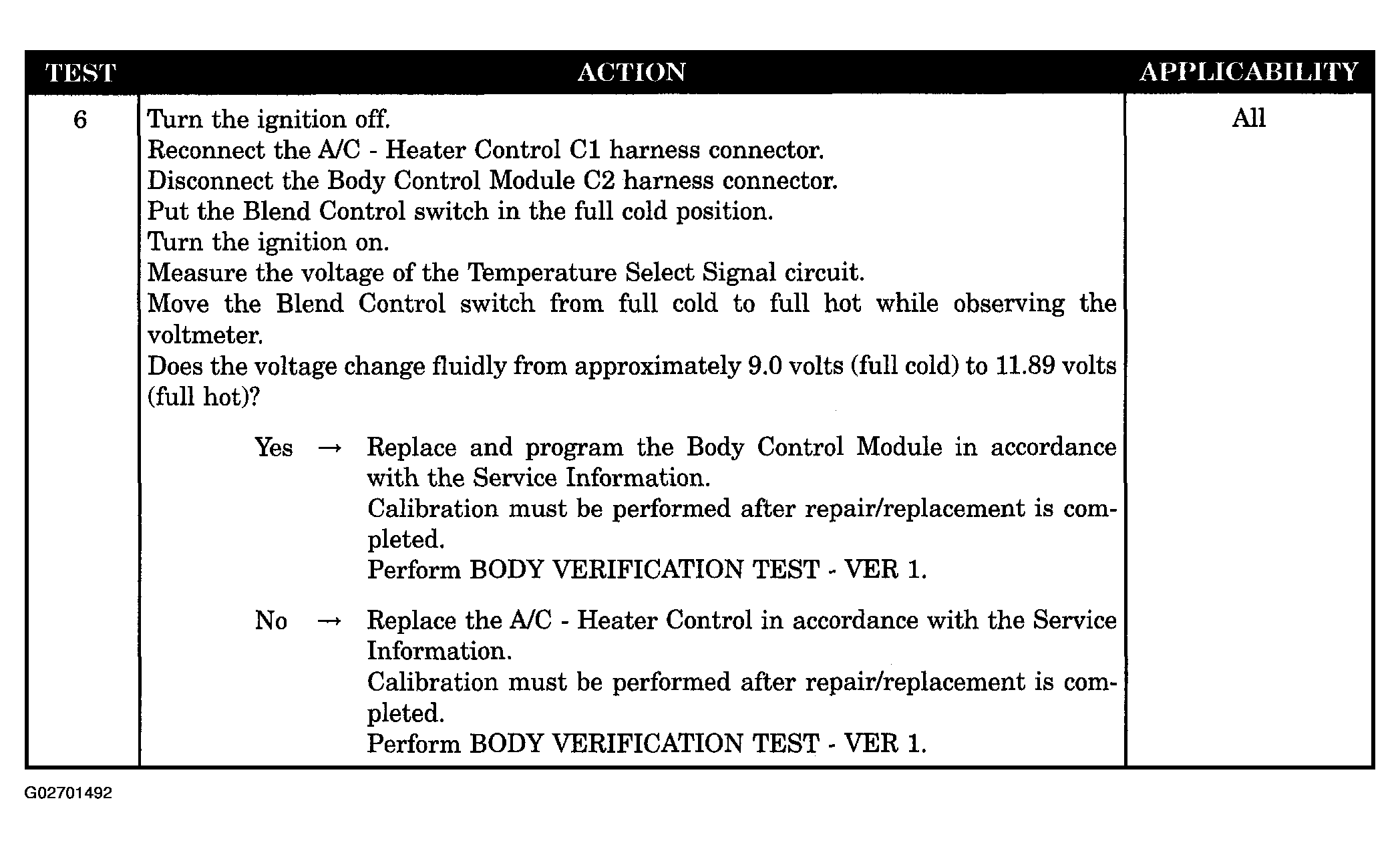

Fig 3: A/C Blend DR Input Open/Short To Ground Diagnostic Procedure (3 Of 3)
G02701492Courtesy of DAIMLERCHRYSLER CORP.
