Low Beam Headlamps Will Not Turn On Diagnostic Procedure

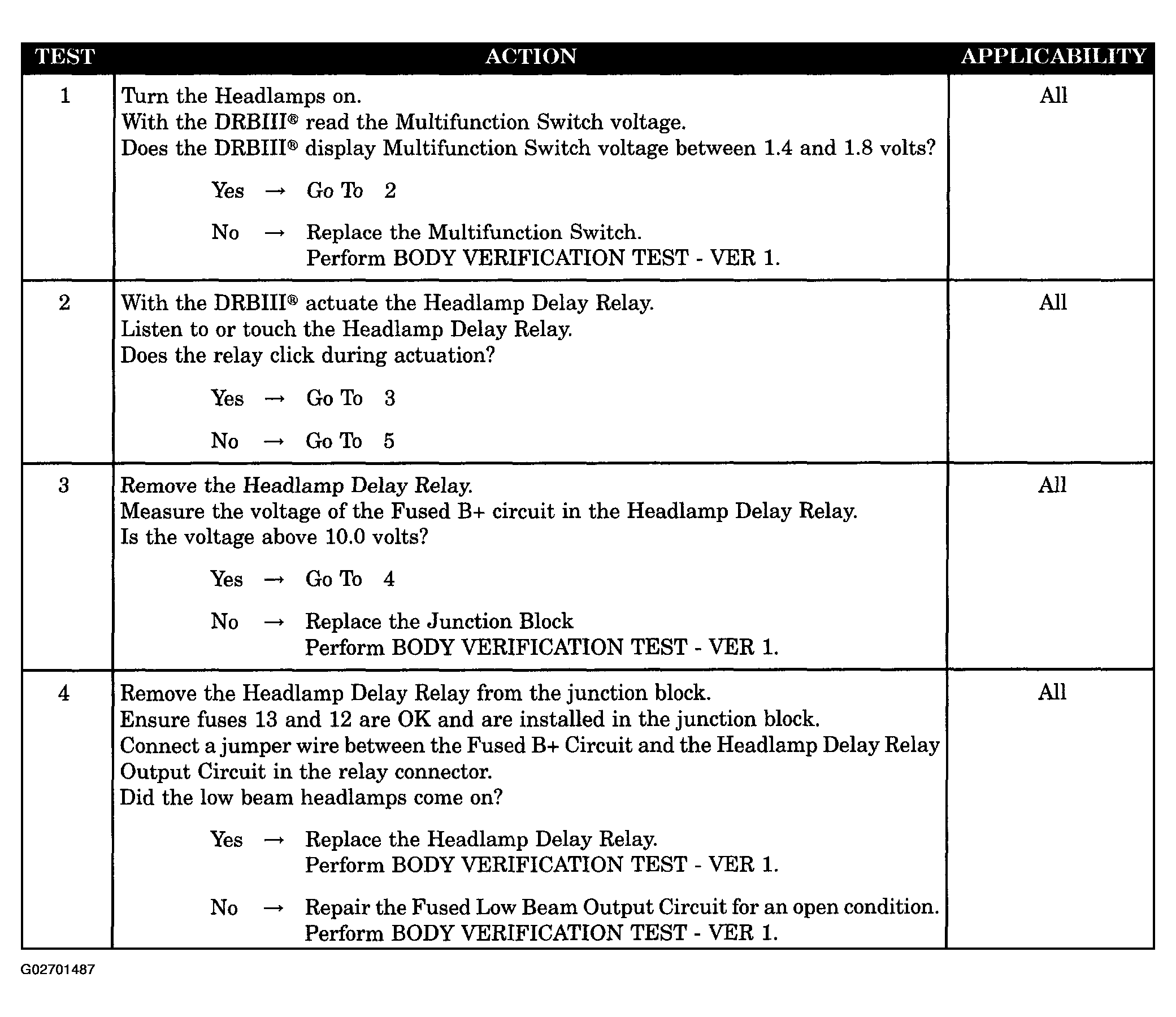

Fig 1: Low Beam Headlamps Will Not Turn On Diagnostic Procedure (1 Of 2)
G02701487Courtesy of DAIMLERCHRYSLER CORP.

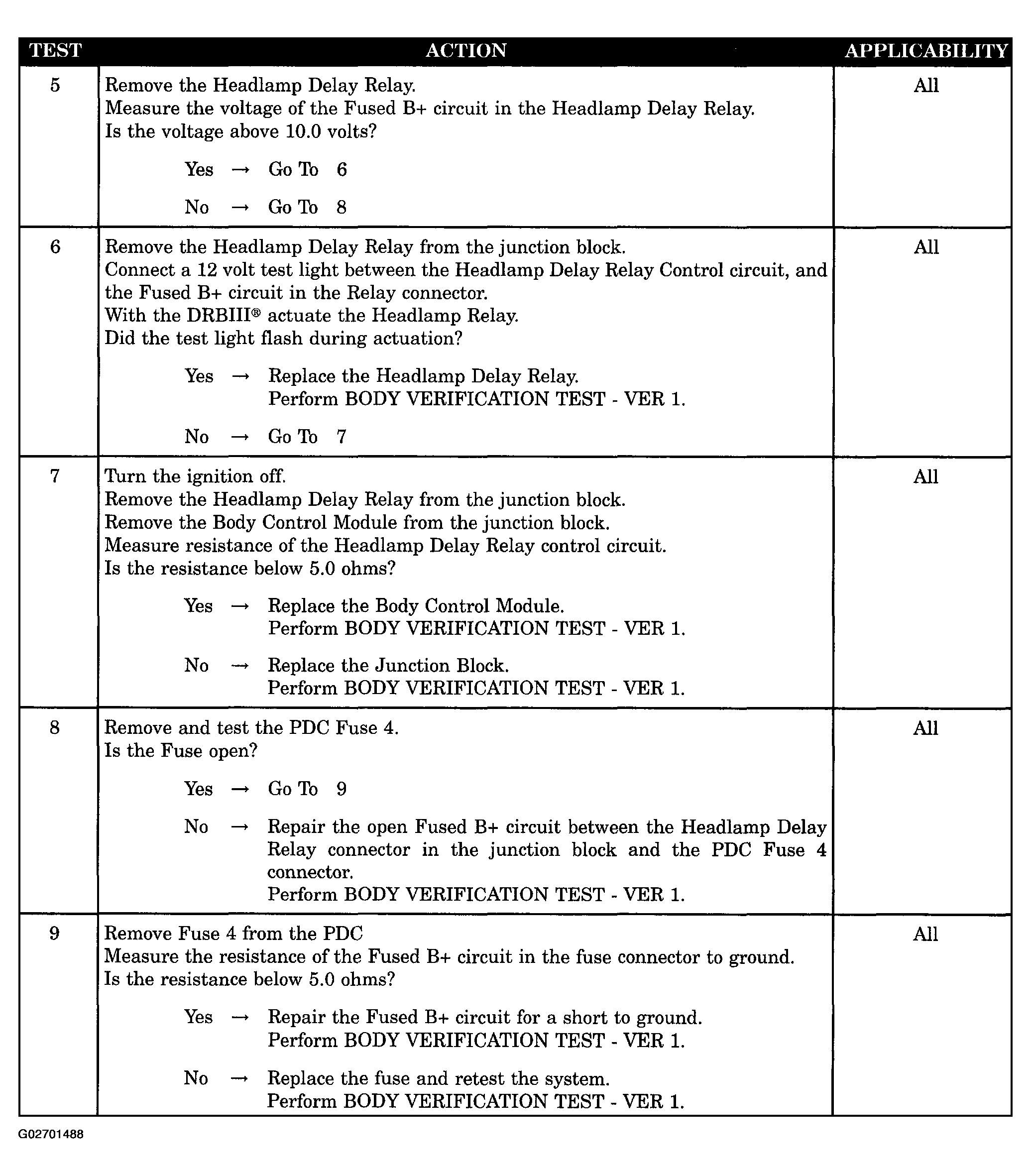

Fig 2: Low Beam Headlamps Will Not Turn On Diagnostic Procedure (2 Of 2)
G02701488Courtesy of DAIMLERCHRYSLER CORP.
