Home >> Chrysler >> 2003 >> Sebring LXi, 2D Convertible >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Body Diagnostic Procedures - Except Coupe >> Diagnostic Information And Procedures >> Exterior Lighting >> Symptom: *HEADLAMP DELAY RELAY INOPERATIVE >> Headlamp Delay Relay Inoperative Diagnostic Procedure

Headlamp Delay Relay Inoperative Diagnostic Procedure

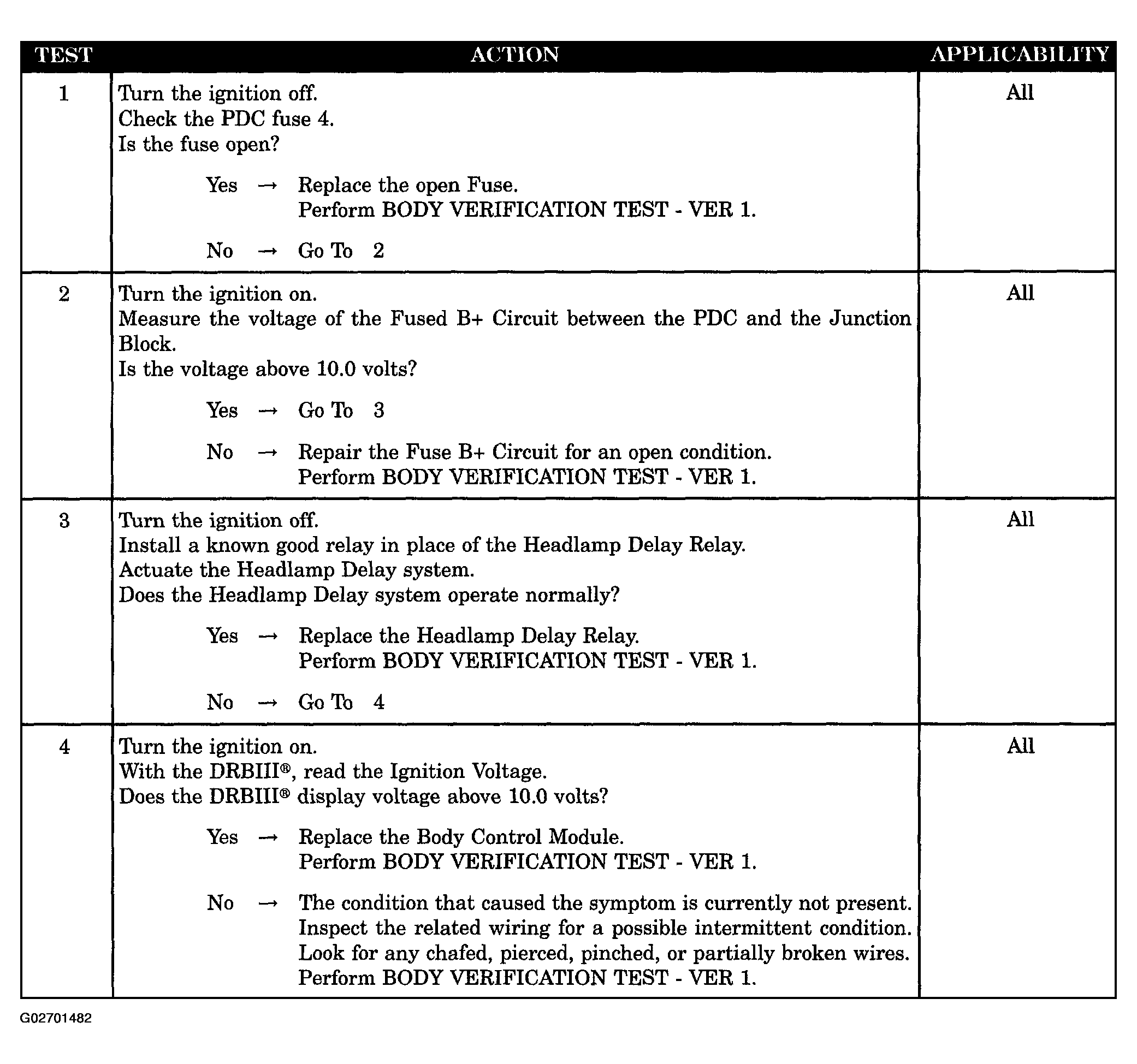

Fig 1: Headlamp Delay Relay Inoperative Diagnostic Procedure

G02701482

Courtesy of DAIMLERCHRYSLER CORP.
