DECKLID Ajar Circuit Open Diagnostic Procedure

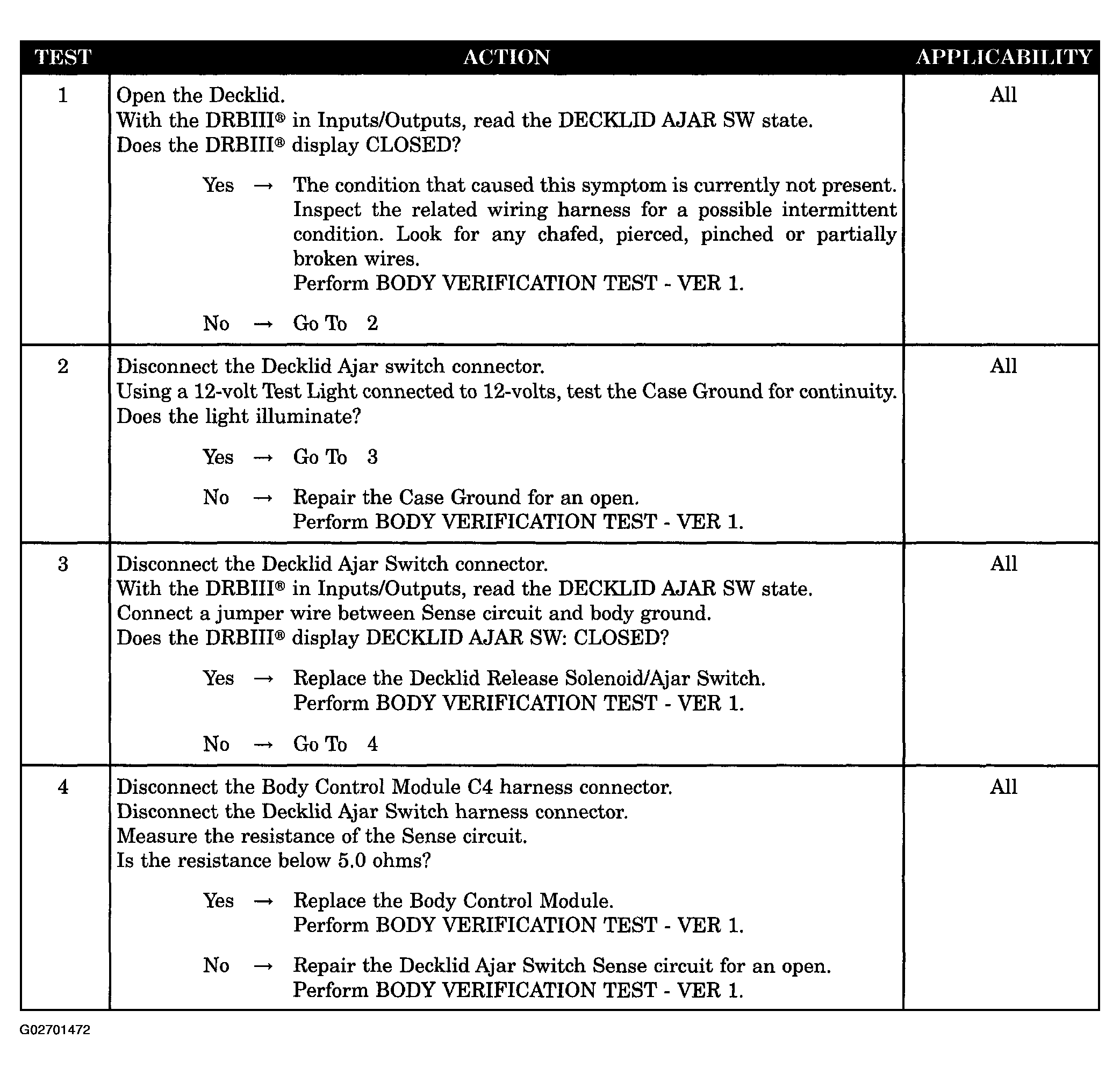

Fig 1: Decklid Ajar Circuit Open Diagnostic Procedure

G02701472

Courtesy of DAIMLERCHRYSLER CORP.
