Home >> Chrysler >> 2003 >> Sebring LXi, 2D Convertible >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Body Diagnostic Procedures - Except Coupe >> Diagnostic Information And Procedures >> Compass/Mini-Trip Computer >> Symptom: BCM MESSAGE NOT RECEIVED >> BCM Message Not Received Diagnostic Procedure

BCM Message Not Received Diagnostic Procedure

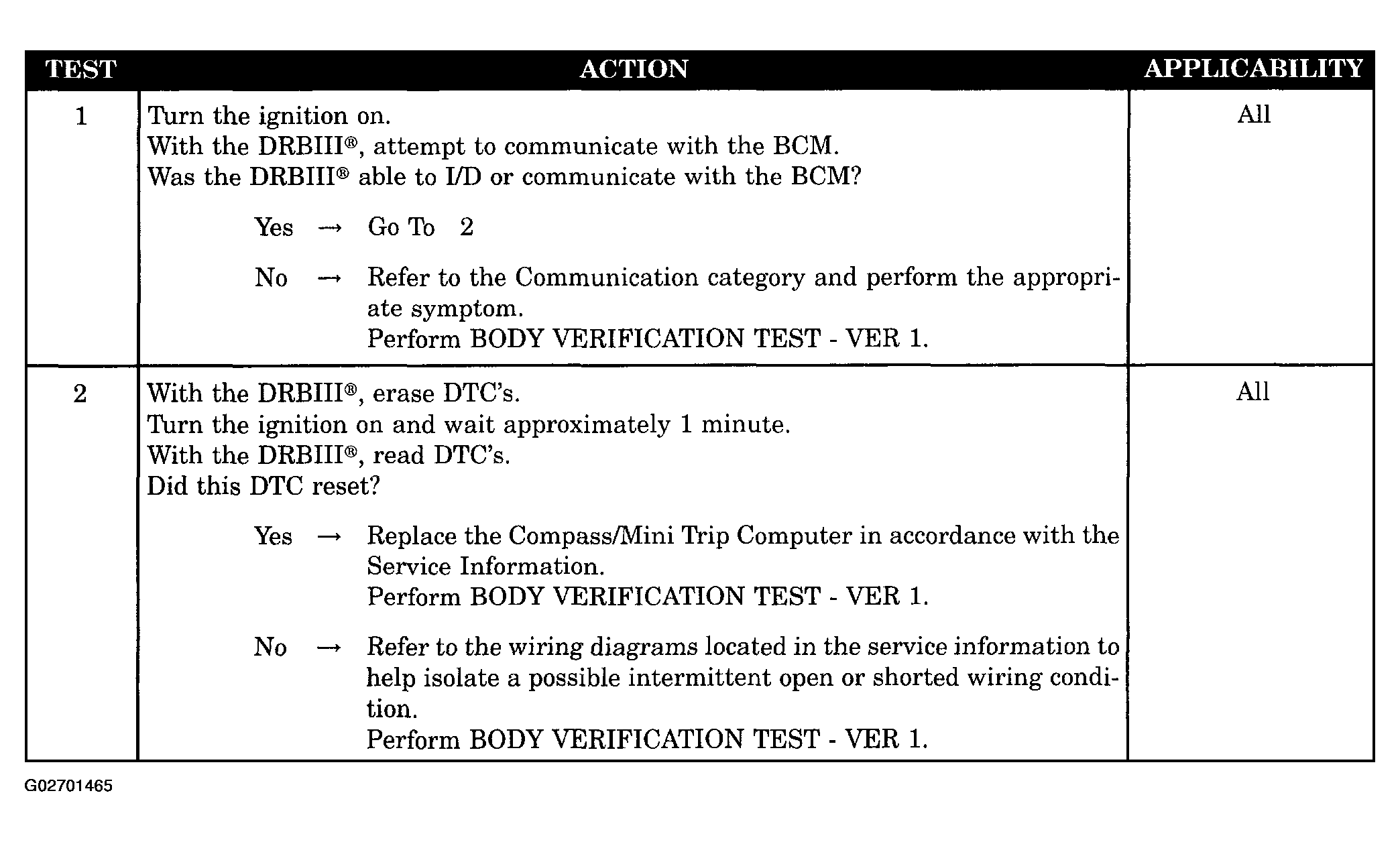

Fig 1: BCM Message Not Received Diagnostic Procedure

G02701465

Courtesy of DAIMLERCHRYSLER CORP.
