TCM Messages Not Received Diagnostic Procedure

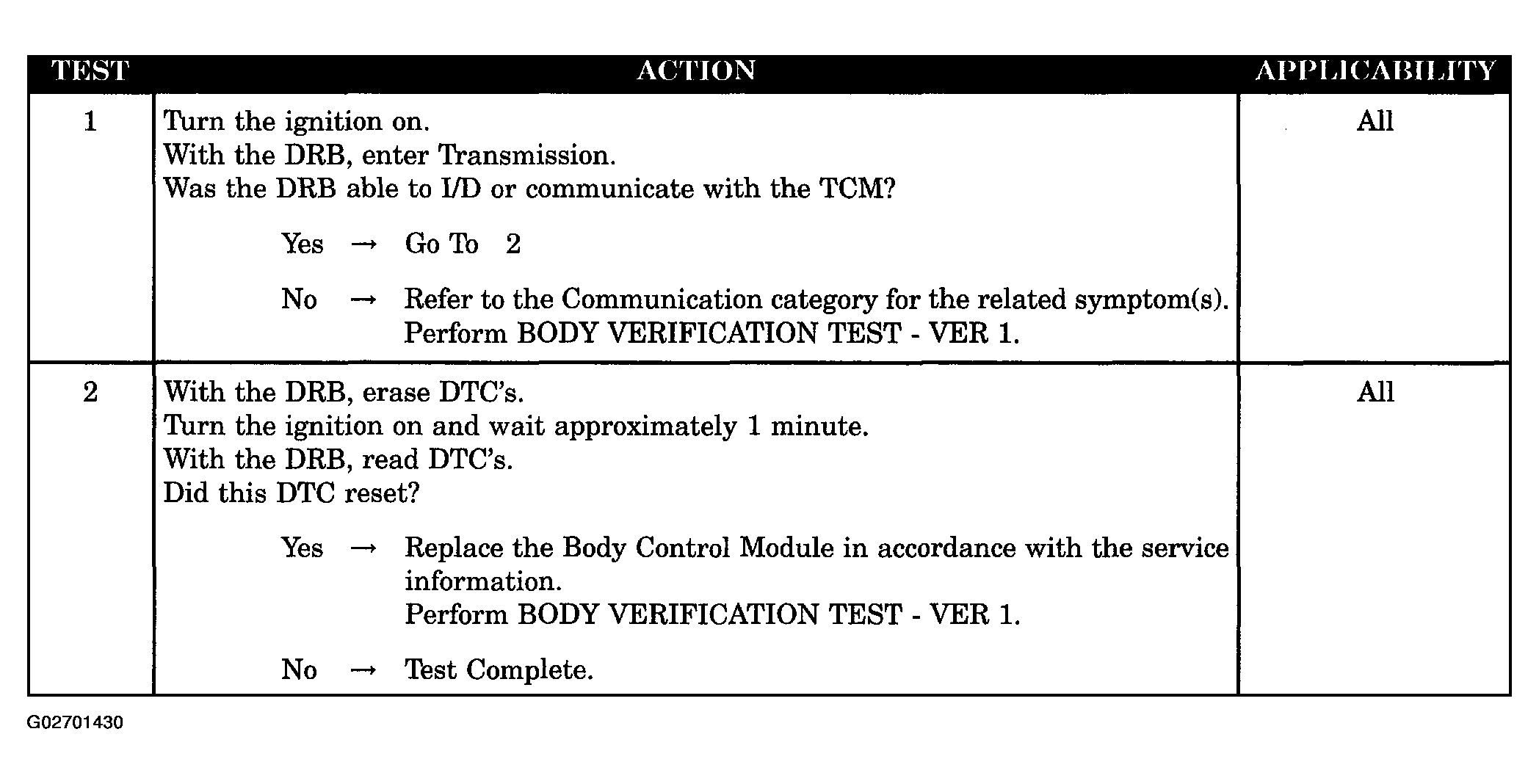

Fig 1: TCM Messages Not Received Diagnostic Procedure

G02701430

Courtesy of DAIMLERCHRYSLER CORP.
