Pcm Messages Not Received Diagnostic Procedure

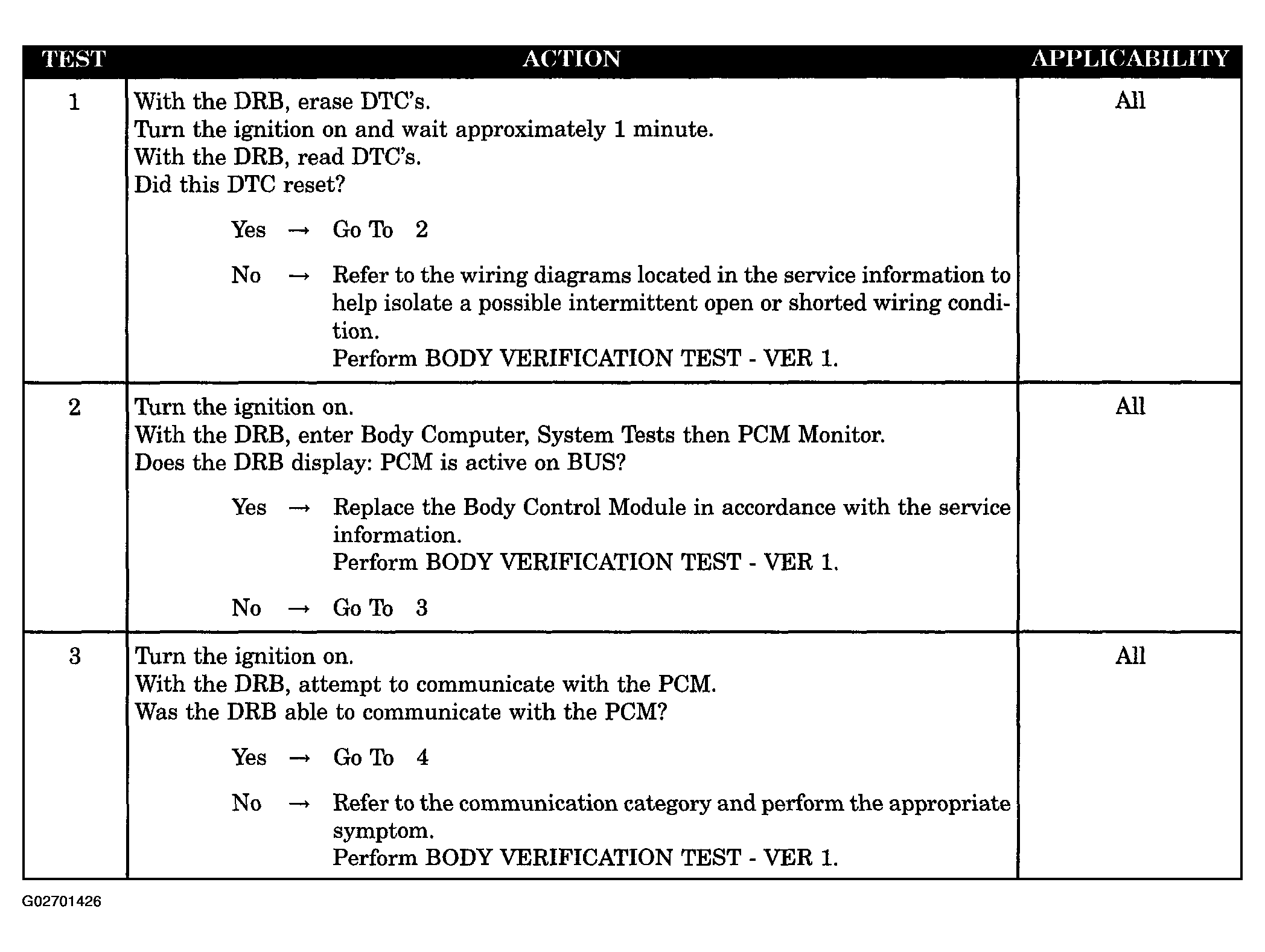

Fig 1: PCM Messages Not Received Diagnostic Procedure (1 Of 2)
G02701426Courtesy of DAIMLERCHRYSLER CORP.

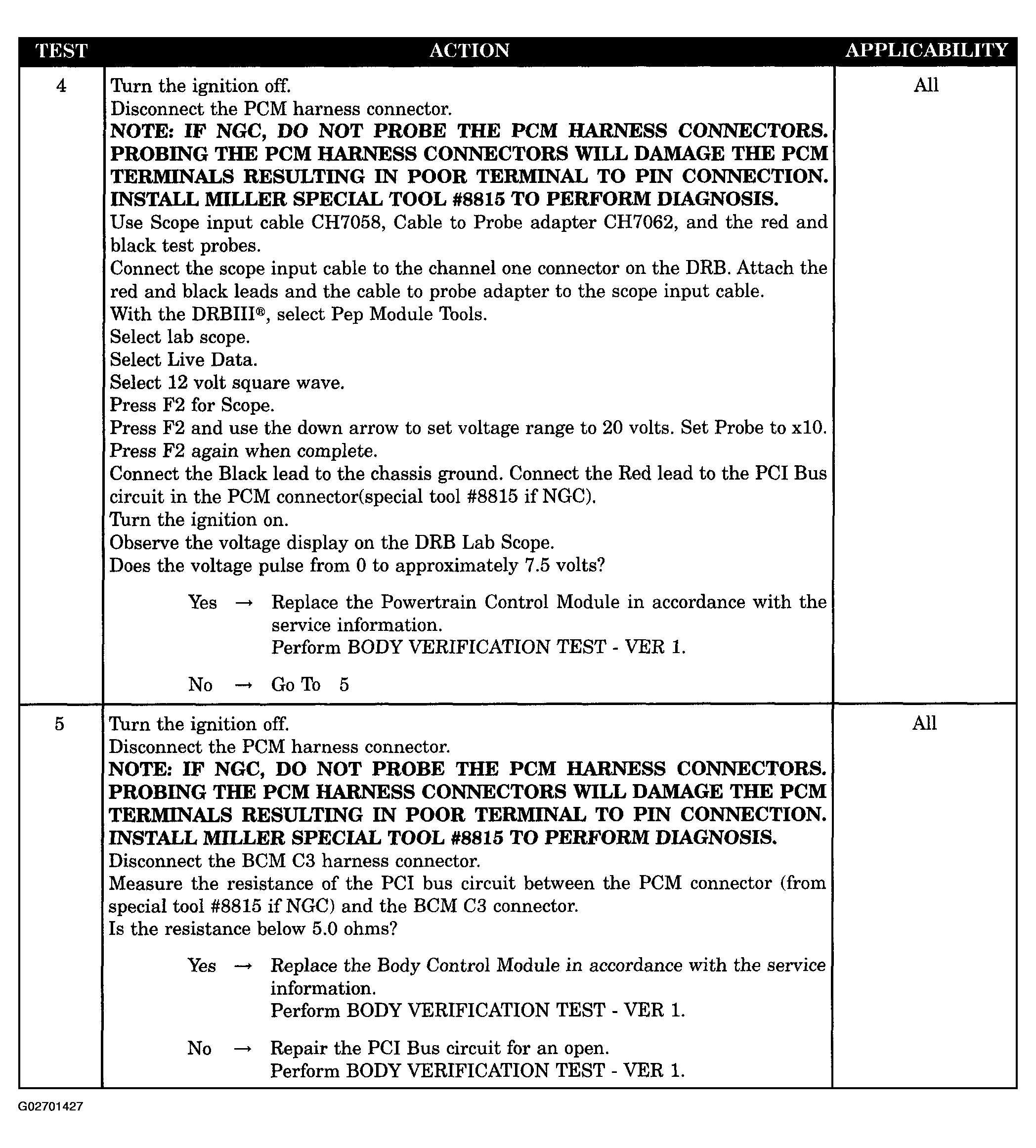

Fig 2: PCM Messages Not Received Diagnostic Procedure (2 Of 2)
G02701427Courtesy of DAIMLERCHRYSLER CORP.
