Home >> Chrysler >> 2003 >> Sebring LXi, 2D Convertible >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Body Diagnostic Procedures - Except Coupe >> Diagnostic Information And Procedures >> Communication >> Symptom: EEPROM CHECKSUM FAILURE >> EEPROM Checksum Failure Diagnostic Procedure

EEPROM Checksum Failure Diagnostic Procedure

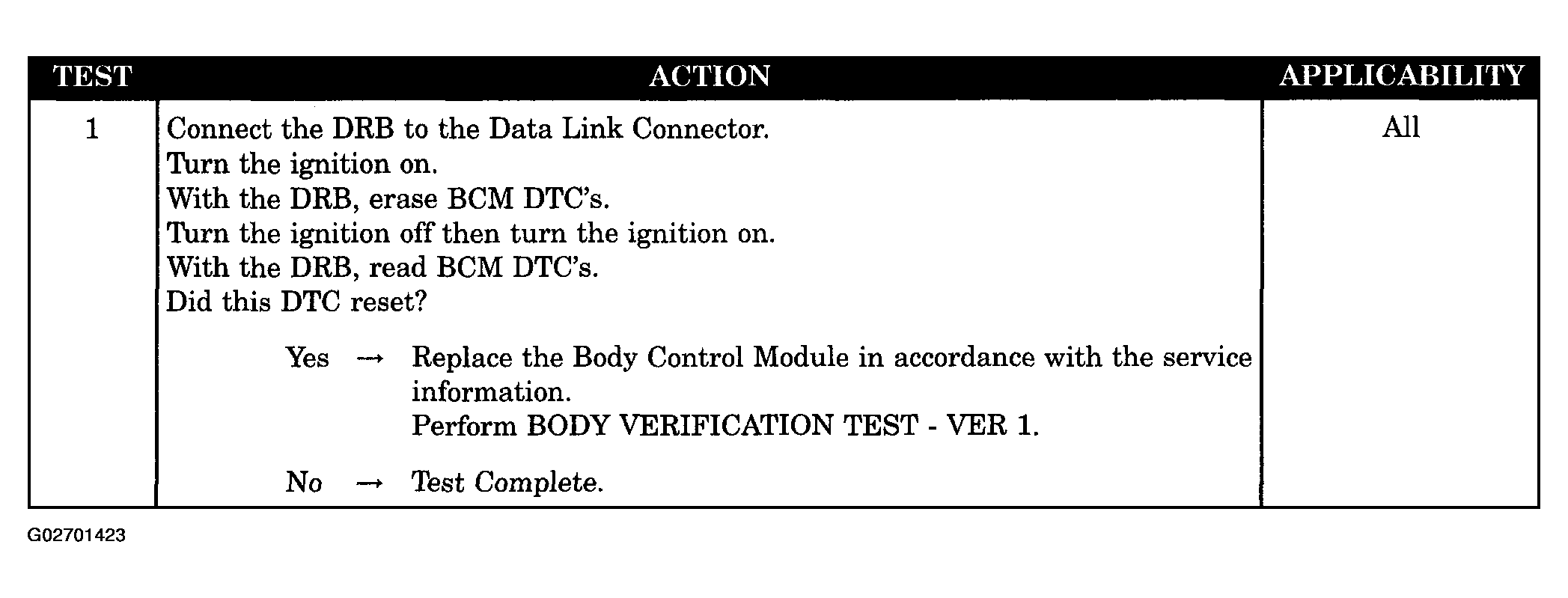

Fig 1: EEPROM Checksum Failure Diagnostic Procedure

G02701423

Courtesy of DAIMLERCHRYSLER CORP.
