LEMON Manuals
: Even more car manuals for everyone
Home
>>
Chrysler
>>
2003
>>
Sebring LXi, 2D Convertible
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Gauges & Instrument Panels
>>
Body Diagnostic Procedures - Except Coupe
>>
Diagnostic Information And Procedures
>>
Communication
>>
Symptom: BATTERY POWER TO MODULE DISCONNECTED
>>
Battery Power To Module Disconnected Diagnostic Procedure
Battery Power To Module Disconnected Diagnostic Procedure

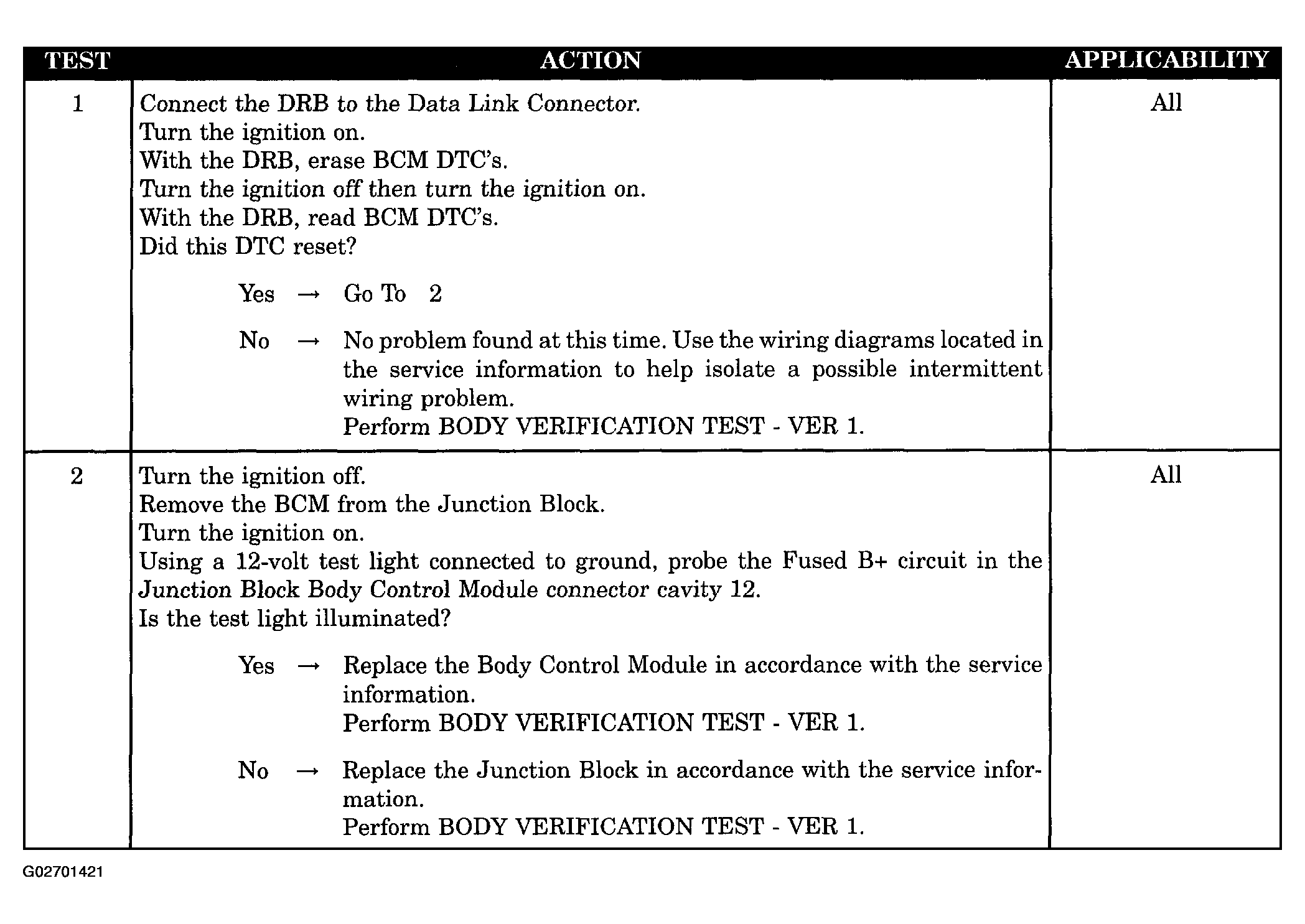

Fig 1: Battery Power To Module Disconnected Diagnostic Procedure
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
