No Response From Transmission Control Module - NGC Diagnostic Procedure

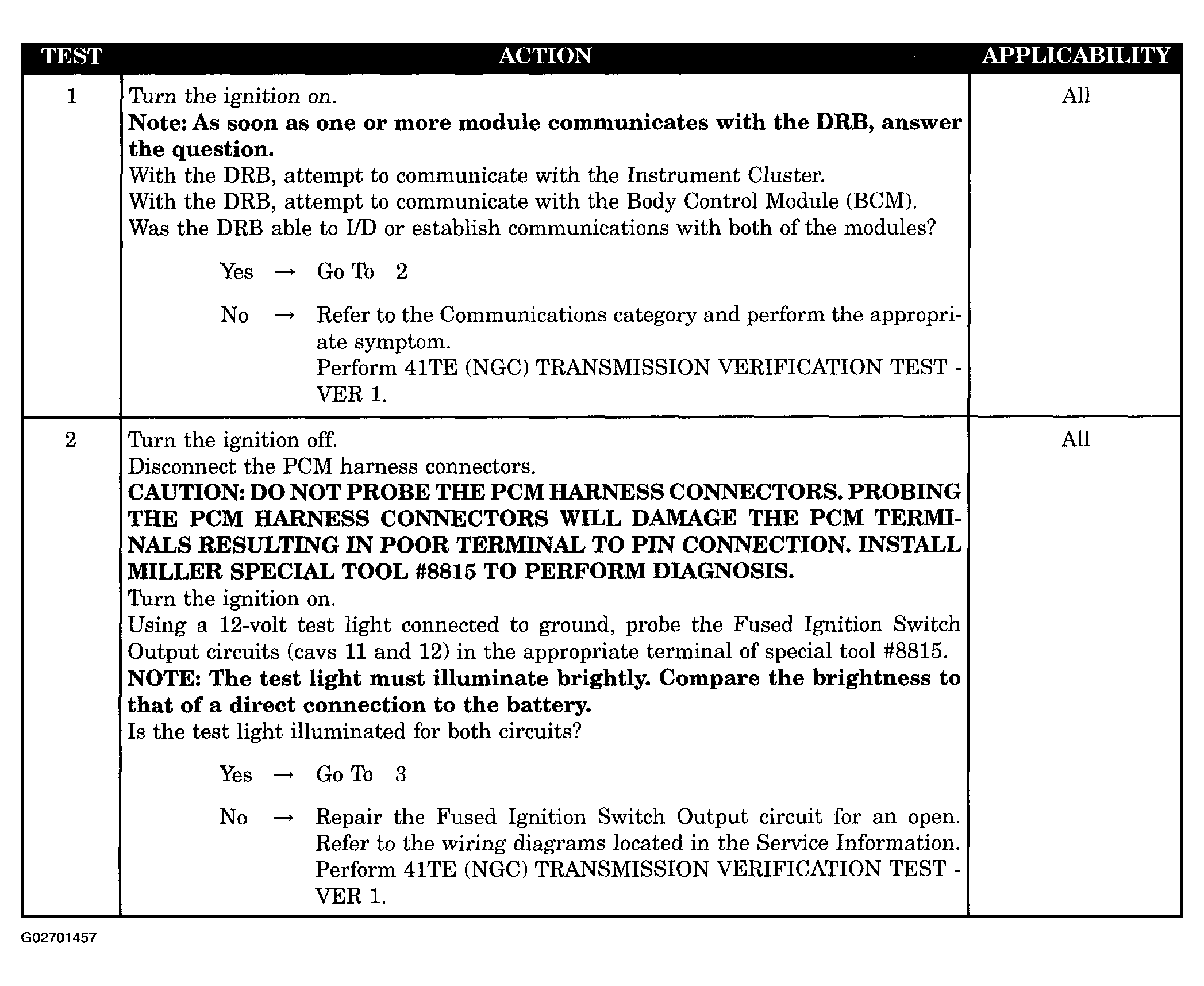

Fig 1: No Response From Transmission Control Module - NGC Diagnostic Procedure (1 Of 3)
G02701457Courtesy of DAIMLERCHRYSLER CORP.

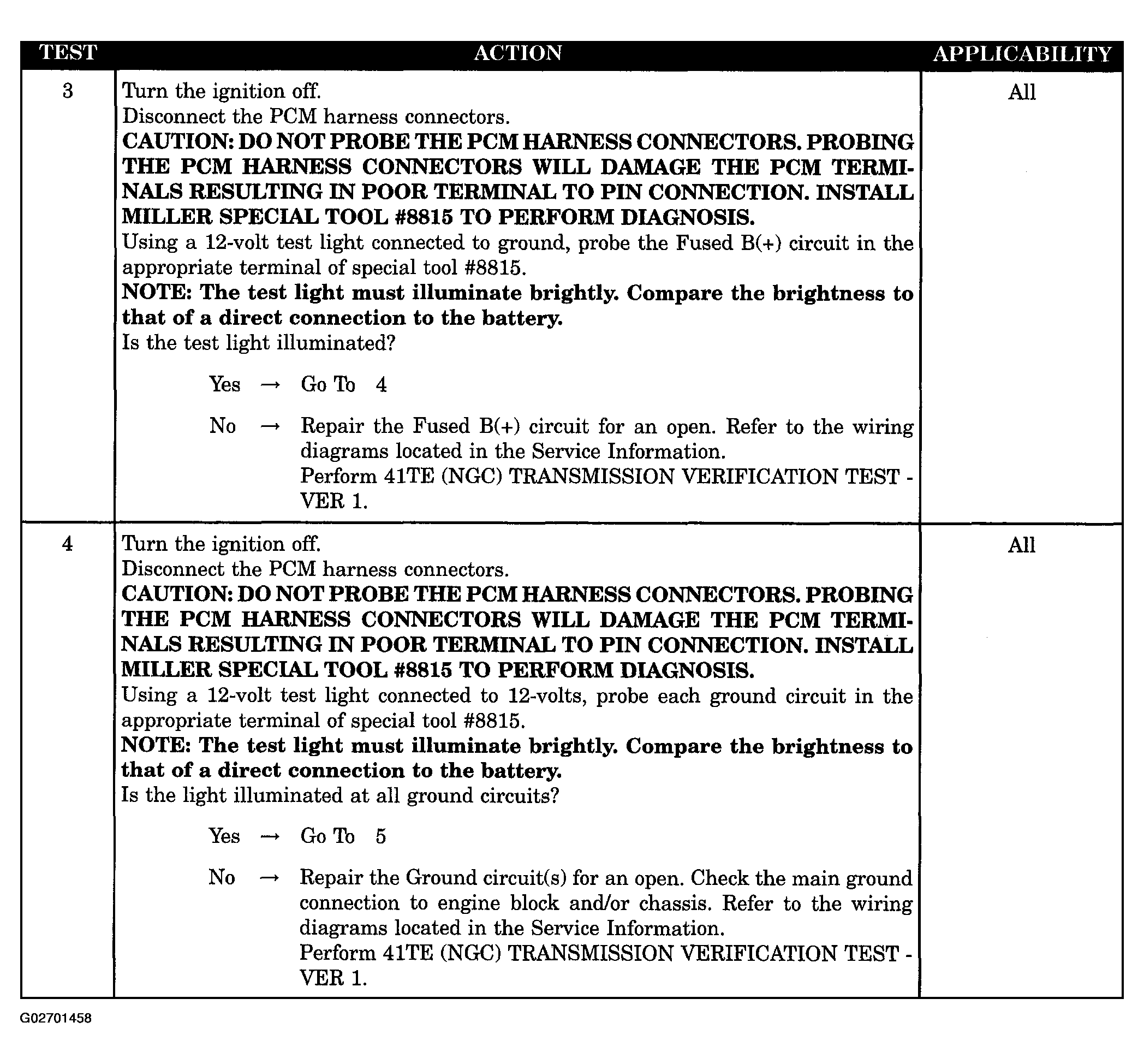

Fig 2: No Response From Transmission Control Module - NGC Diagnostic Procedure (2 Of 3)
G02701458Courtesy of DAIMLERCHRYSLER CORP.

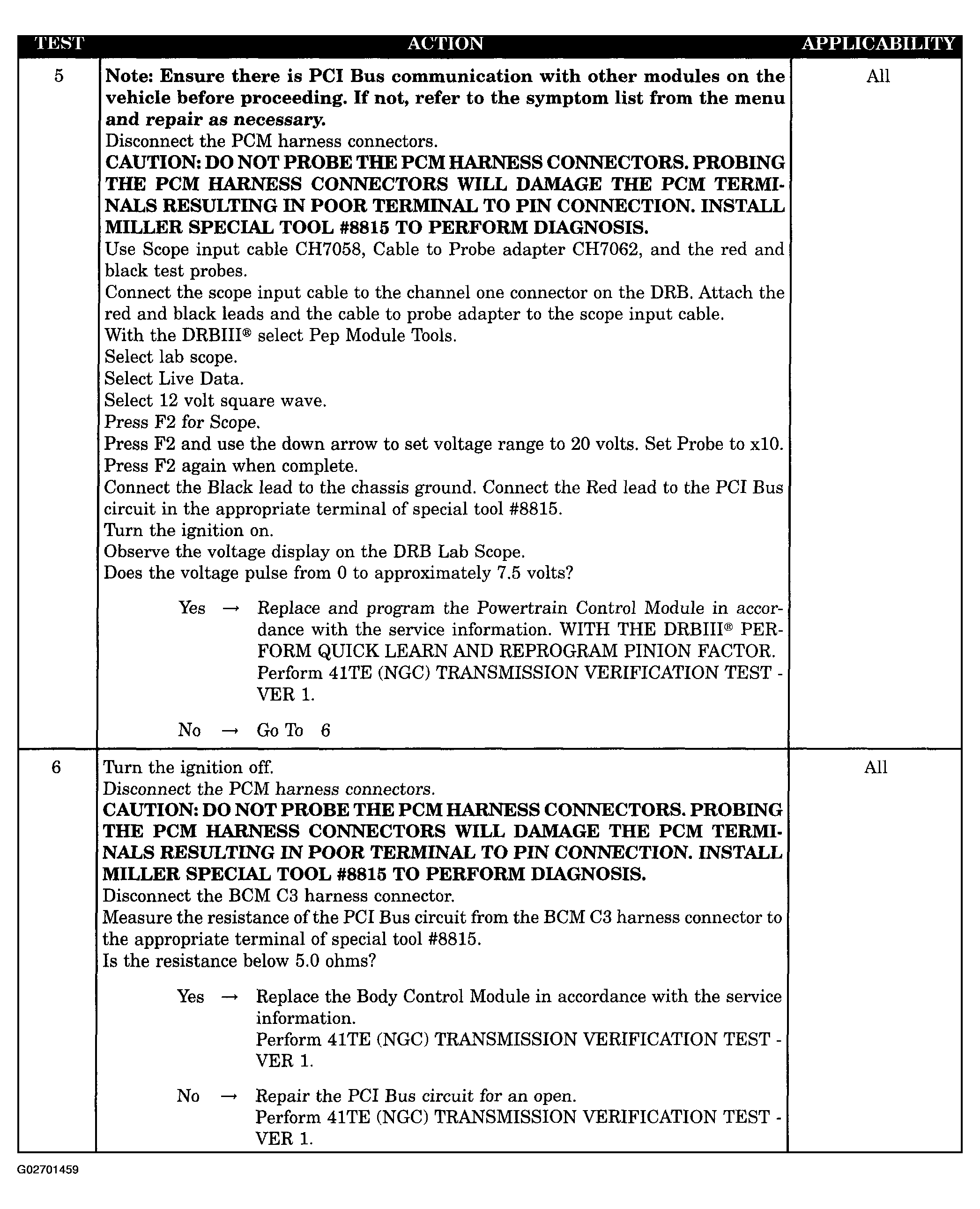

Fig 3: No Response From Transmission Control Module - NGC Diagnostic Procedure (3 Of 3)
G02701459Courtesy of DAIMLERCHRYSLER CORP.
