No Response From Transmission Control Module - EATX Diagnostic Procedure

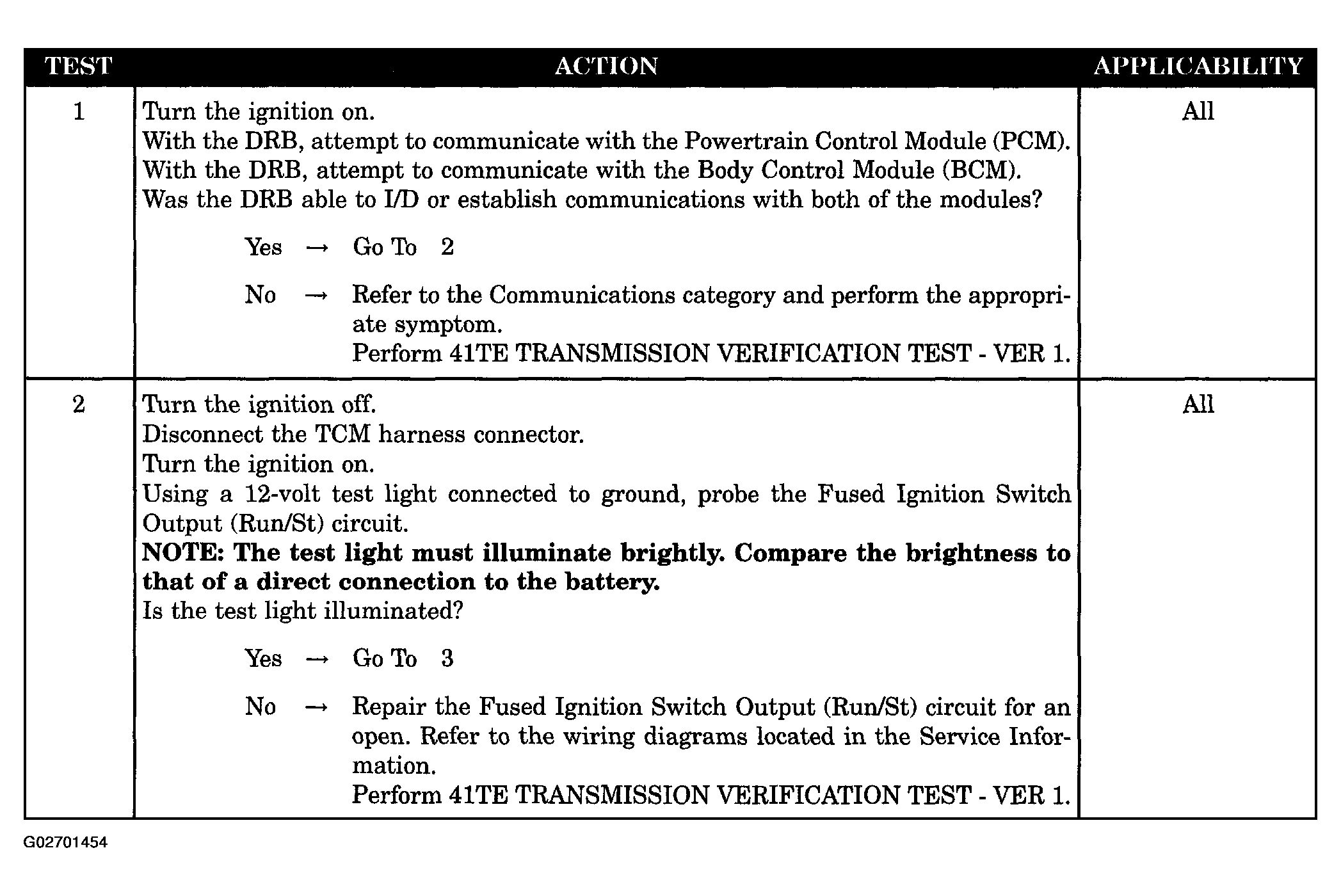

Fig 1: No Response From Transmission Control Module - EATX Diagnostic Procedure (1 Of 3)
G02701454Courtesy of DAIMLERCHRYSLER CORP.

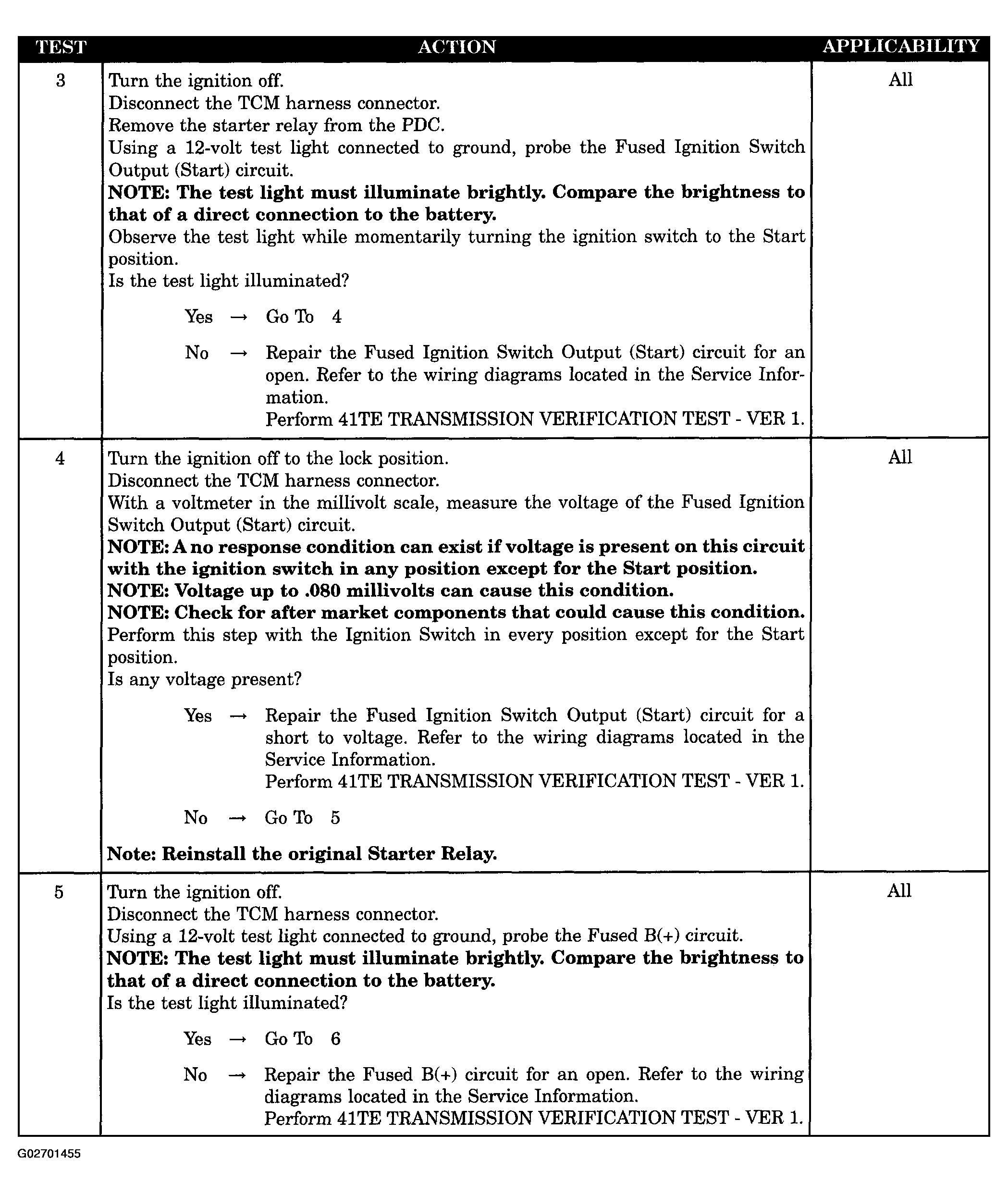

Fig 2: No Response From Transmission Control Module - EATX Diagnostic Procedure (2 Of 3)
G02701455Courtesy of DAIMLERCHRYSLER CORP.

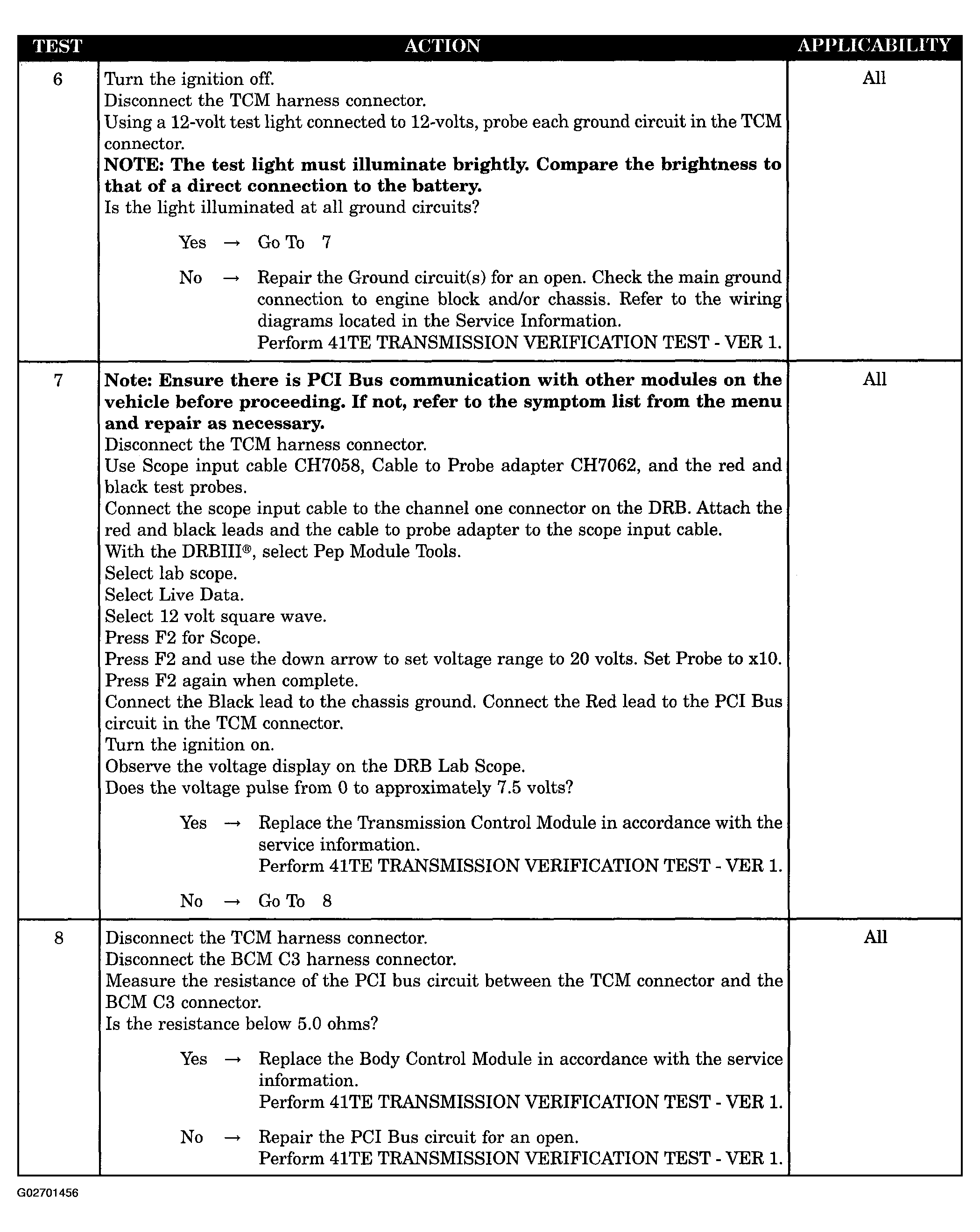

Fig 3: No Response From Transmission Control Module - EATX Diagnostic Procedure (3 Of 3)
G02701456Courtesy of DAIMLERCHRYSLER CORP.
