No Response From Sentry Key Immobilizer Module Diagnostic Procedure

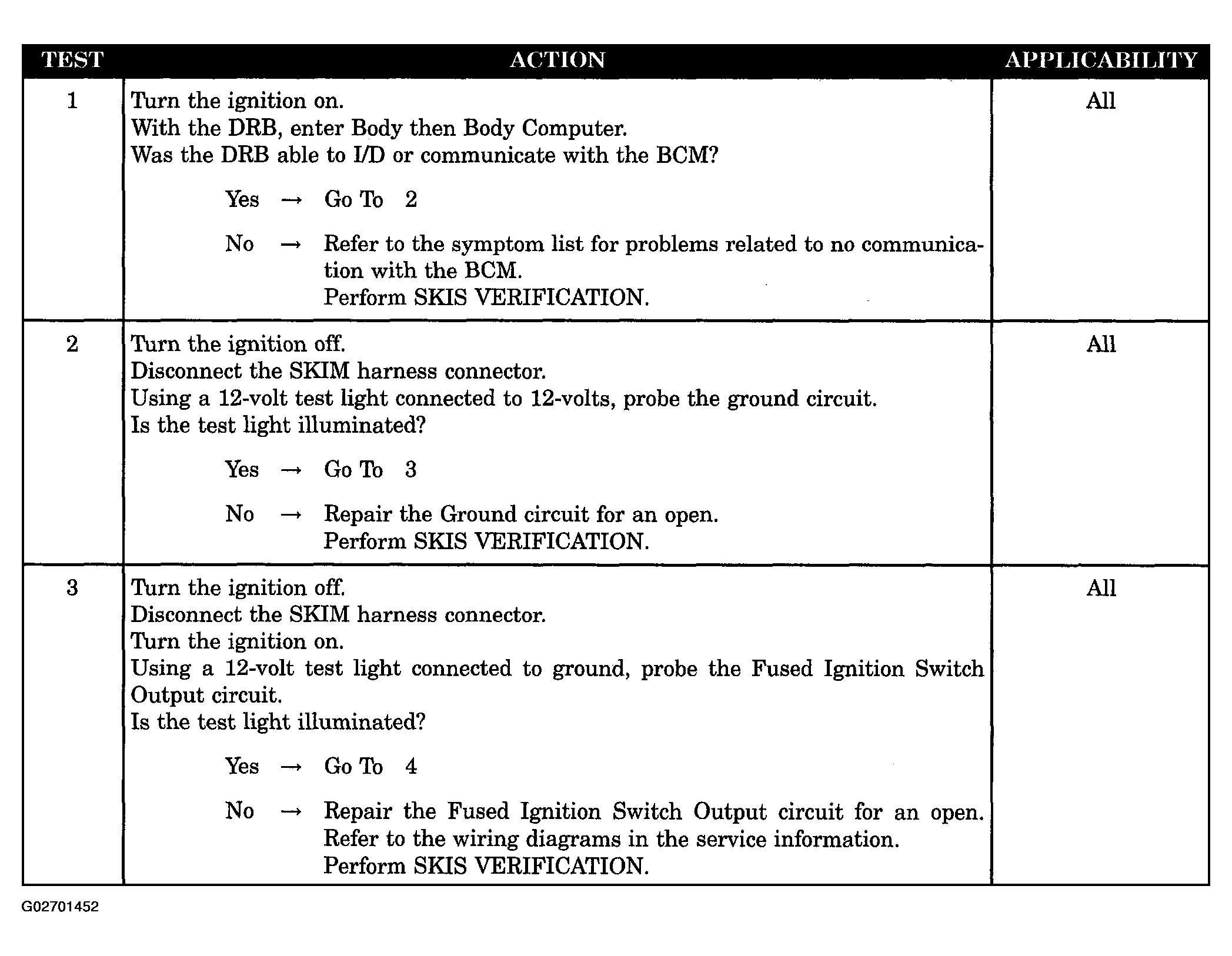

Fig 1: No Response From Sentry Key Immobilizer Module Diagnostic Procedure (1 Of 2)
G02701452Courtesy of DAIMLERCHRYSLER CORP.

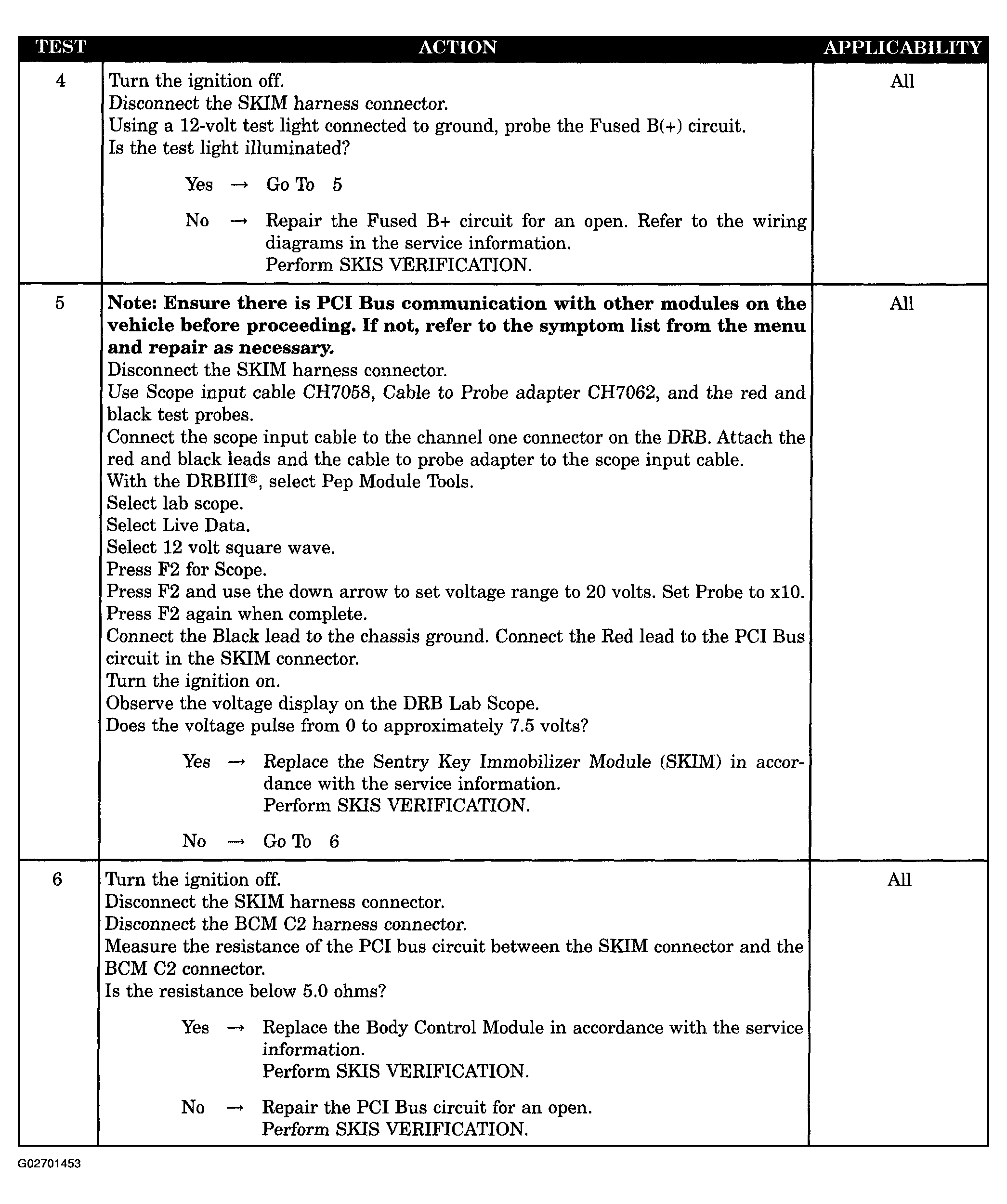

Fig 2: No Response From Sentry Key Immobilizer Module Diagnostic Procedure (2 Of 2)
G02701453Courtesy of DAIMLERCHRYSLER CORP.
