No Response From Pcm (PCI Bus) - SBEC Diagnostic Procedure

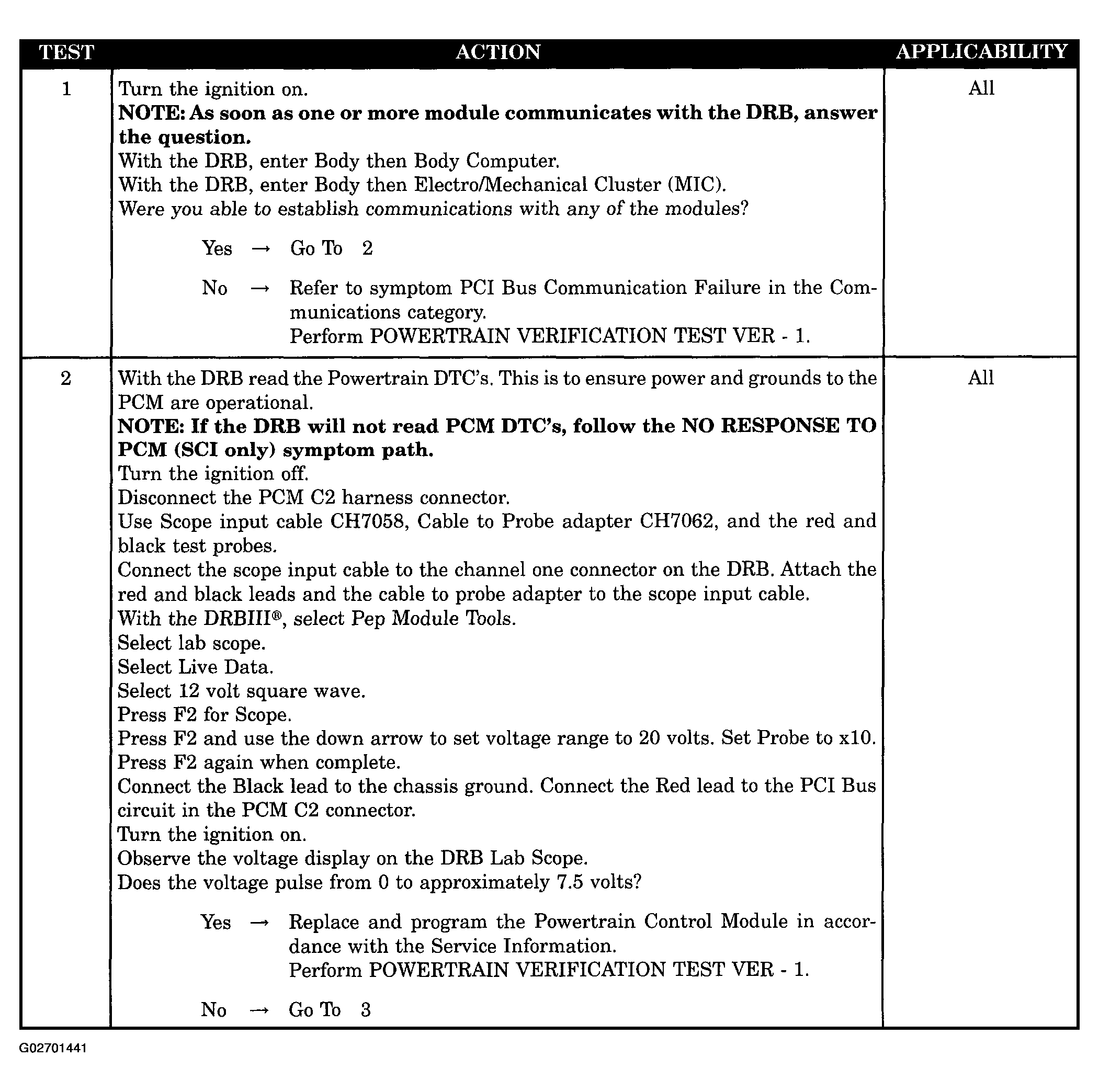

Fig 1: No Response From PCM (PCI Bus) - SBEC Diagnostic Procedure (1 Of 2)
G02701441Courtesy of DAIMLERCHRYSLER CORP.

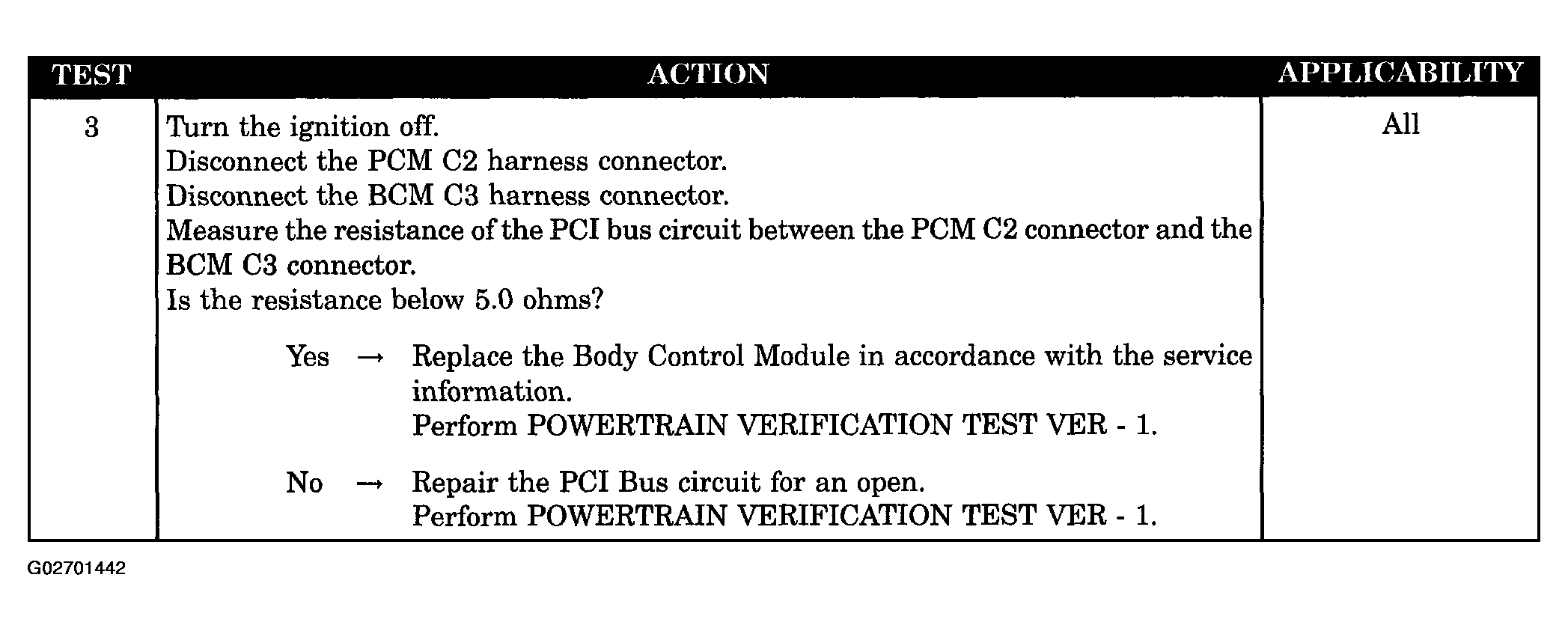

Fig 2: No Response From PCM (PCI Bus) - SBEC Diagnostic Procedure (2 Of 2)
G02701442Courtesy of DAIMLERCHRYSLER CORP.
