No Response From Controller Antilock Brake Diagnostic Procedure

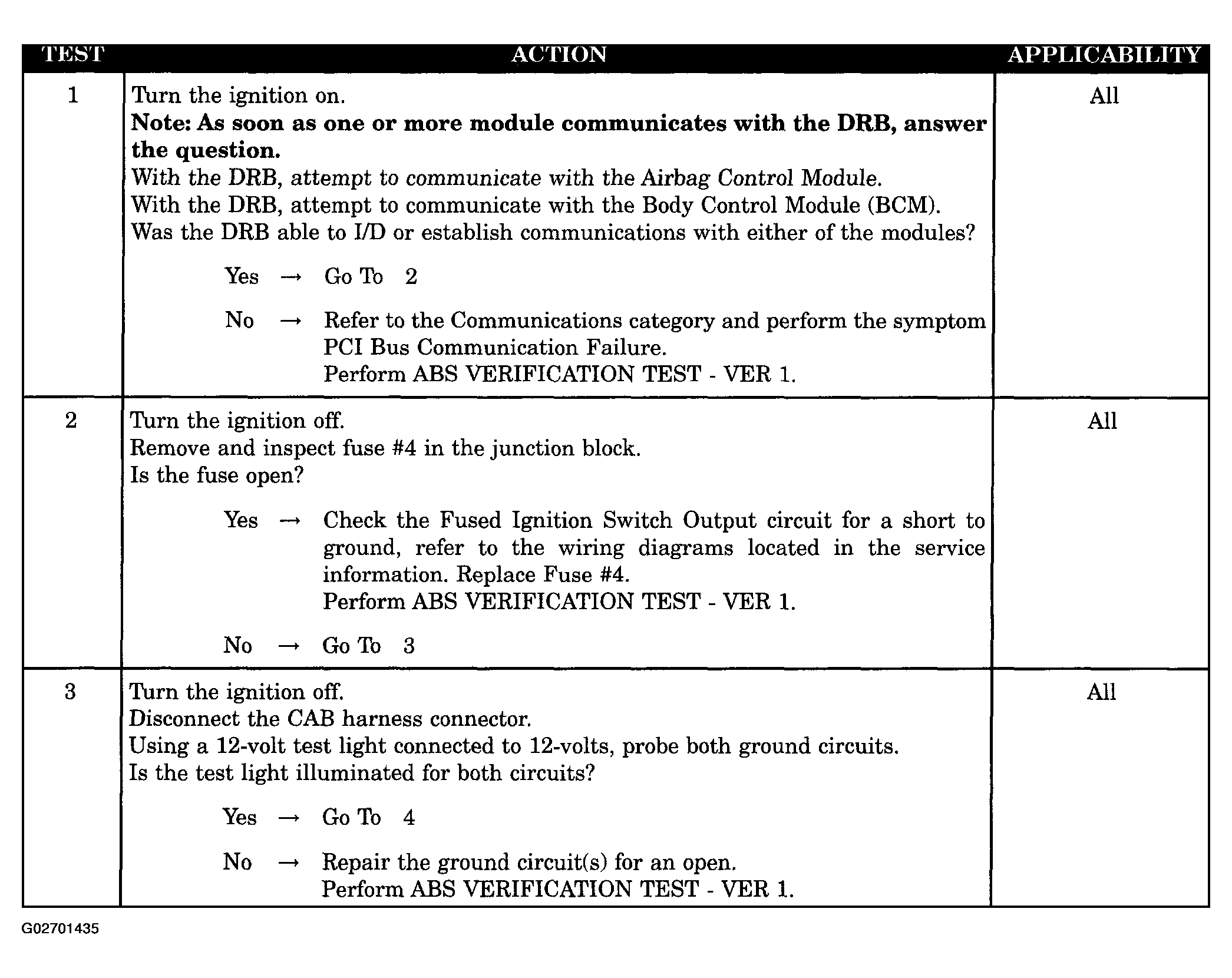

Fig 1: No Response From Controller Antilock Brake Diagnostic Procedure (1 Of 2)
G02701435Courtesy of DAIMLERCHRYSLER CORP.

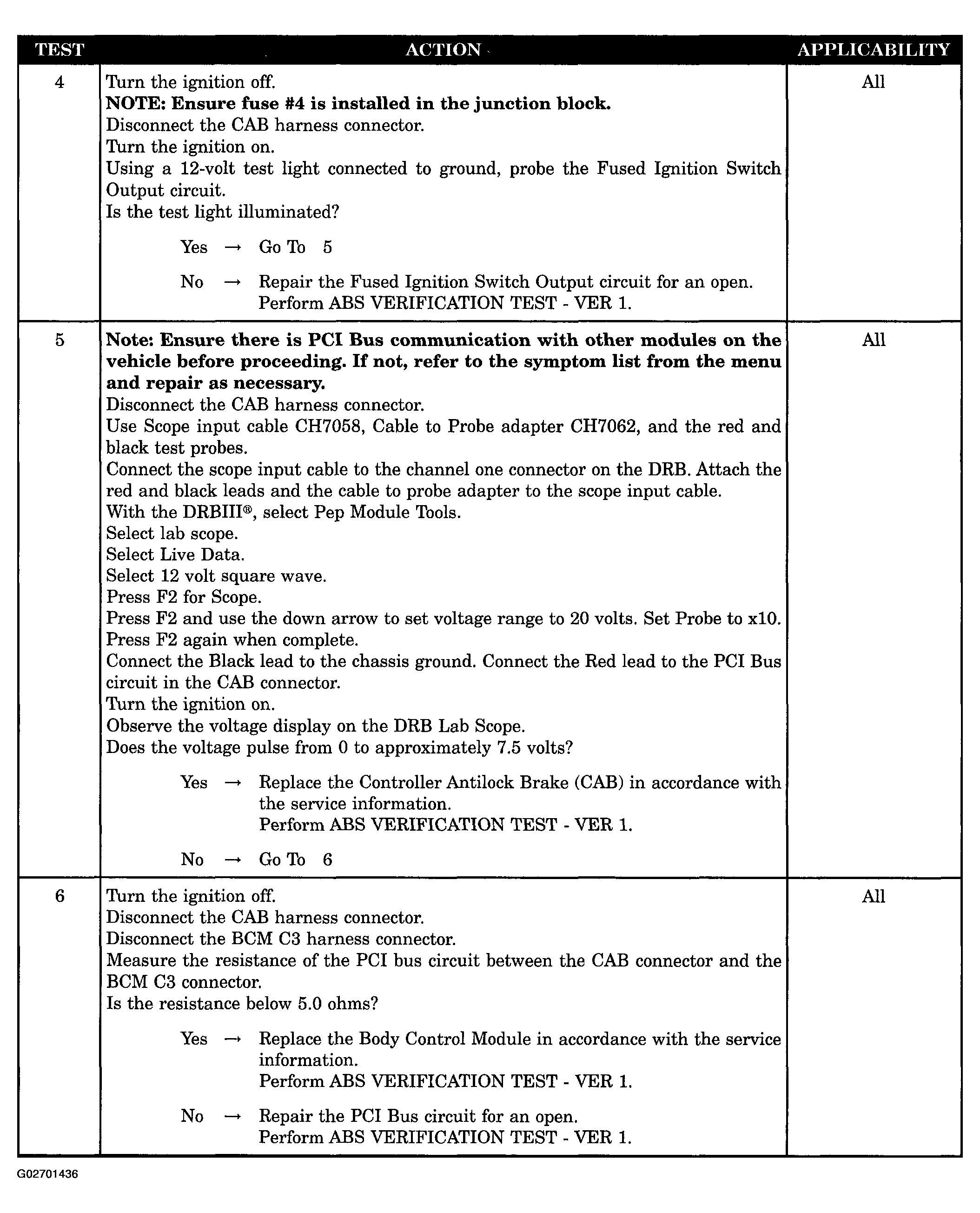

Fig 2: No Response From Controller Antilock Brake Diagnostic Procedure (2 Of 2)
G02701436Courtesy of DAIMLERCHRYSLER CORP.
