Chime Sounds With Driver Seat Belt Fastened Diagnostic Procedure

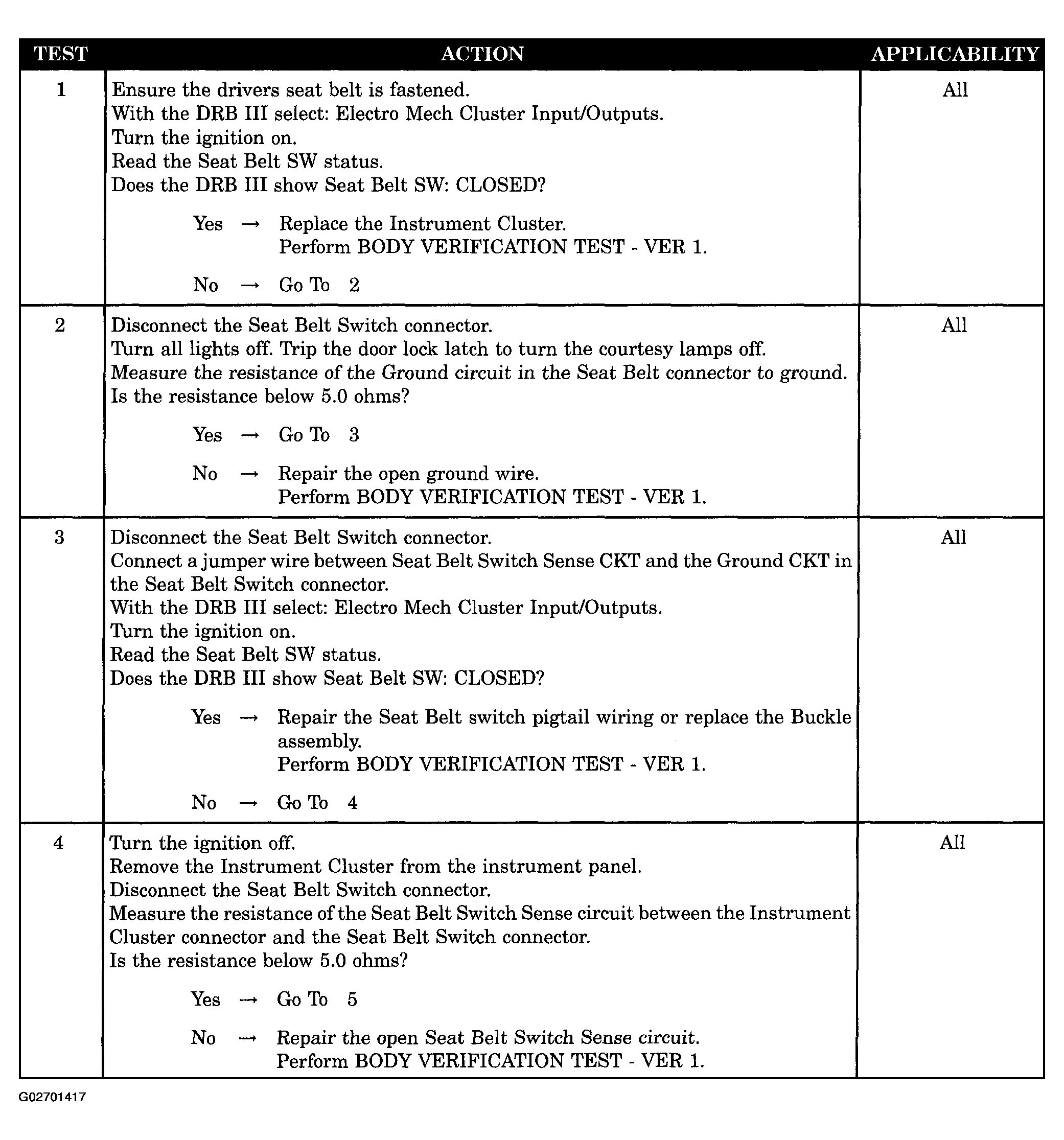

Fig 1: Chime Sounds With Driver Seat Belt Fastened Diagnostic Procedure (1 Of 2)
G02701417Courtesy of DAIMLERCHRYSLER CORP.

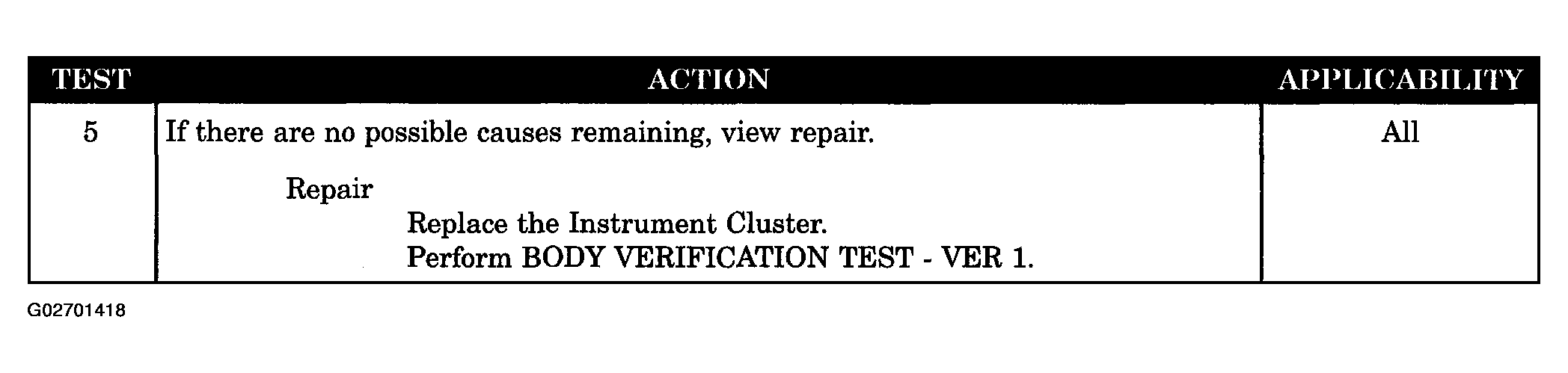

Fig 2: Chime Sounds With Driver Seat Belt Fastened Diagnostic Procedure (2 Of 2)
G02701418Courtesy of DAIMLERCHRYSLER CORP.
