Chime Inoperative With Key-In Ignition And Driver Door Open Diagnostic Procedure

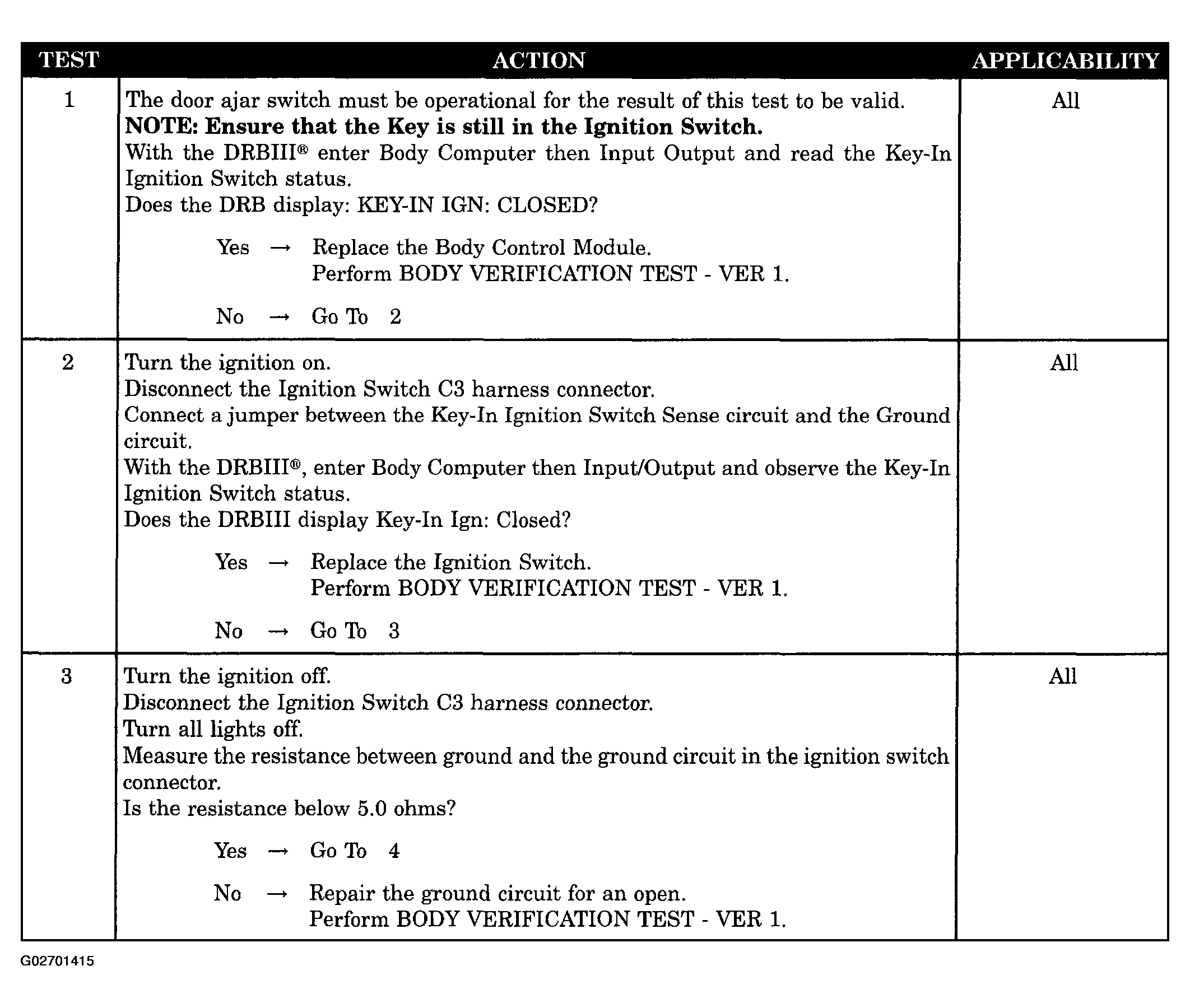

Fig 1: Chime Inoperative With Key-In Ignition And Driver Door Open Diagnostic Procedure (1 Of 2)
G02701415Courtesy of DAIMLERCHRYSLER CORP.

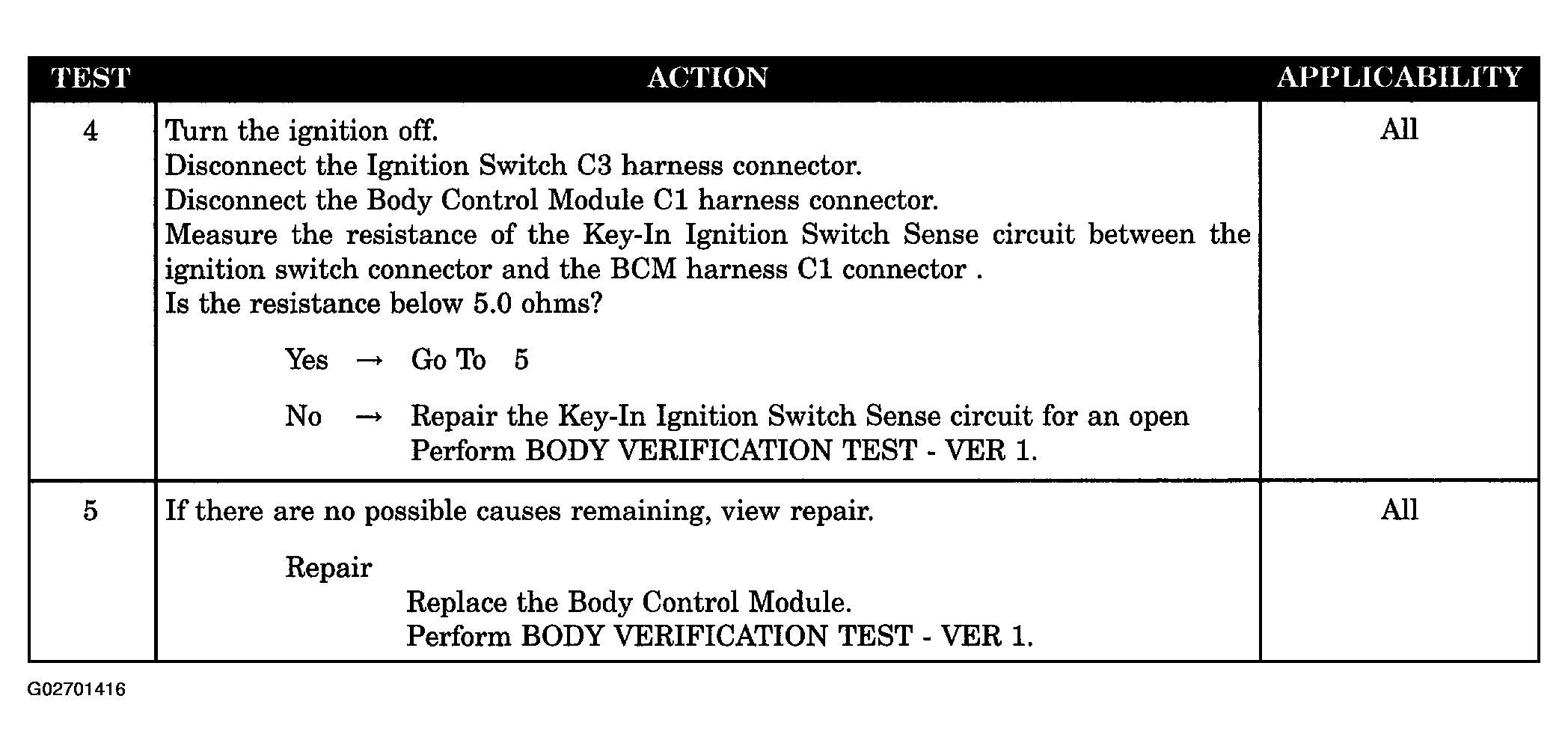

Fig 2: Chime Inoperative With Key-In Ignition And Driver Door Open Diagnostic Procedure (2 Of 2)
G02701416Courtesy of DAIMLERCHRYSLER CORP.
