Power Amp Shutdown - Base Audio System Diagnostic Procedure

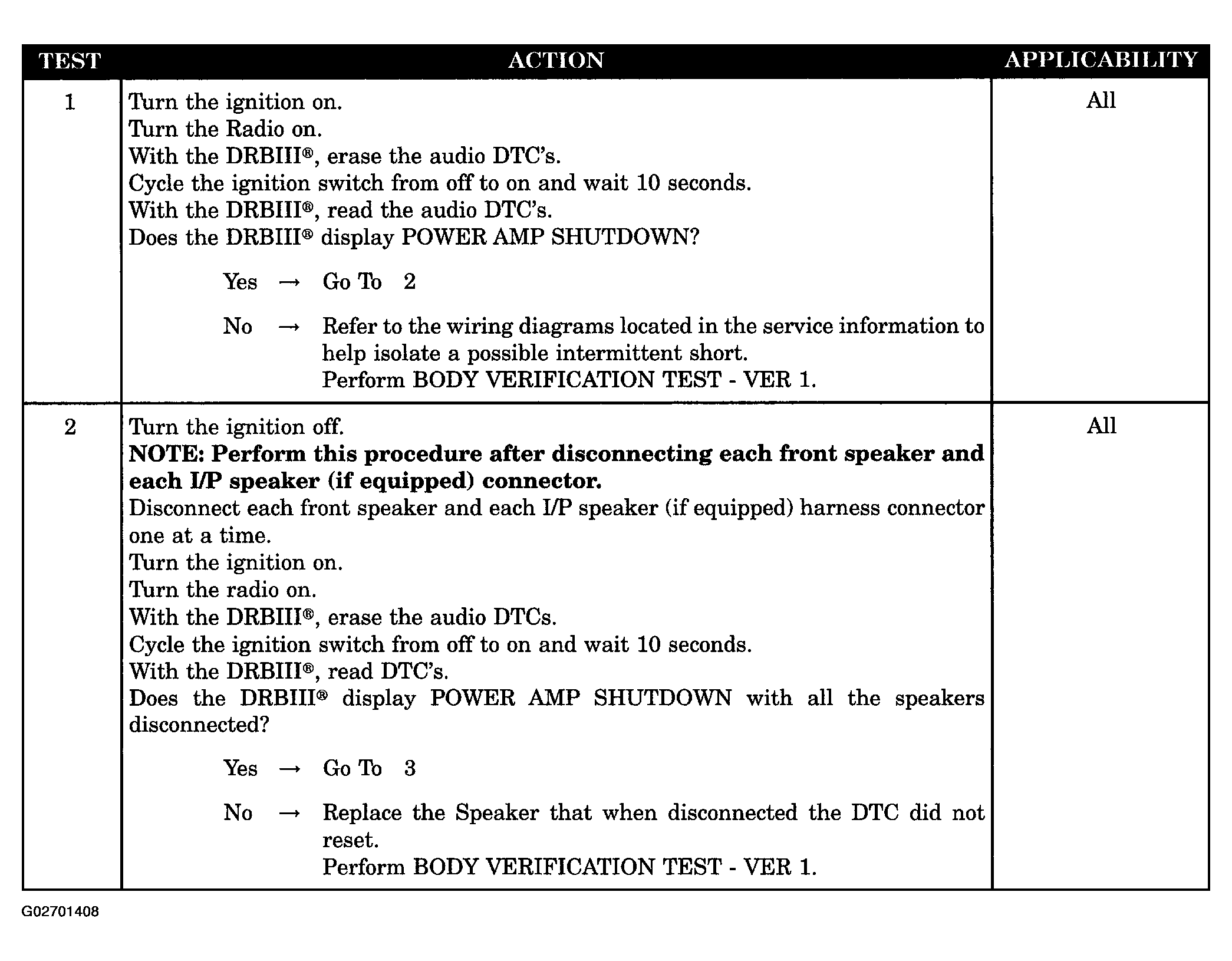

Fig 1: Power Amp Shutdown - Base Audio System Diagnostic Procedure (1 Of 2)
G02701408Courtesy of DAIMLERCHRYSLER CORP.

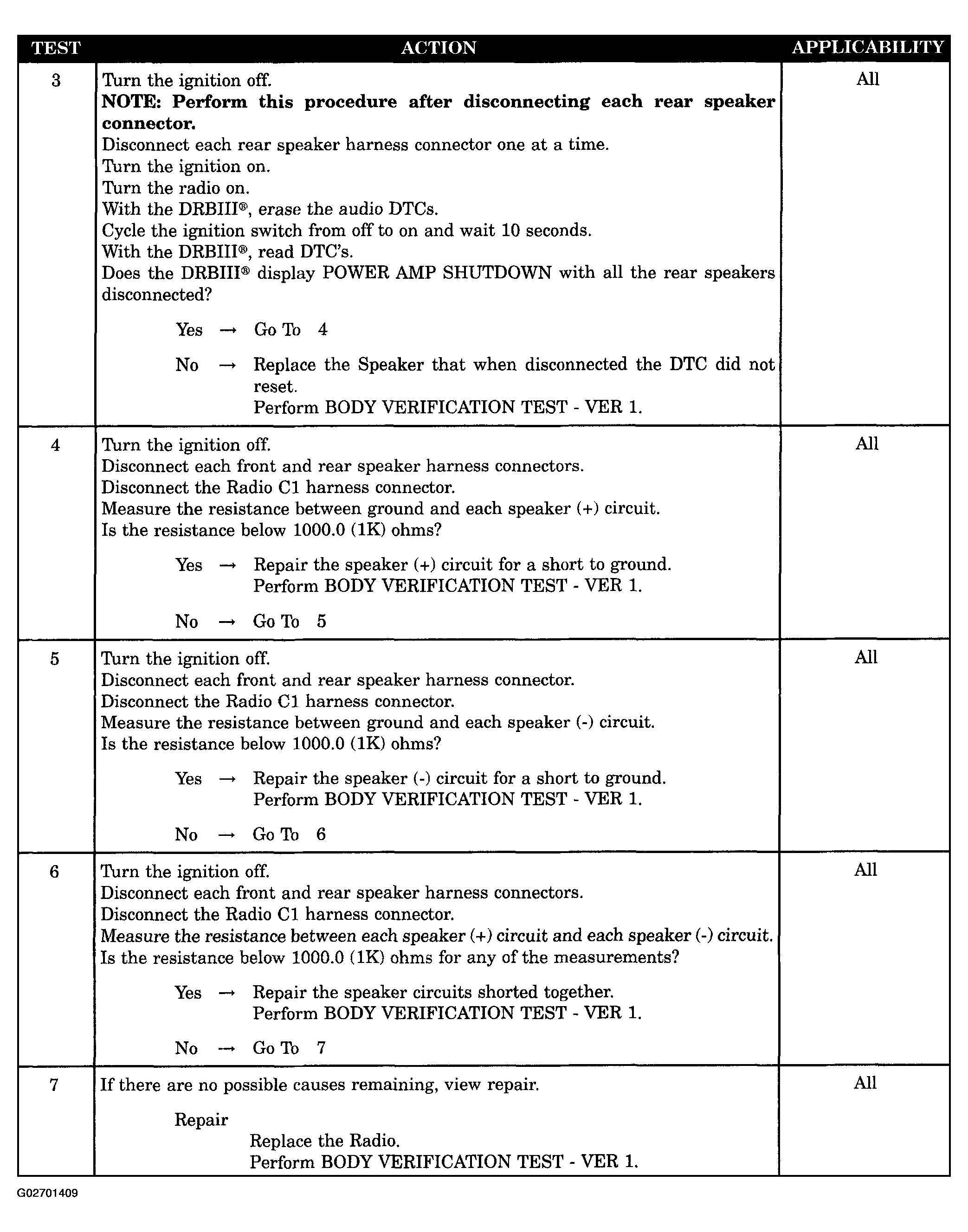

Fig 2: Power Amp Shutdown - Base Audio System Diagnostic Procedure (2 Of 2)
G02701409Courtesy of DAIMLERCHRYSLER CORP.
