All Outputs Short - Premium Audio System Diagnostic Procedure

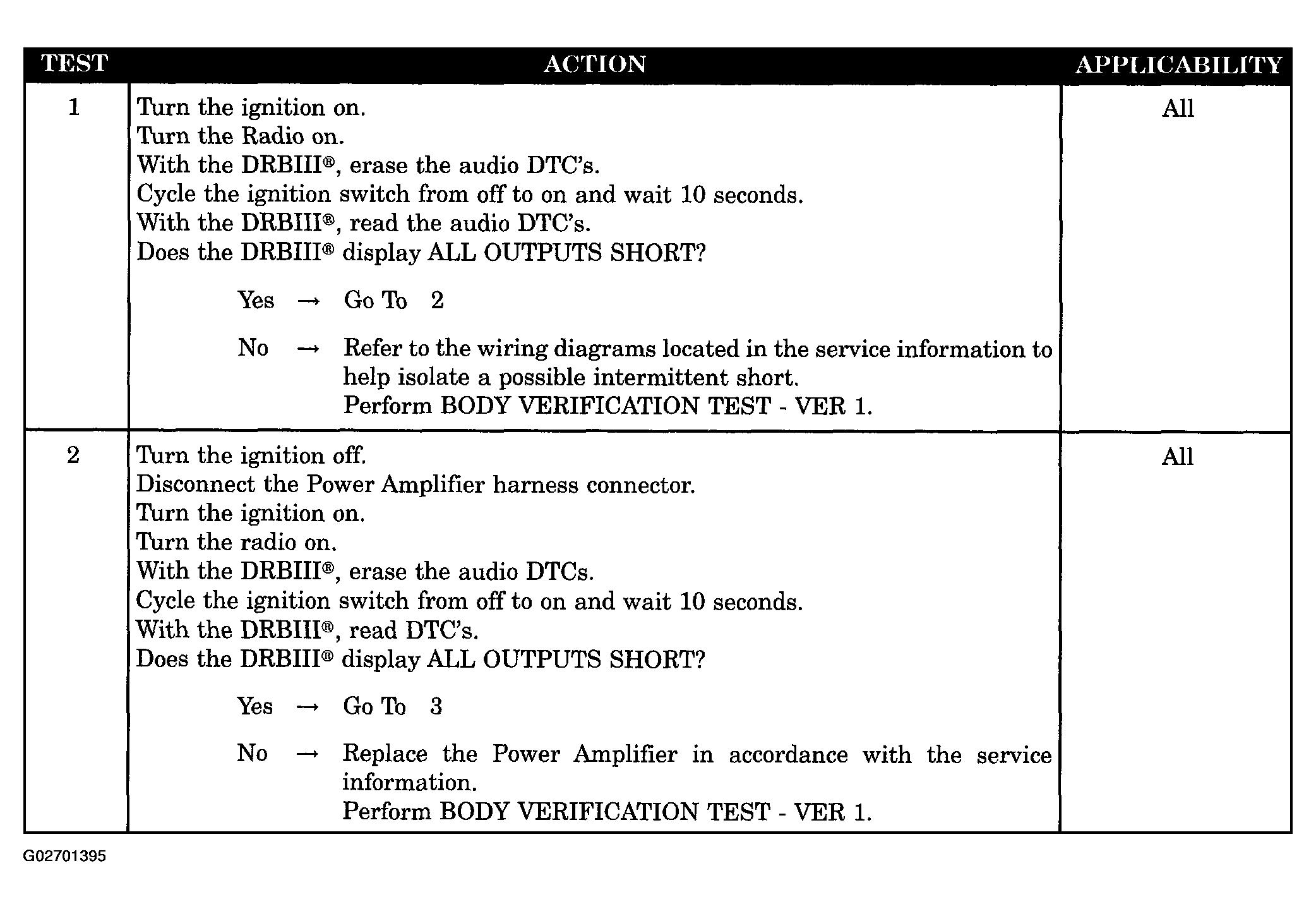

Fig 1: All Outputs Short - Premium Audio System Diagnostic Procedure (1 Of 2)
G02701395Courtesy of DAIMLERCHRYSLER CORP.

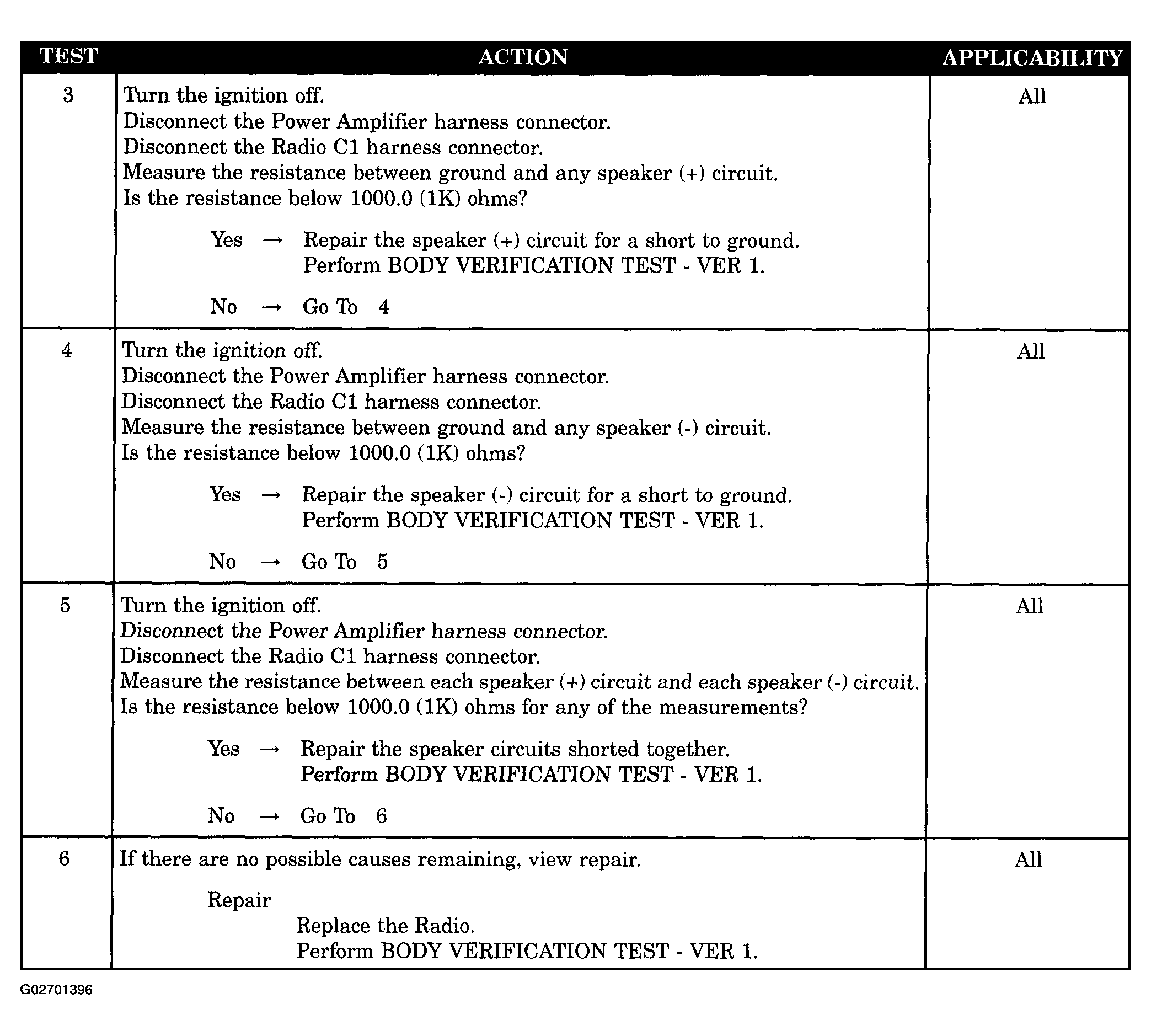

Fig 2: All Outputs Short - Premium Audio System Diagnostic Procedure (2 Of 2)
G02701396Courtesy of DAIMLERCHRYSLER CORP.
