Passenger Squib 2 Short To Battery Diagnostic Procedure

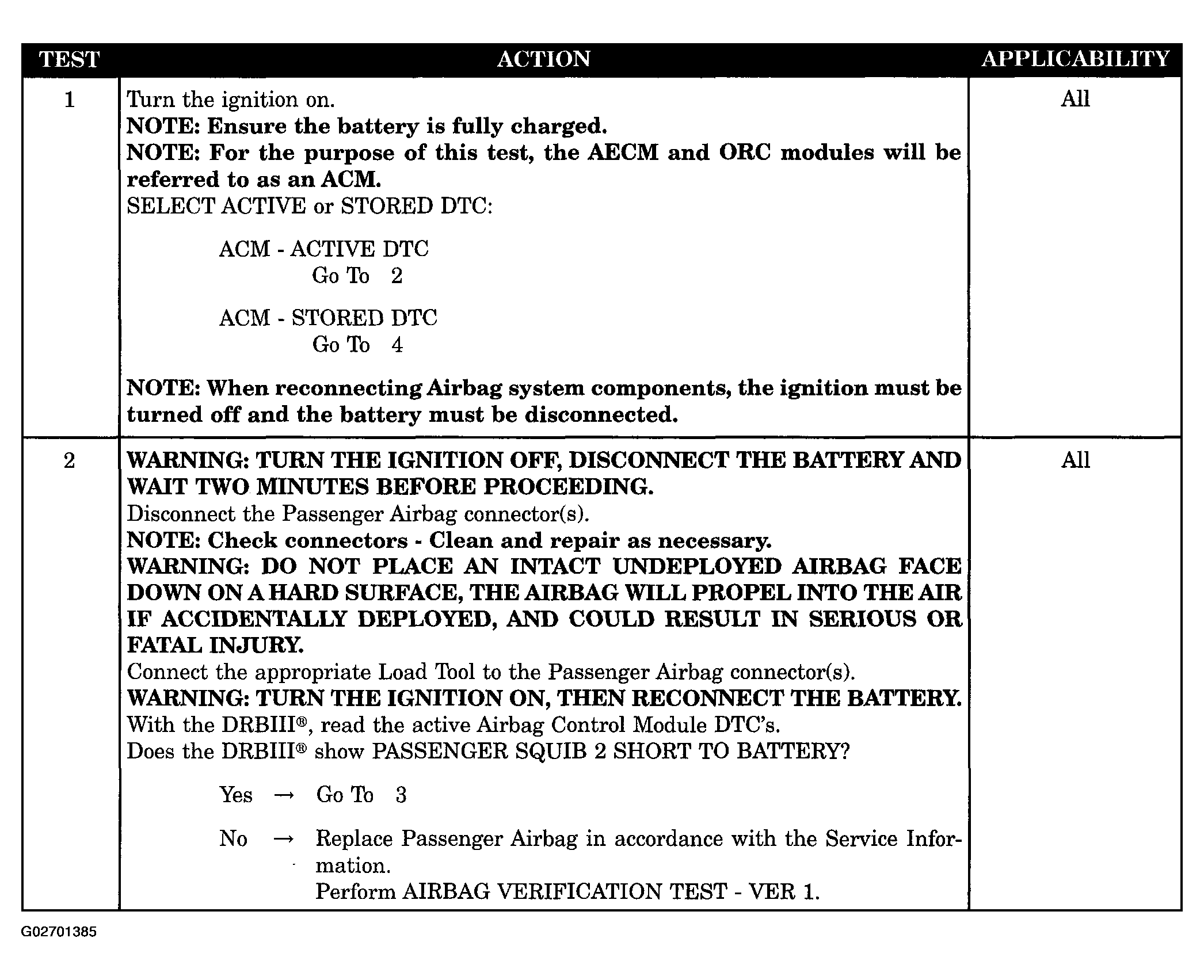

Fig 1: Passenger Squib 2 Short To Battery Diagnostic Procedure (1 Of 2)
G02701385Courtesy of DAIMLERCHRYSLER CORP.

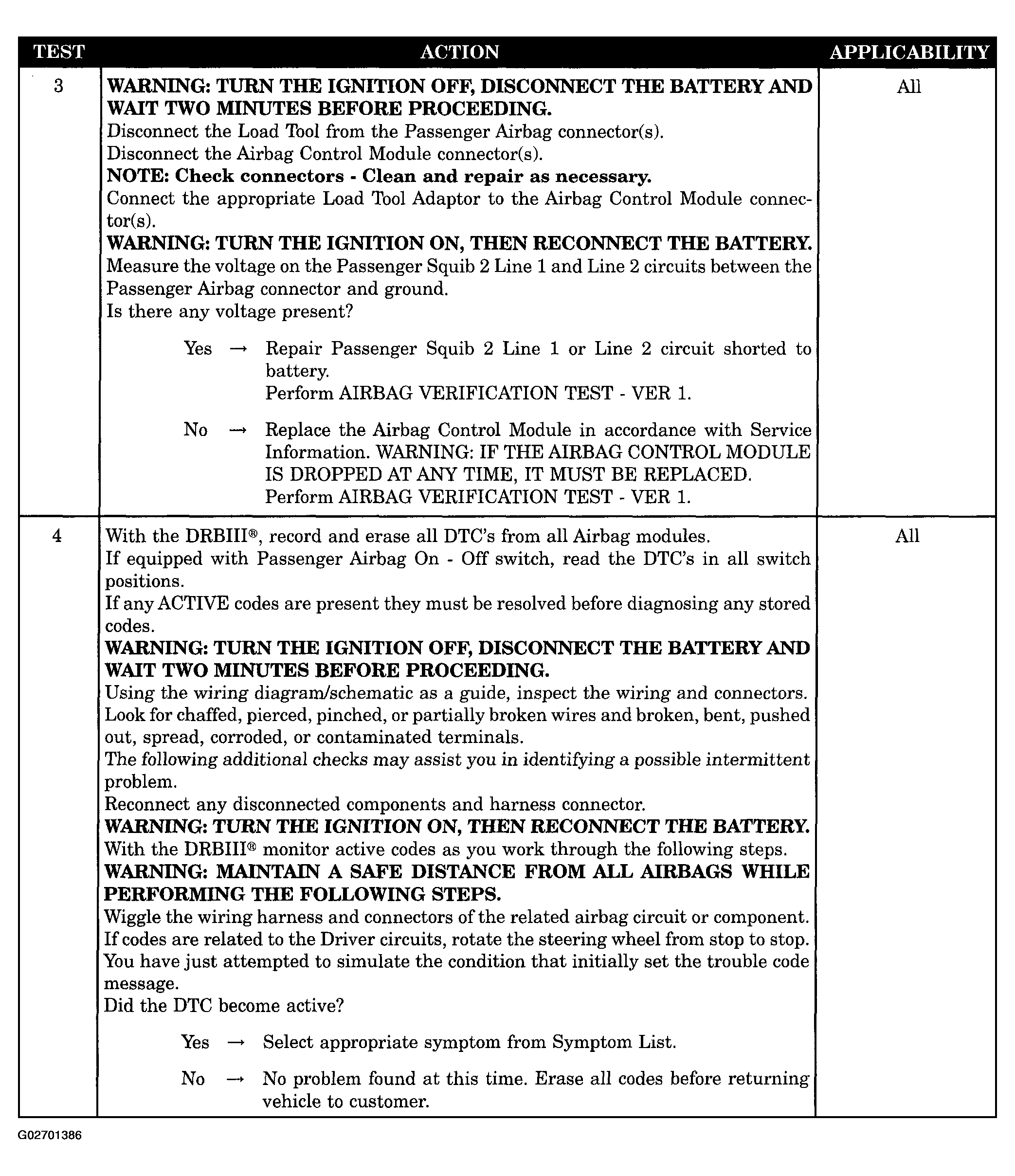

Fig 2: Passenger Squib 2 Short To Battery Diagnostic Procedure (2 Of 2)
G02701386Courtesy of DAIMLERCHRYSLER CORP.
