Passenger Squib 2 Circuit Short Diagnostic Procedure

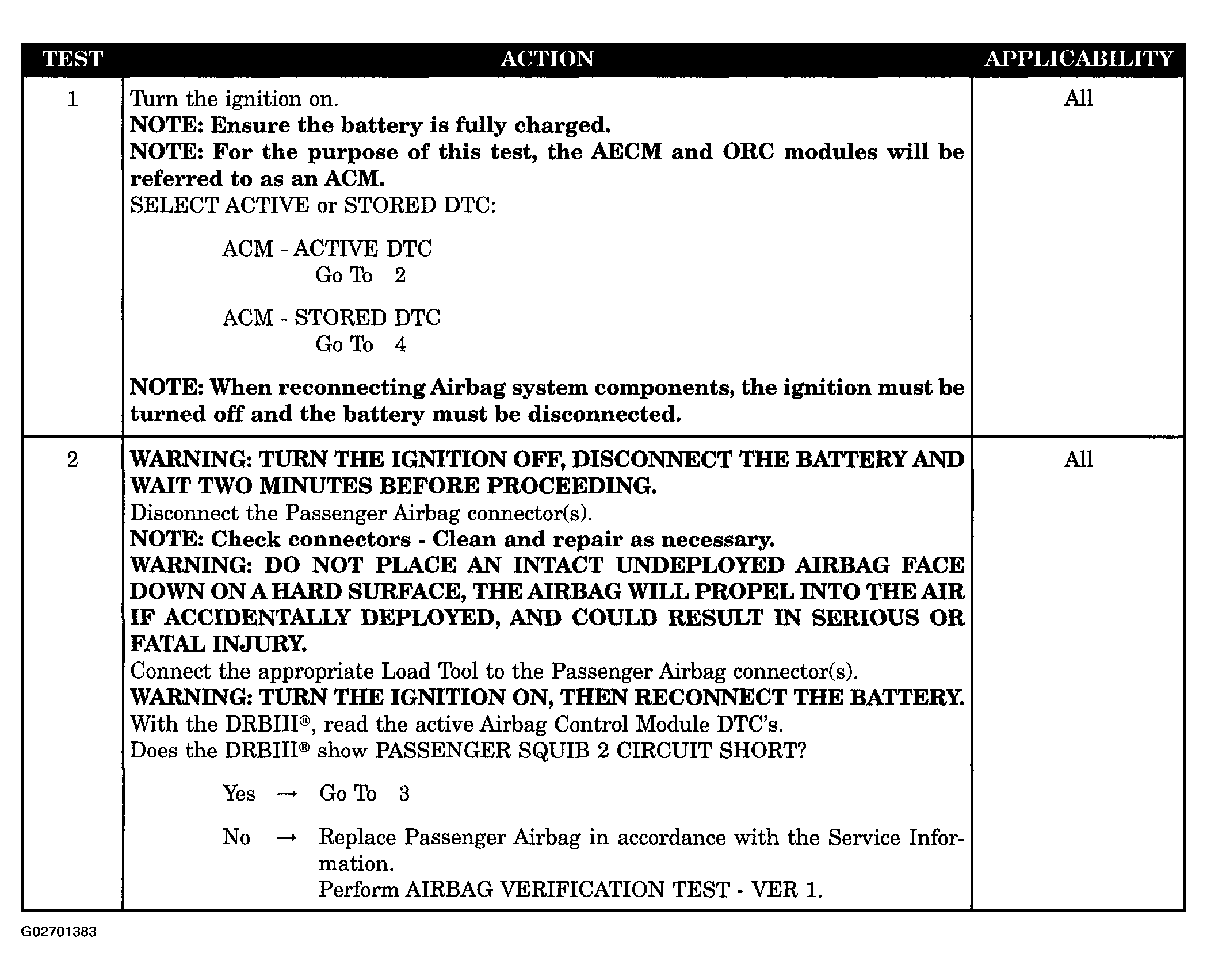

Fig 1: Passenger Squib 2 Circuit Short Diagnostic Procedure (1 Of 2)
G02701383Courtesy of DAIMLERCHRYSLER CORP.

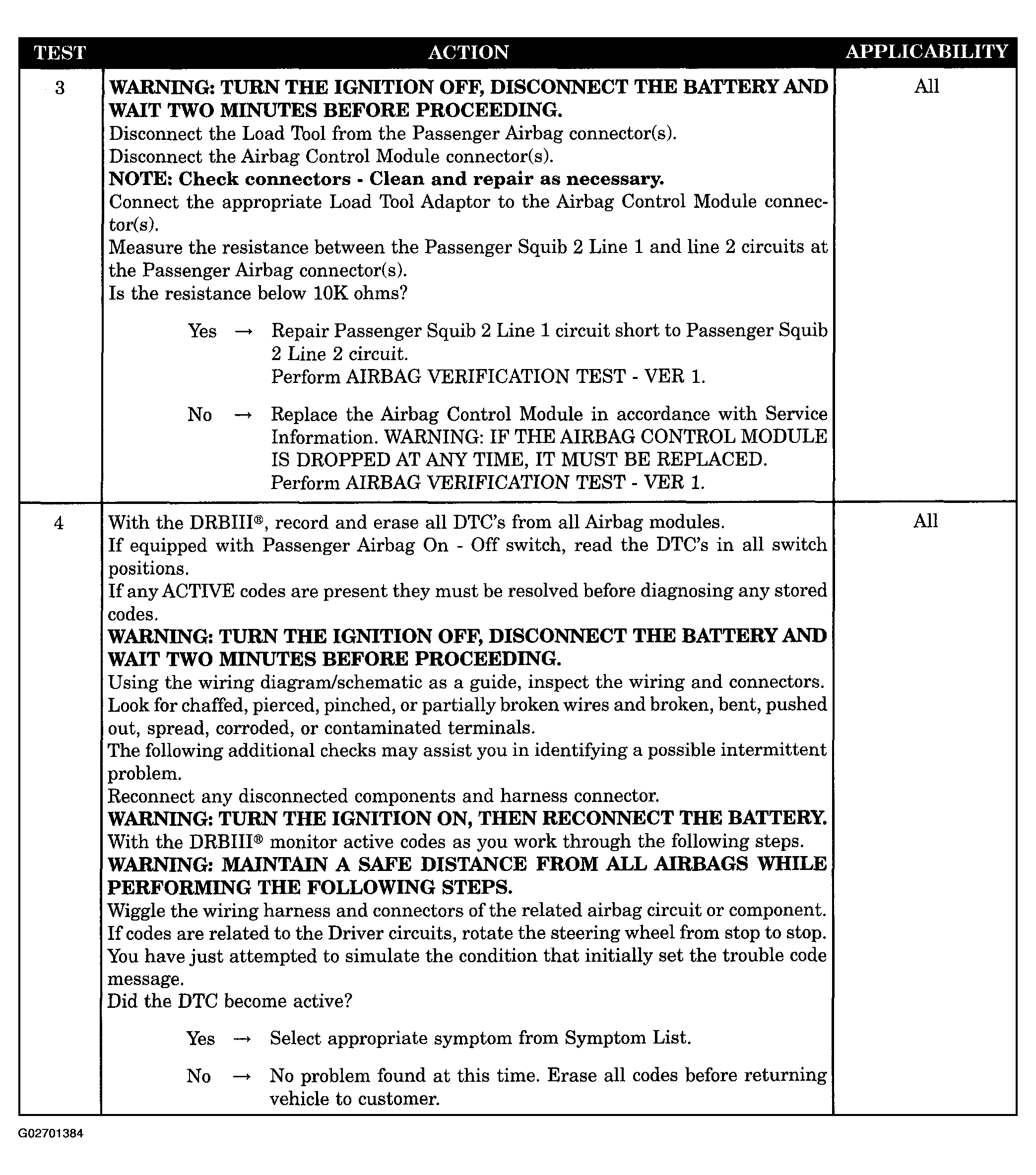

Fig 2: Passenger Squib 2 Circuit Short Diagnostic Procedure (2 Of 2)
G02701384Courtesy of DAIMLERCHRYSLER CORP.
