Passenger Curtain Squib Circuit Open Diagnostic Procedure

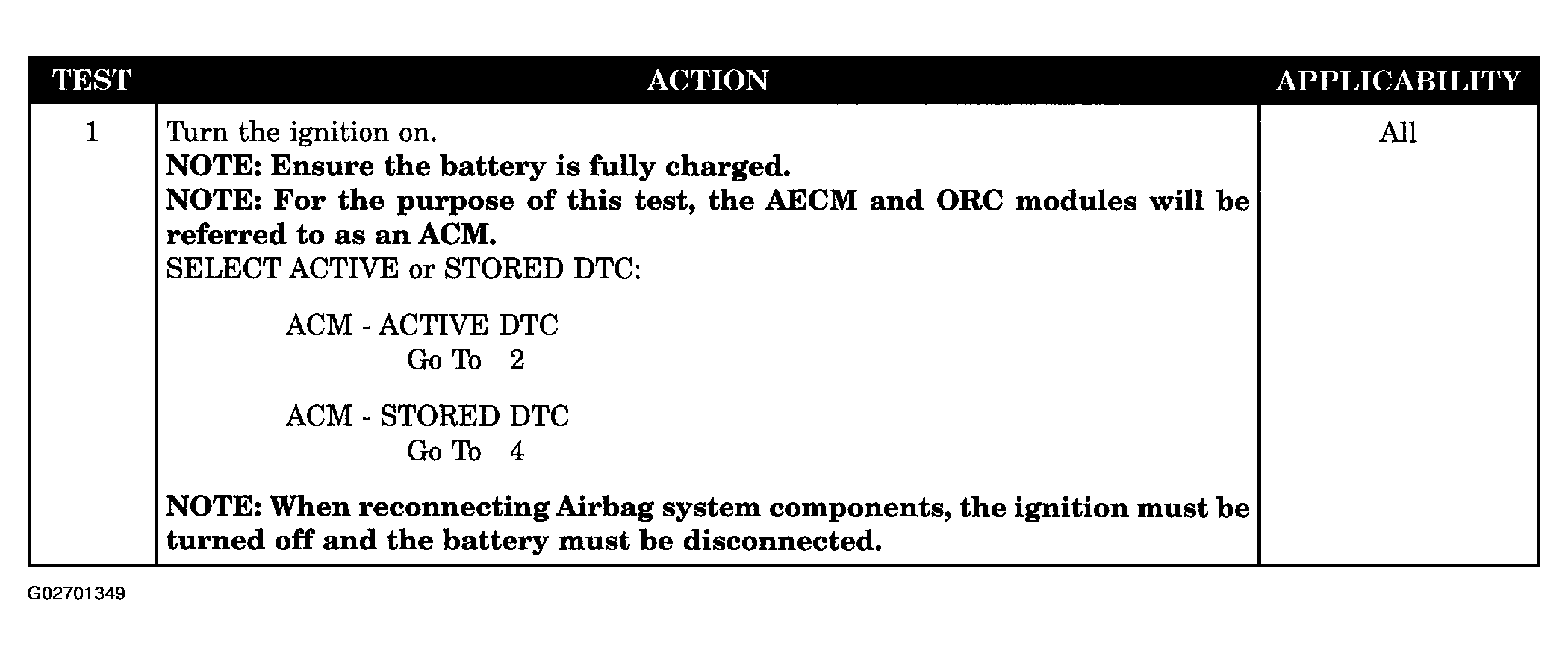

Fig 1: Passenger Curtain Squib Circuit Open Diagnostic Procedure (1 Of 3)

Courtesy of DAIMLERCHRYSLER CORP.

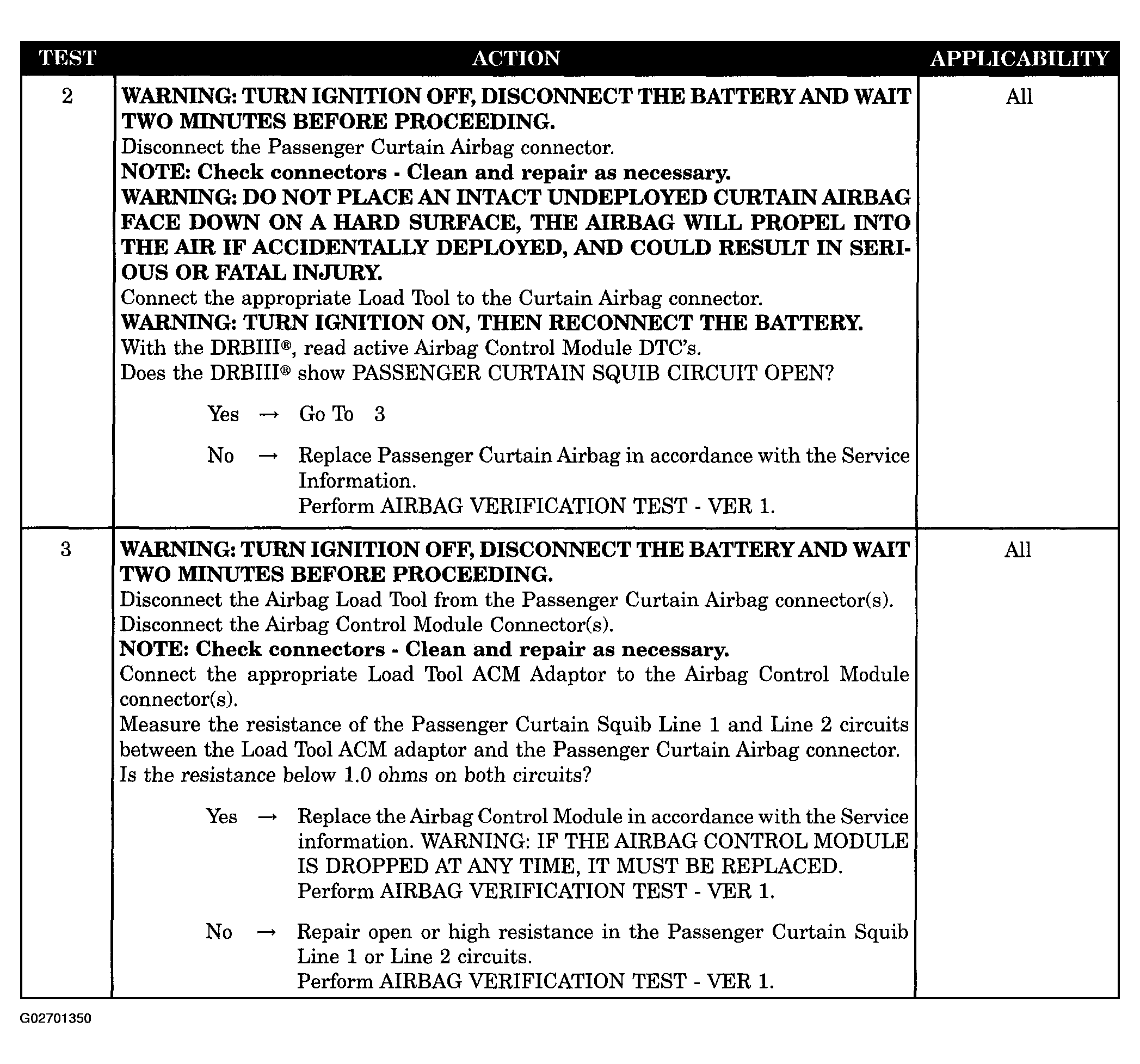

Fig 2: Passenger Curtain Squib Circuit Open Diagnostic Procedure (2 Of 3)

Courtesy of DAIMLERCHRYSLER CORP.

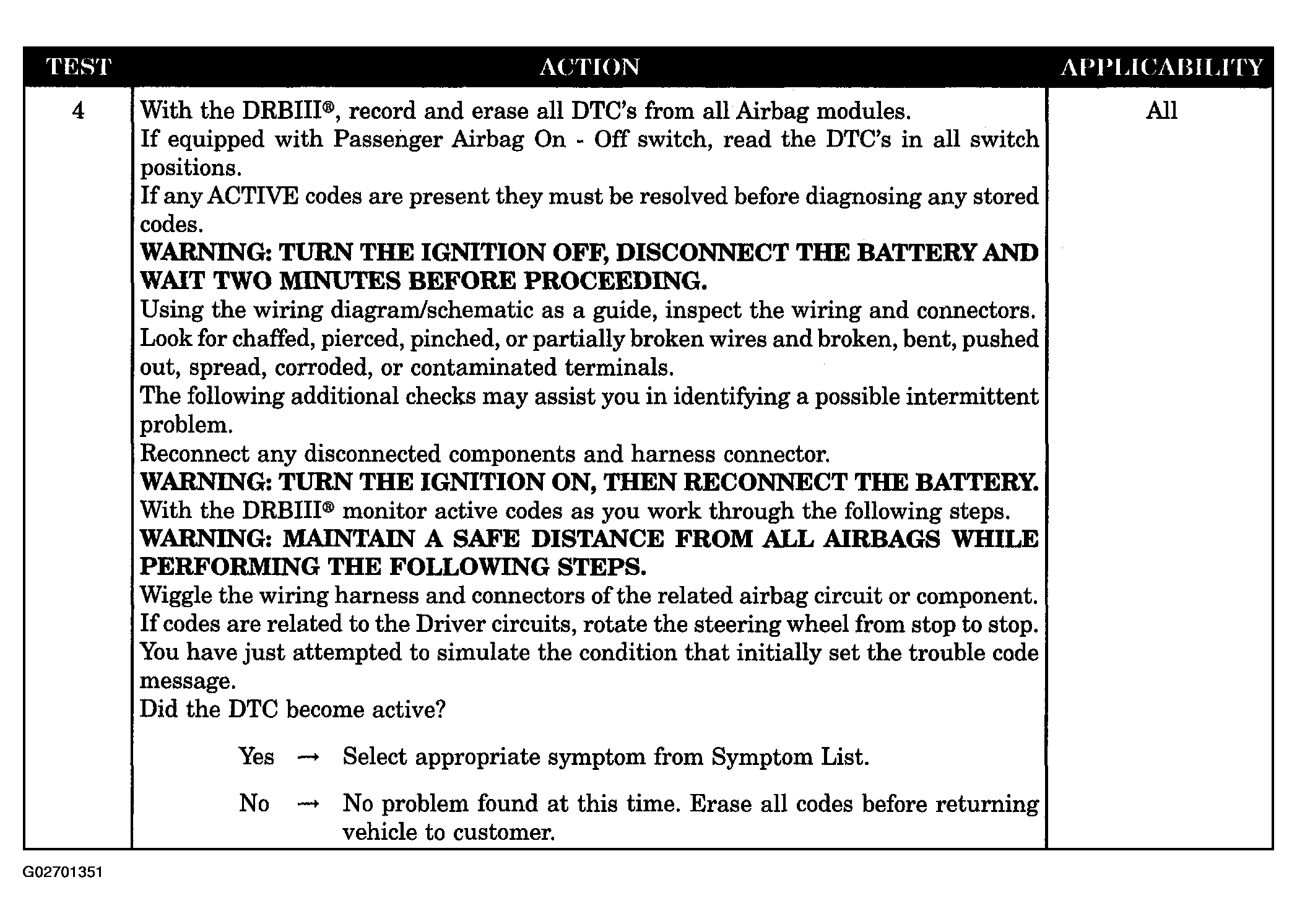

Fig 3: Passenger Curtain Squib Circuit Open Diagnostic Procedure (3 Of 3)

Courtesy of DAIMLERCHRYSLER CORP.
